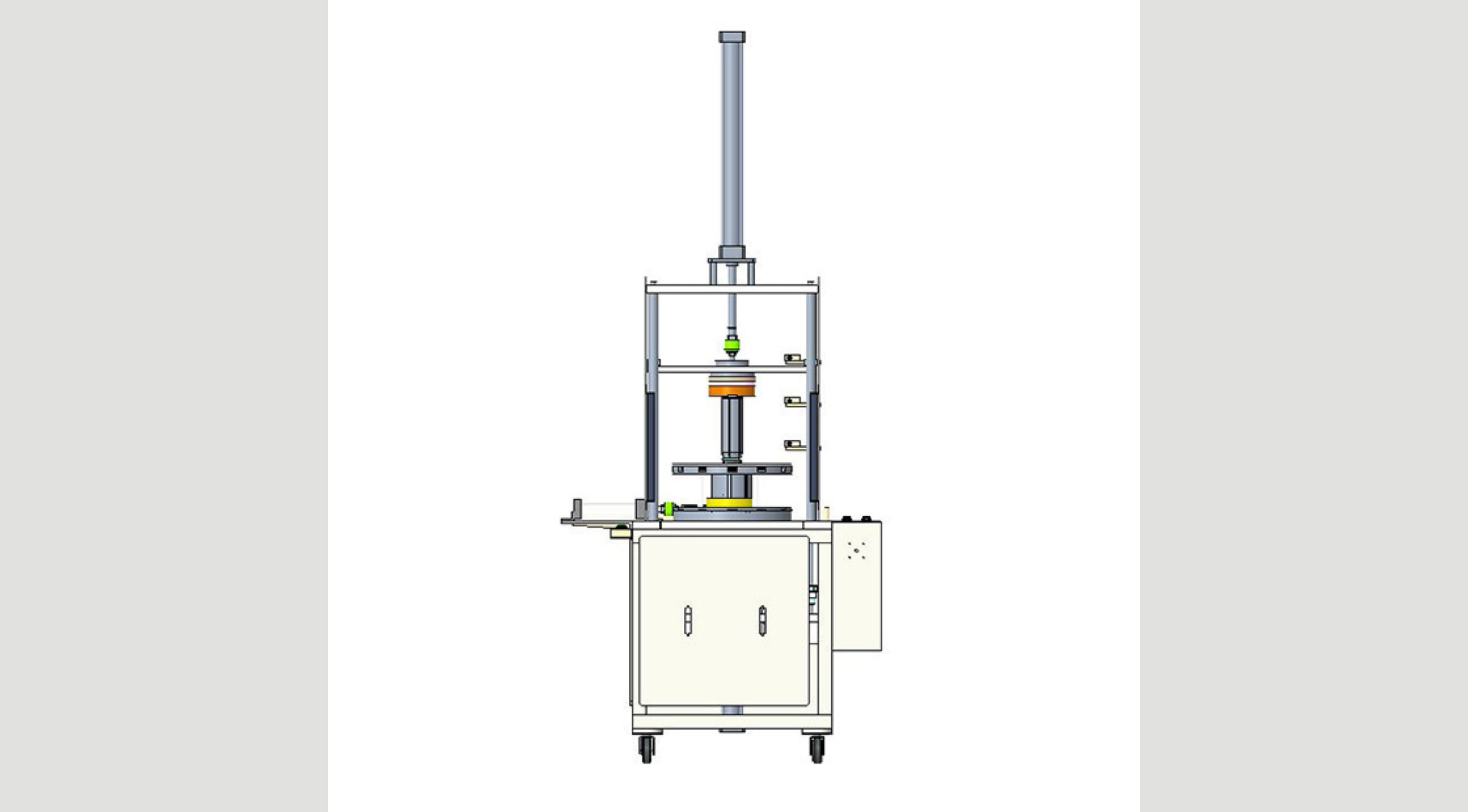

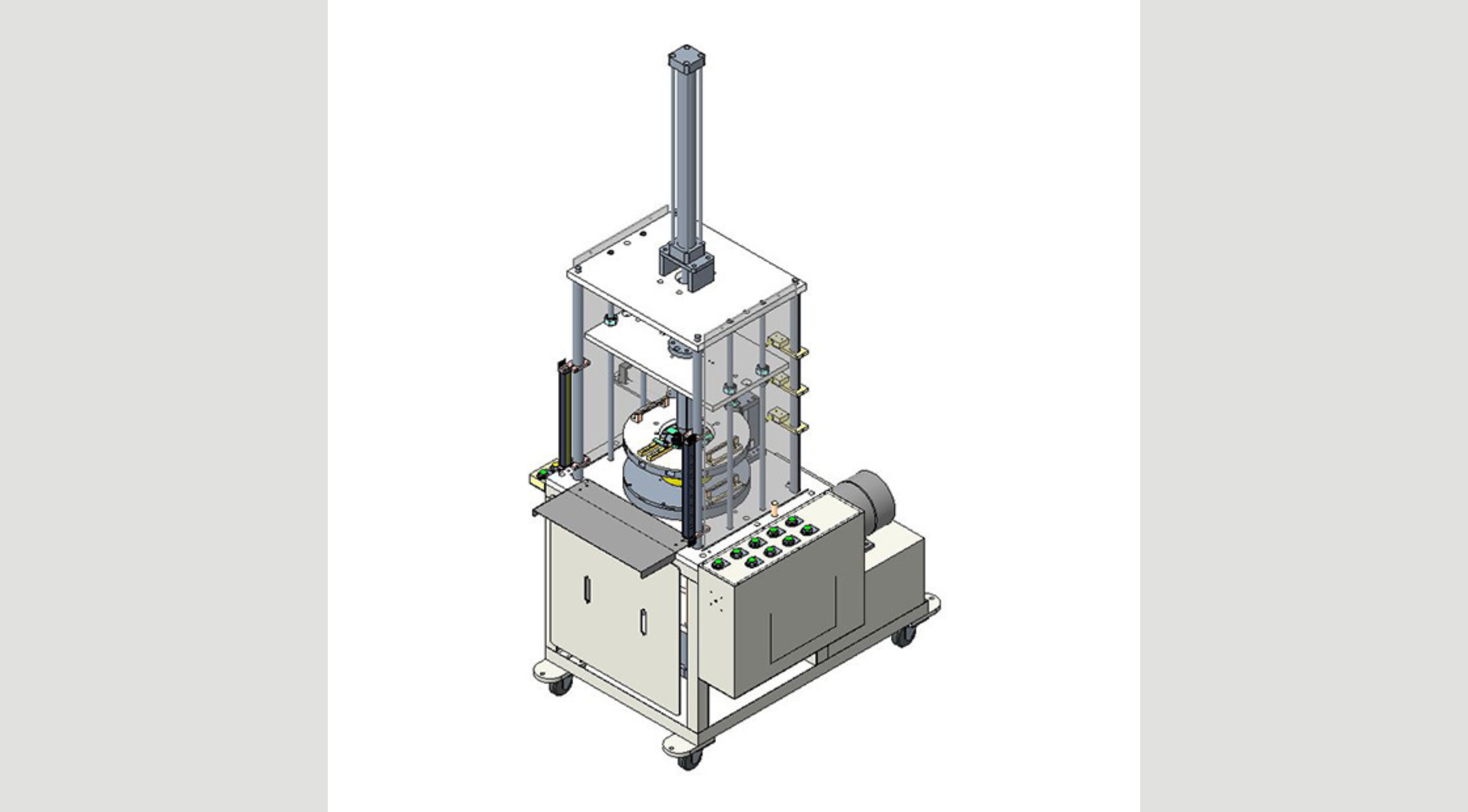

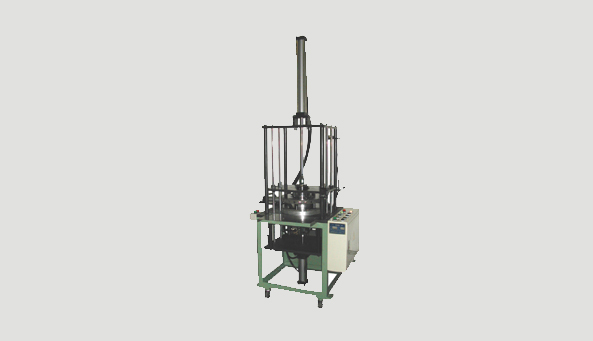

HYDRAULIC STATOR COIL 2ND FORMING MACHINE (CUFF SUPPORT) GMW F-2B

MODEL: GMWF-2B

Technical Information

This machine is designed to shape the coil following the step of coil insertion because of the unique design of the model, a perfect appearance can be achieved after shaping.

Specification GMW F-12B
Stator OD/ID Limit (mm)

IDØ60-120

ODØ160 max.
Stator Core Length Limit (mm) 20-120
Cycle Time (sec) <30 sec/time
Floor Area (W*L*H) (cm)  115*135*260
Machine Weight (Kg) 500 kg
Main Operation Power Source (KW) 2.3
Max. Power Consumption (KW) 3.9
Pneumatic Source (Kg/cm²) NA
Use voltage Can be customized according to the voltage used in each country
