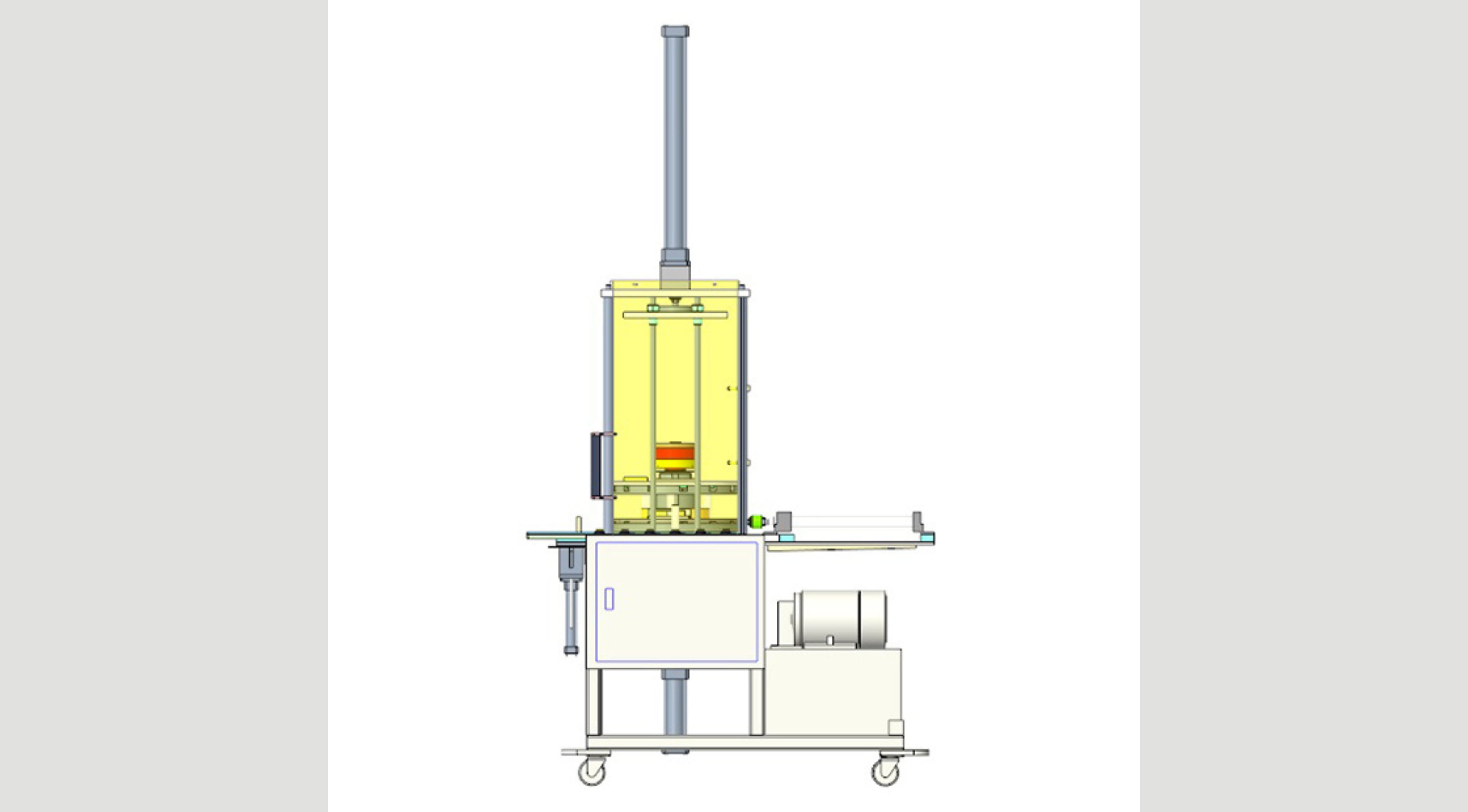

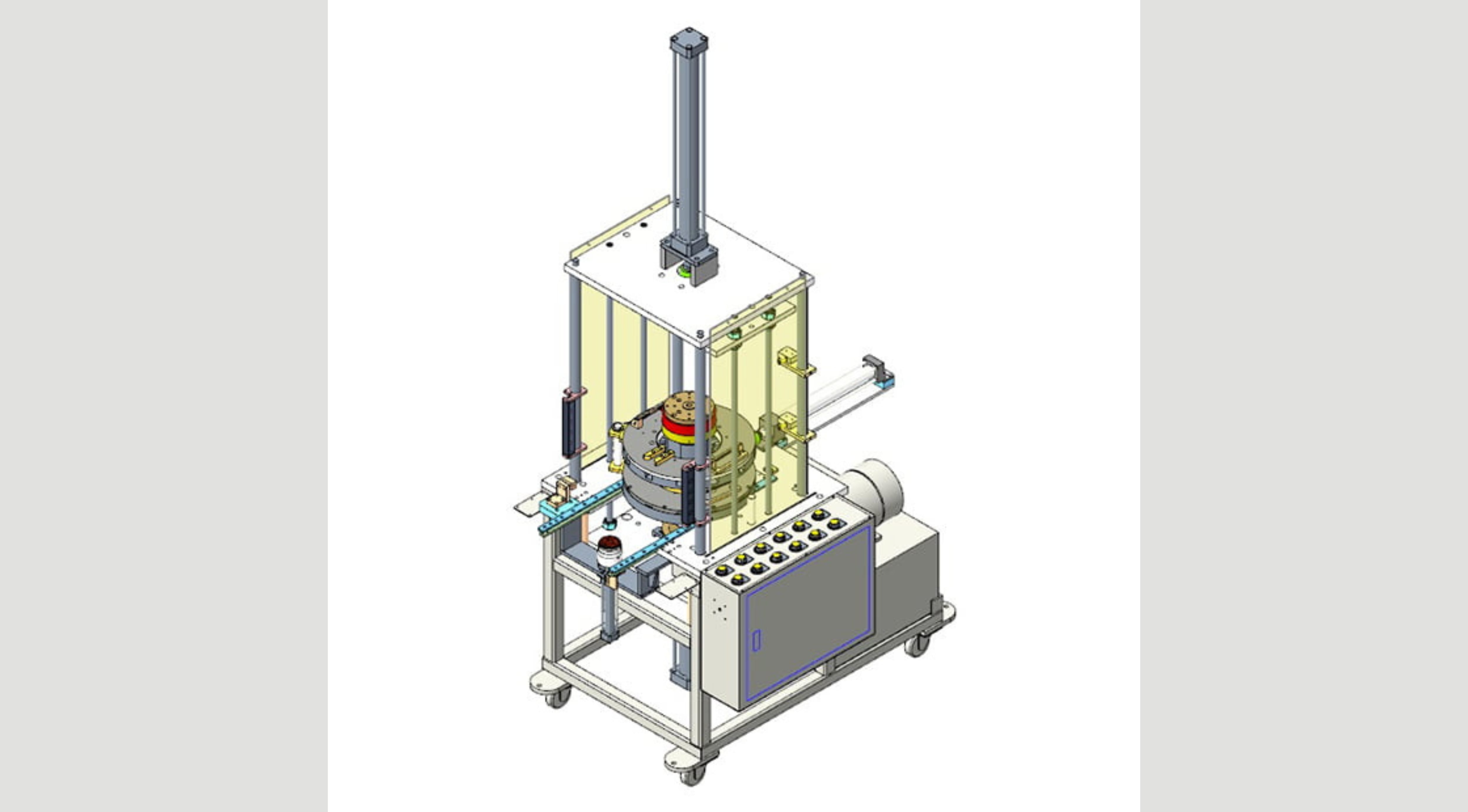

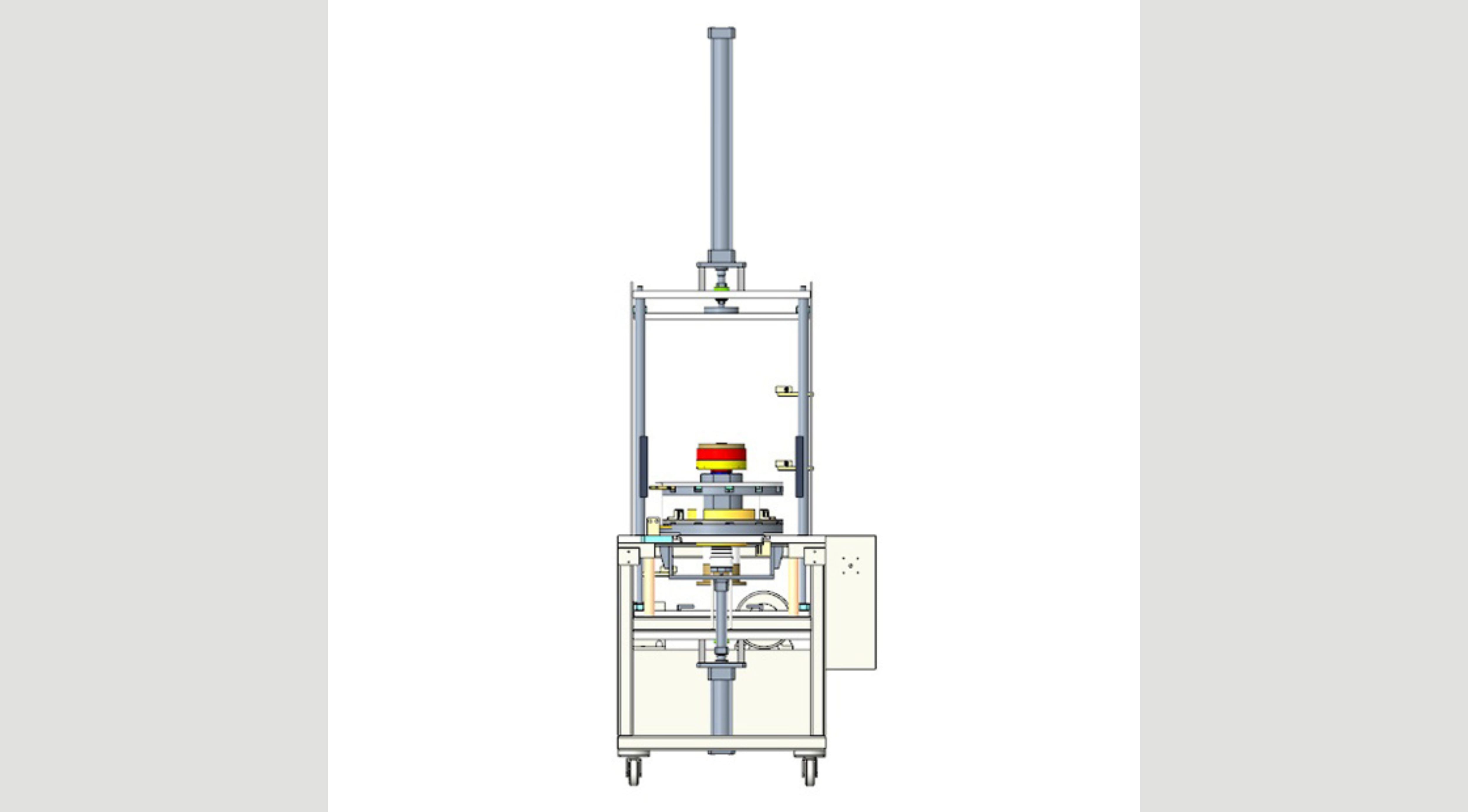

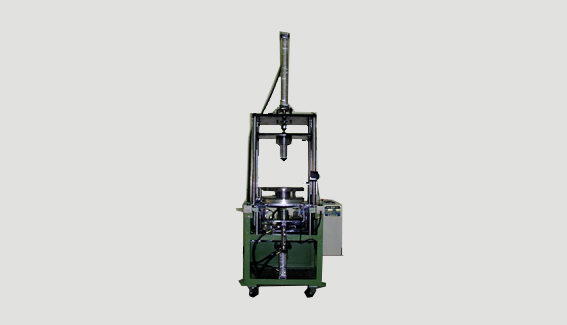

Introducing the Hydraulic Stator Coil Interphase Forming Machine (Cuff Support), a state-of-the-art solution for efficient and precise interphase forming of electric motor stators. Sometimes, inserting coil & wedge must be completed twice or more. For this purpose, we specially design this machine. After first insertion is completed, use this machine to make slots space for next coil & wedge insertion needed.
| Specification | GMW F-2H |
| Stator OD/ID Limit (mm) | Ø50-120 |
| Stator Core Length Limit (mm) | 60-160 |
| Cycle Time (sec) | <30 sec/time |
| Floor Area (W*L*H) (cm) | 90*140*260 |
| Machine Weight (Kg) | 500 kg |
| Main Operation Power Source (KW) | 2.3 |
| Max. Power Consumption (KW) | 3.9 |
| Pneumatic Source (Kg/cm²) | NA |
| Use voltage | Can be customized according to the voltage used in each country |
