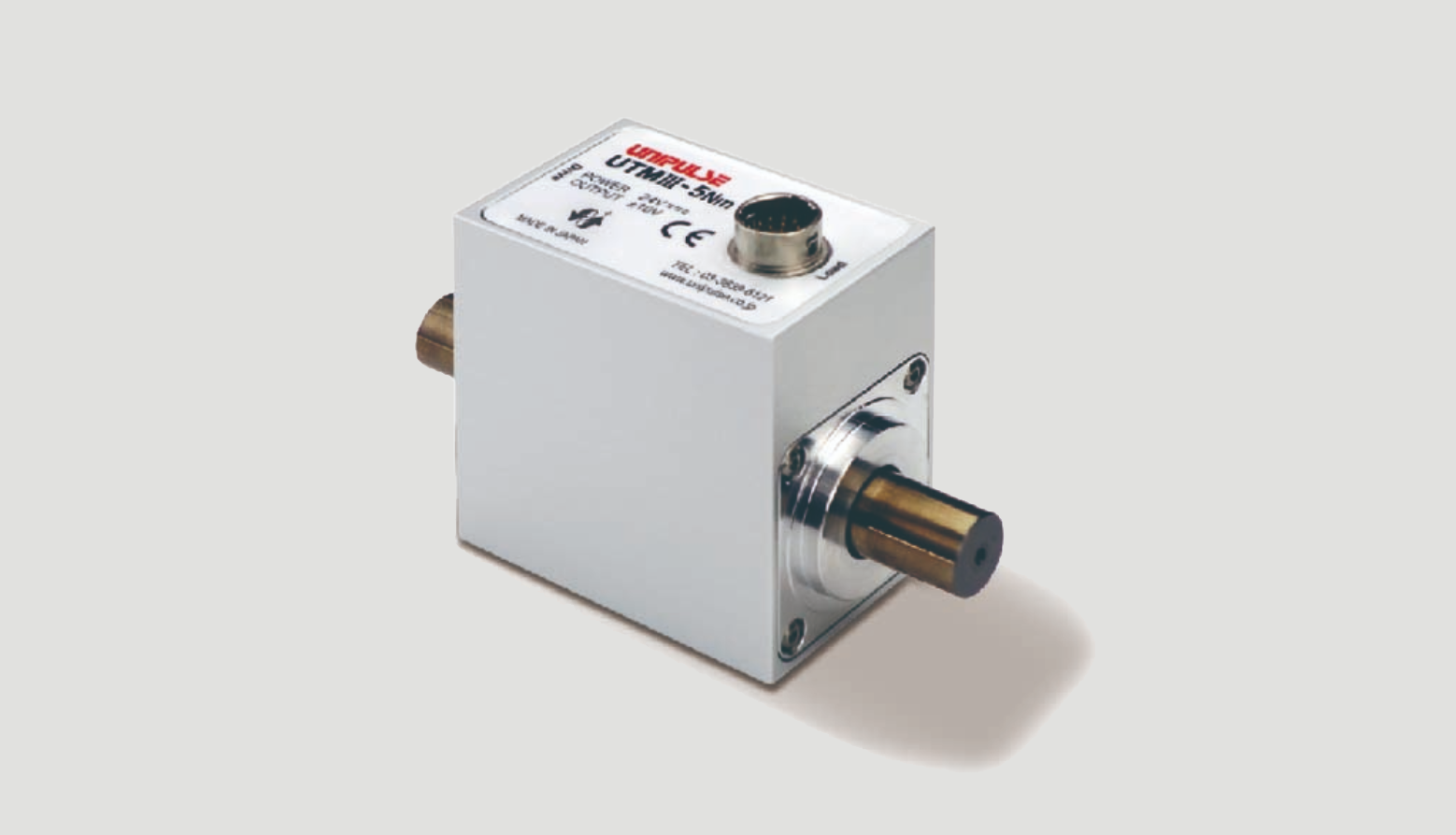

| Common specifications | |||||||||||
| Power supply | DC24V ±15％ | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Output range | ±10V DC Load resistance must be more than 5kΩ | ||||||||||
| Responsivity | 5kHz | ||||||||||
| Rotationsignal | 4 pulses per 1 rotationOpen collector Max. ratings 30V, 10mA | ||||||||||
| Digital filter | 1Hz~1kHz(Depending on settings) PASS 5kHz | ||||||||||
| Safe overload | 500%FS | ||||||||||
| Non-linearity | 0.03%FS | ||||||||||
| Hysteresis | 0.03%FS | ||||||||||
| Repeatability | 0.03%FS | ||||||||||
| Operationtemp . range | －10 to ＋50℃ | ||||||||||
| Temp. effecton ZERO | 0.01%FS/℃ | ||||||||||
| Temp. effecton span | 0.01%FS/℃ | ||||||||||
| Supplied cable | 12-core shielded cable(2m), cable end separated（Cable length is switchable to 5m（Option：UTMⅢ-L5）） | ||||||||||
| CE markingcertification | EMC directives EN61326-1,EN61326-2-3 | ||||||||||
| Encorder part specifications (RC) | |||||||||||
| Power supply | DC5 to 24V | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Consumption current | 200mA or less | ||||||||||
| Detection method | Optical encoder | ||||||||||
| Output pulse number | 3600 pulses per 1 rotation | ||||||||||
| Output phase | A, B & Z-phases | ||||||||||
| Output signal | Differential line driver signal with 90° phasedifference (RS-422A compliant) | ||||||||||
| Maximum measurablerotation speed | 5000rpm | ||||||||||
