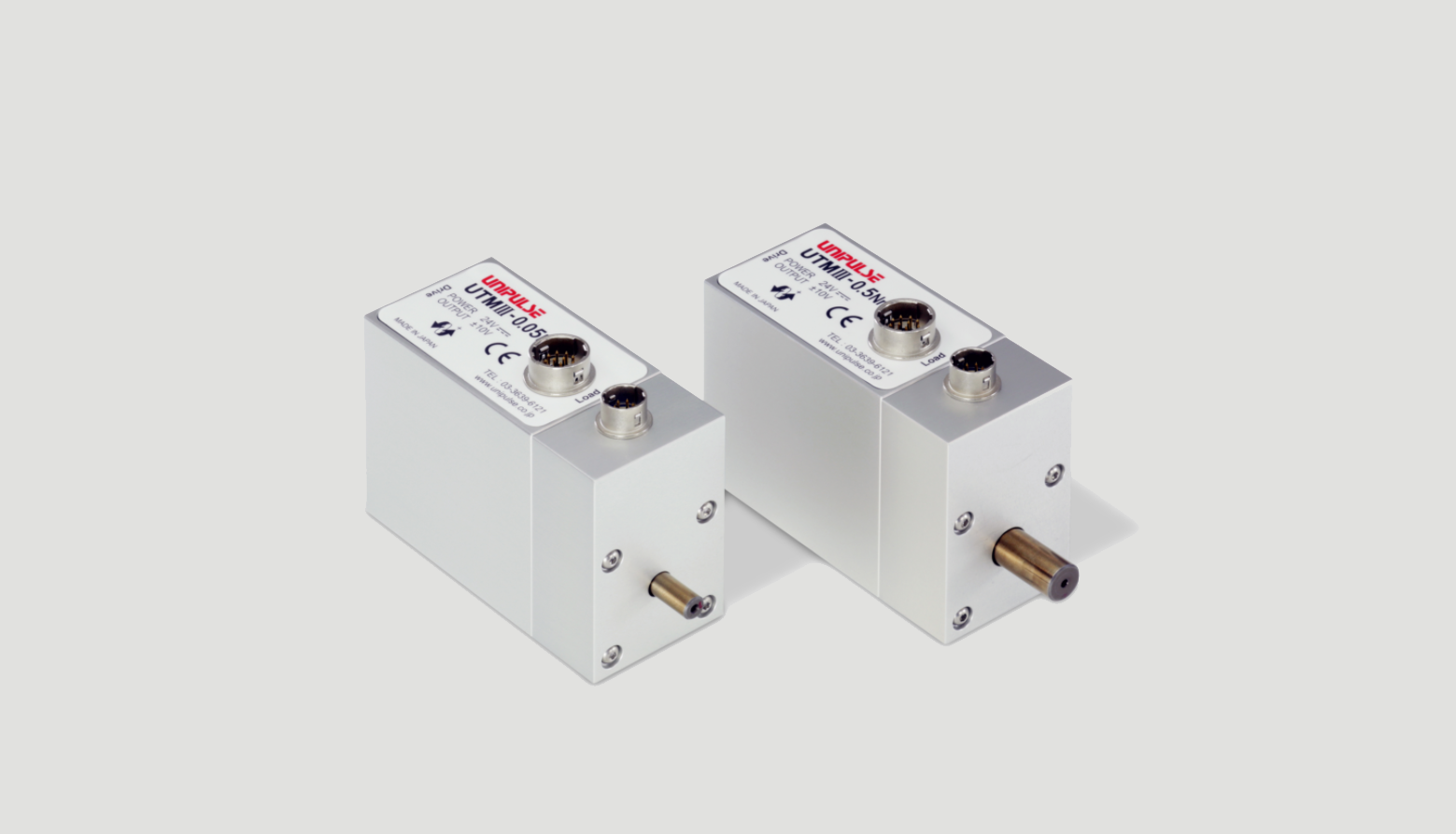

| Common specifications | ||||||||||
| Power supply | DC24V ±15％ | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Output range | ±10V DC Load resistance must be more than 5kΩ | |||||||||
| Responsivity | 5kHz | |||||||||
| Rotation signal | 4 pulses per 1 rotationOpen collector Max. ratings 30V, 10mA | |||||||||
| Digital filter | 1Hz~1kHz(Depending on settings) PASS 5kHz | |||||||||
| Rotary encoder option | Detection method : Optical encoder3600 pulses per 1 rotationOutput type : Line driverOutput phase : A and B phaseDirection of rotation :CW (Clockwise from “LOAD” side)CCW (Counterclockwise from “LOAD” side) | |||||||||
| Safe overload | 500%FS | |||||||||
| Non-linearity | 0.03%FS | |||||||||
| Hysteresis | 0.03%FS | |||||||||
| Repeatability | 0.03%FS | |||||||||
| Operation temp . range | －10 to ＋50℃ | |||||||||
| Temp. effect on ZERO | 0.01%FS/℃ | |||||||||
| Temp. effect on span | 0.01%FS/℃ | |||||||||
| Supplied cable | 6-core shielded cable(2m), cable end separated12-core shielded cable(2m), cable end separated | |||||||||
| CE marking certification | EMC directives EN61326-1,EN61326-2-3 | |||||||||
