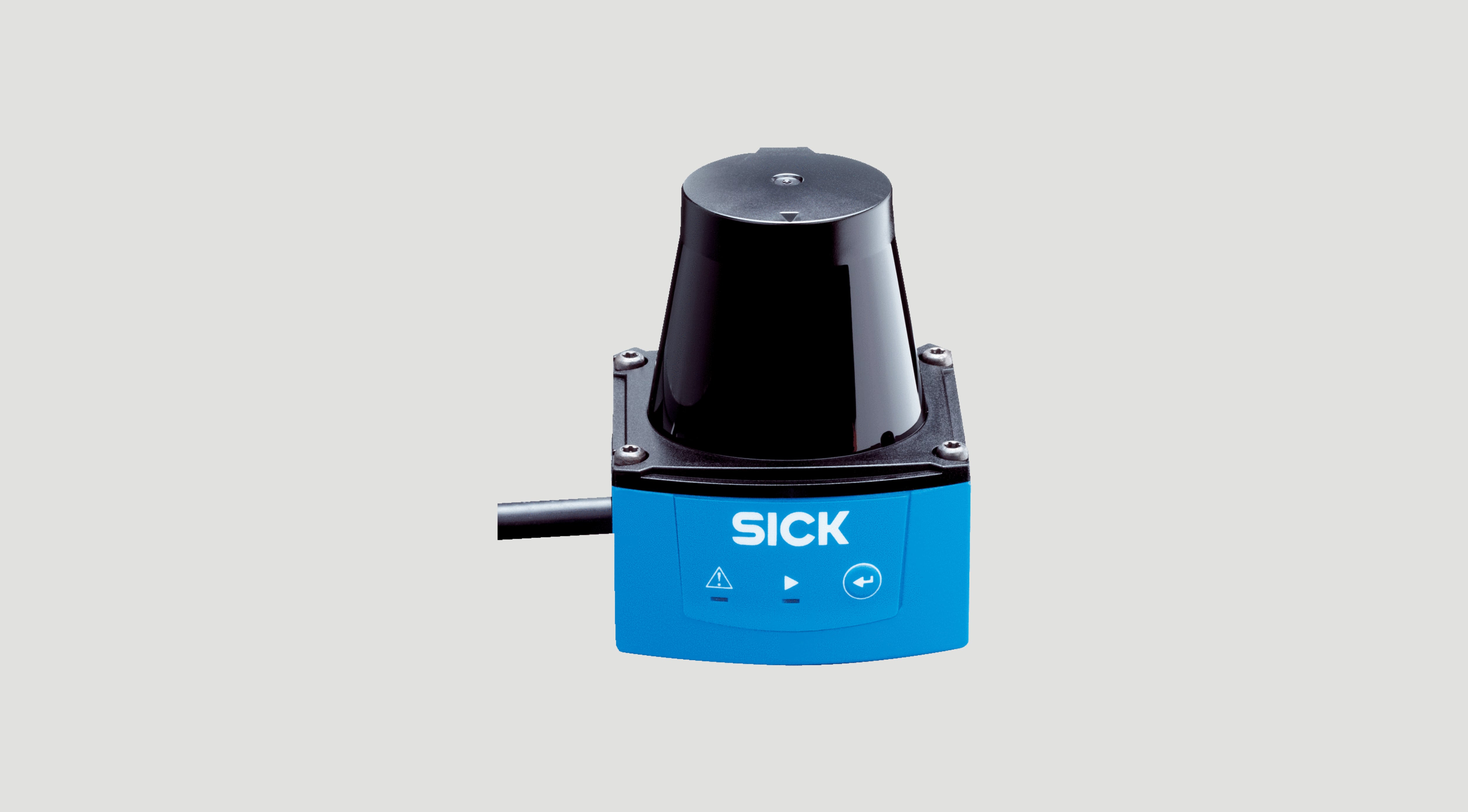

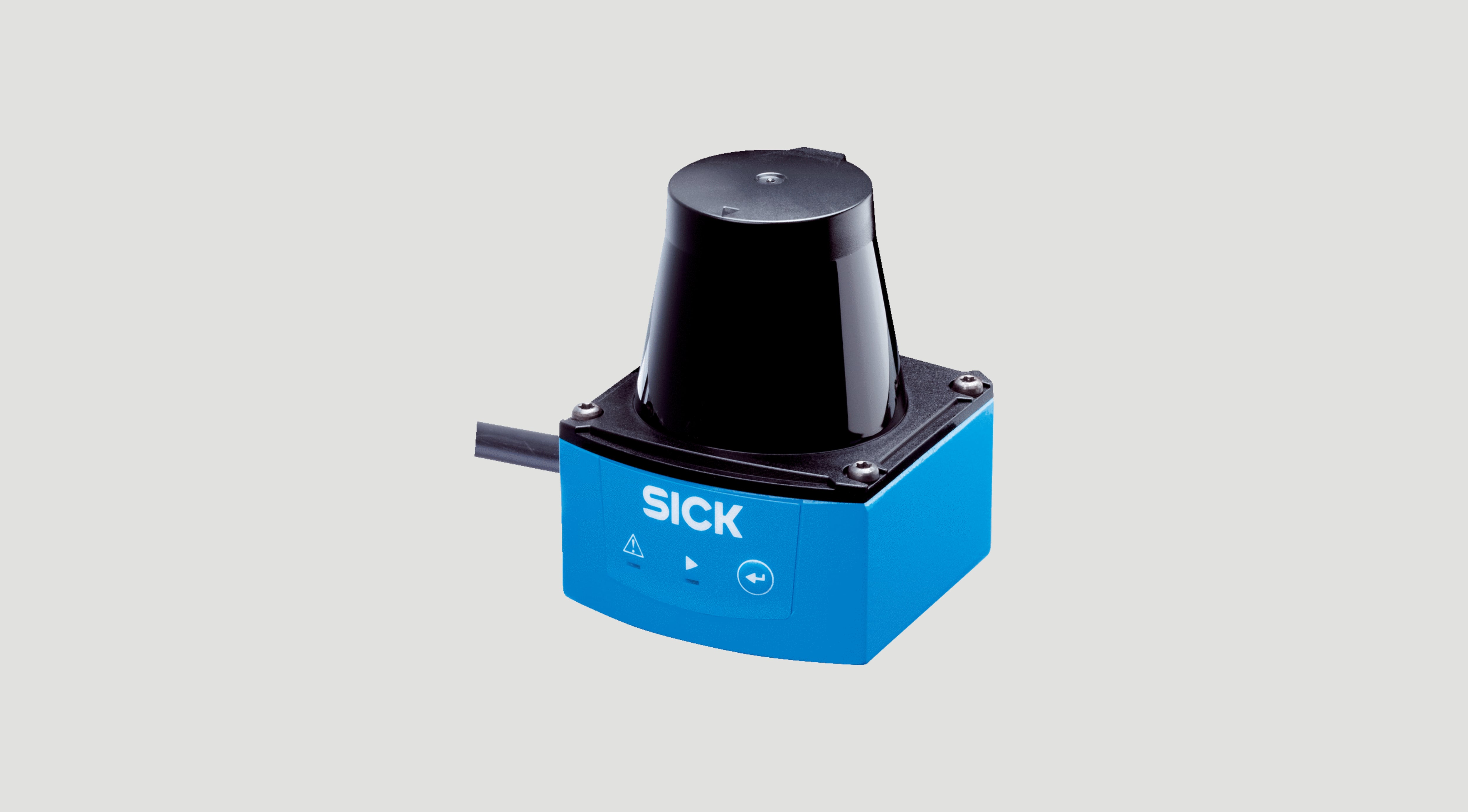

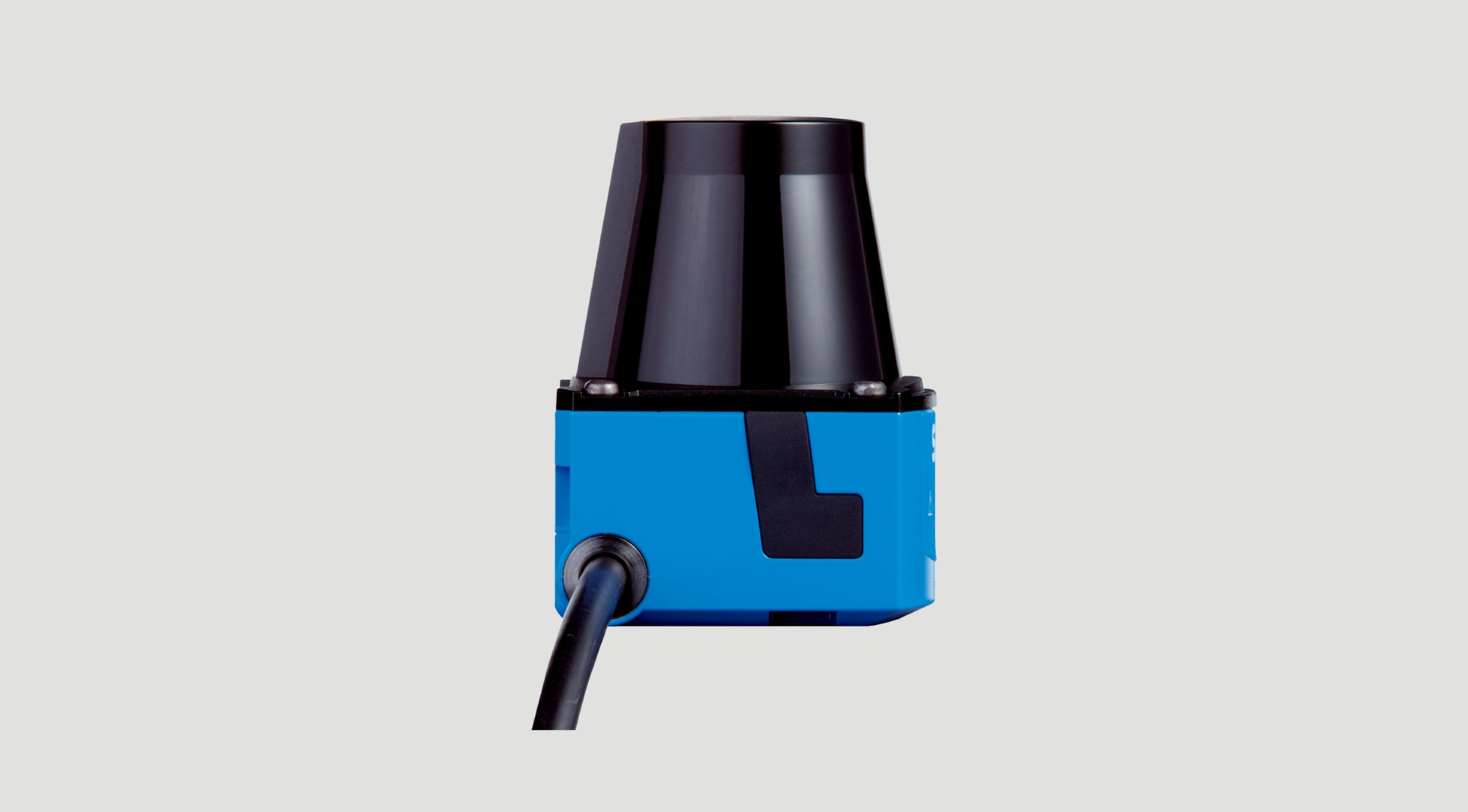

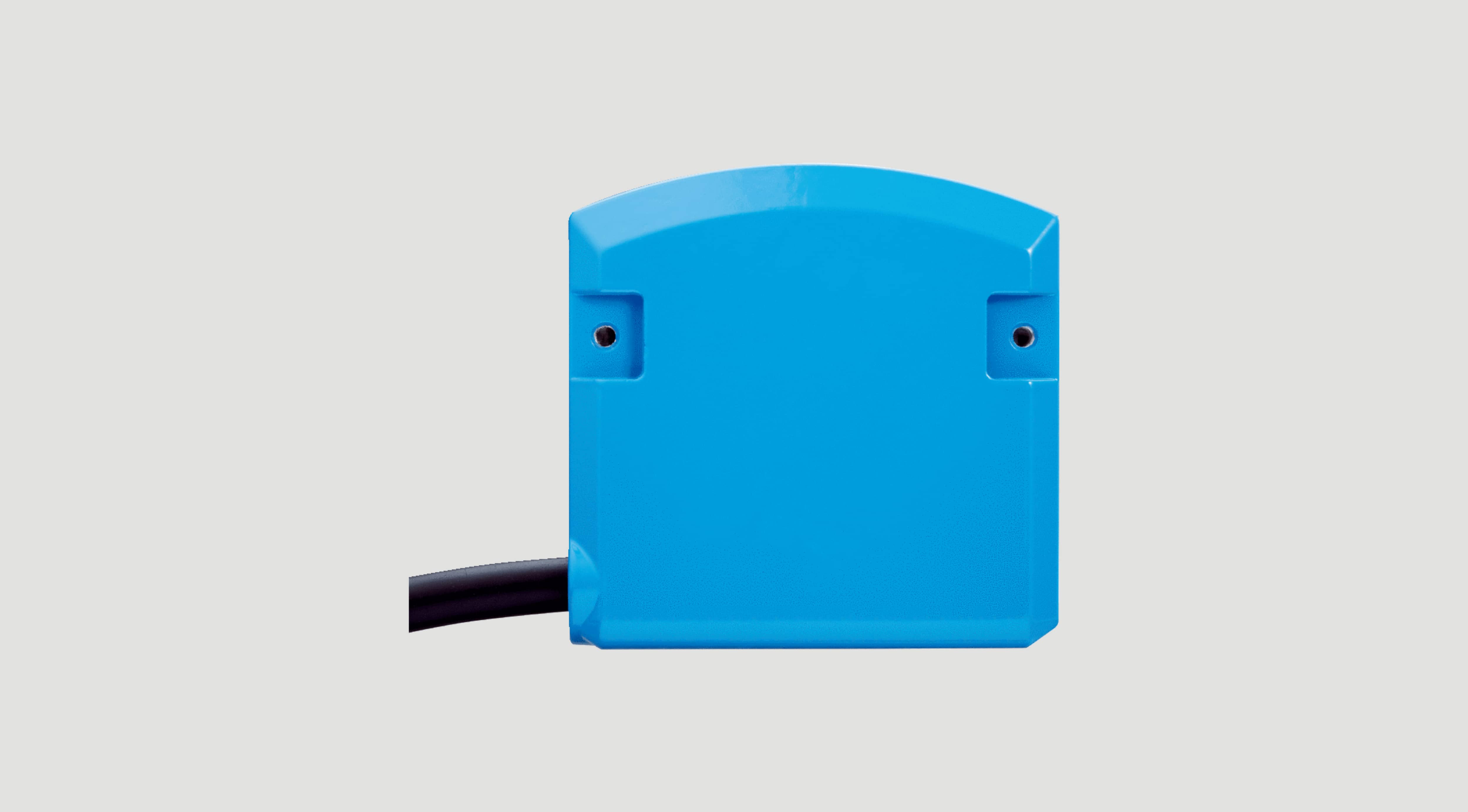

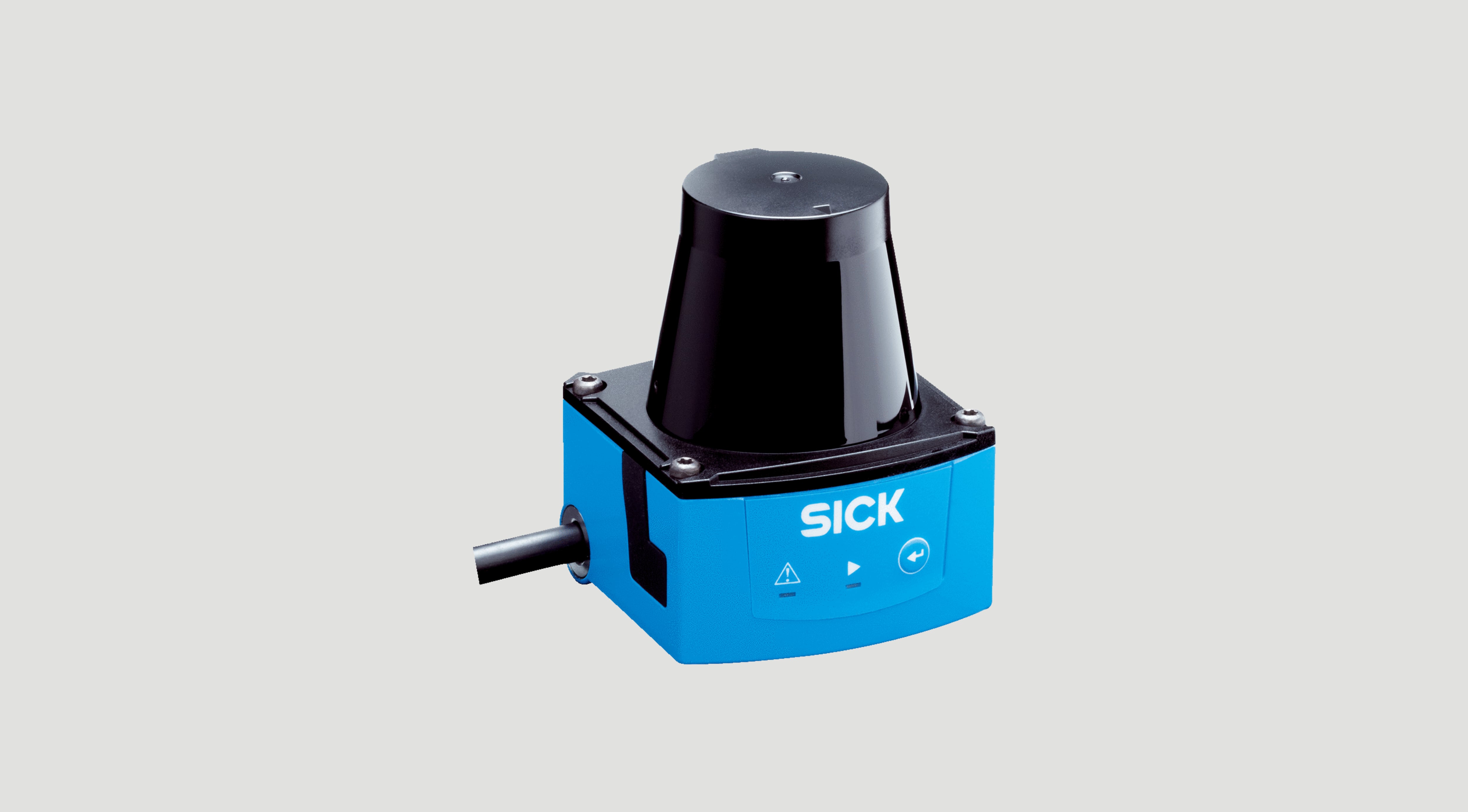

2d lidar sensor tim - tim320-1131000s02

Technical Information

Suitable for a variety of industrial applications due to the integrated field evaluation or measurement data output
Compact design for easy integration into applications where the installation space is limited, for example in AGVs and AMRs
Ideal for demanding applications thanks to the rugged housing design up to IP67
Great cost-effectiveness thanks to high performance with moderate investment and operating costs
Fast, intuitive commissioning and configuration via the SOPAS ET software from SICK
Low implementation costs due to standardized sensor telegrams and integration tools such as a ROS driver
Fields of applications
- Collision protection for mobile applications
- Object measurement and detection
- Monitoring of objects in the field of building automation
- Data supplier for navigation in mobile applications
- Area monitoring, etc.

Integrated application	Field evaluation with flexible fields
Measurement principle:	HDDM+
Working range	0.05 m - 4 m
Angular resolution	1°
Number of field sets	16
Enclosure rating	IP65
Digital outputs	3 (NPN, additional 1 x “Device Ready”)
Connection type	1 x M12 12-pin male connector (0.8 m)
