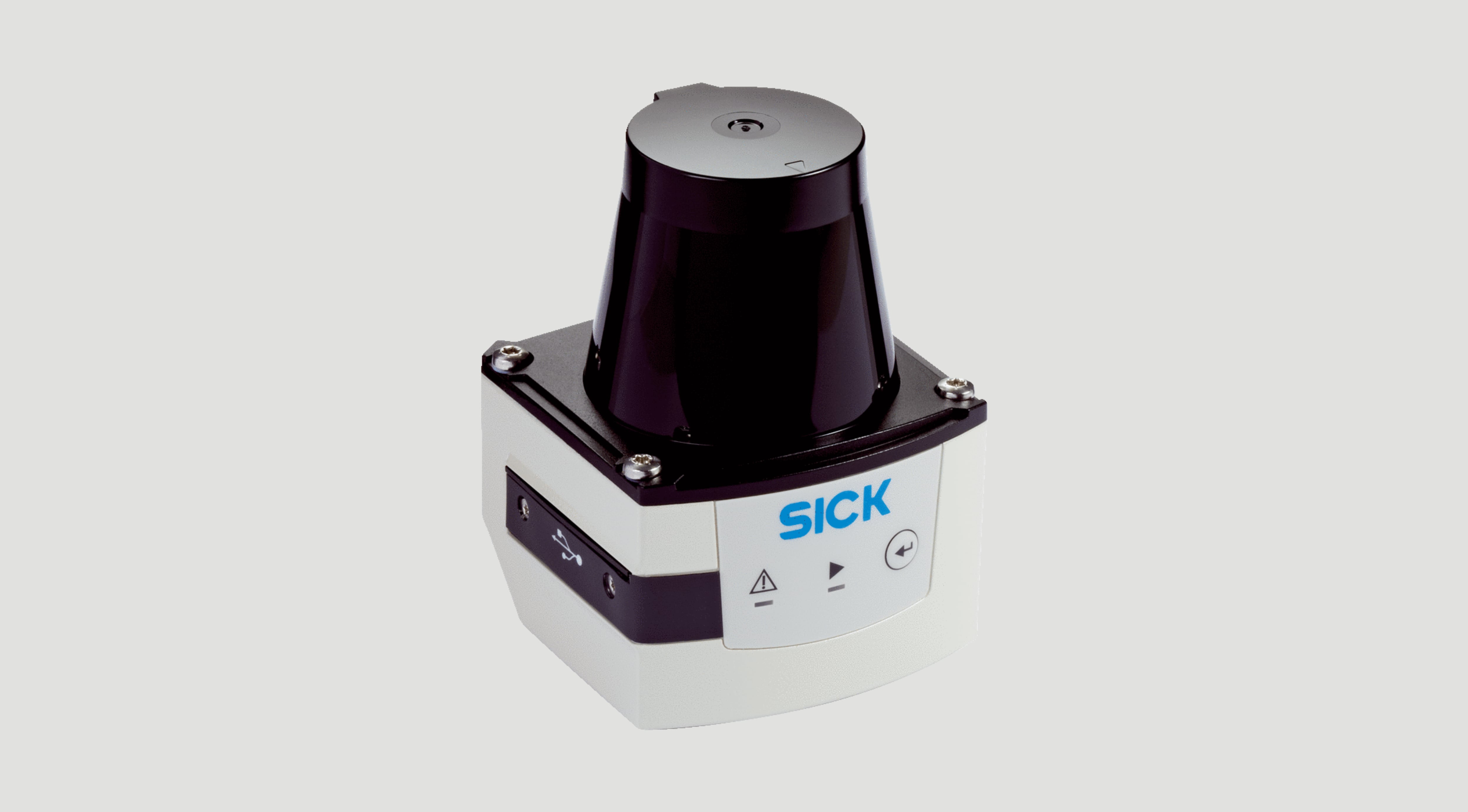

2d lidar sensor tim - tim561-2050101s80

Technical Information

Suitable for a variety of industrial applications due to the integrated field evaluation or measurement data output
Compact design for easy integration into applications where the installation space is limited, for example in AGVs and AMRs

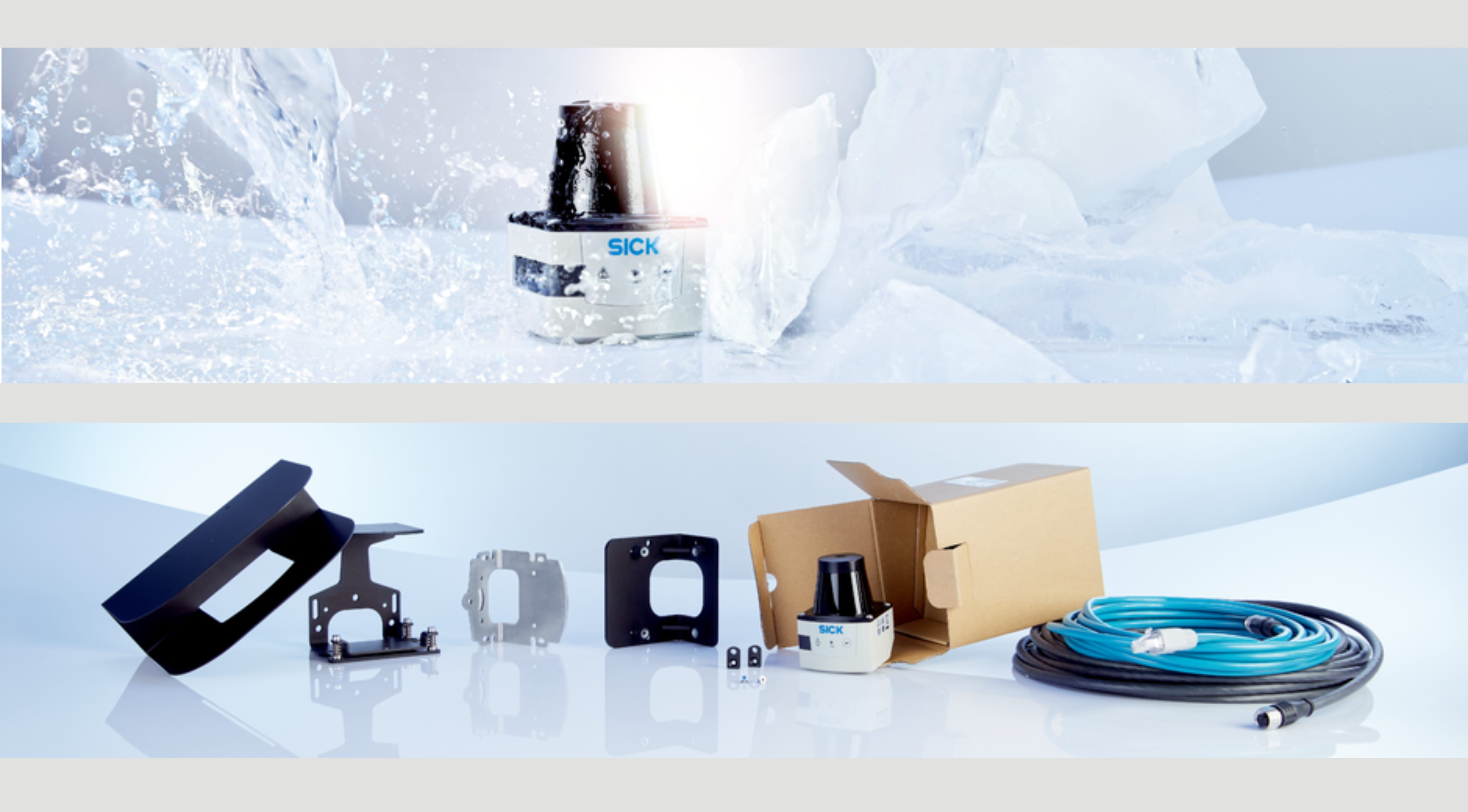

Ideal for demanding applications thanks to the rugged housing design up to IP67
Great cost-effectiveness thanks to high performance with moderate investment and operating costs
Fast, intuitive commissioning and configuration via the SOPAS ET software from SICK
Low implementation costs due to standardized sensor telegrams and integration tools such as a ROS driver
Fields of applications
- Collision protection for mobile applications
- Object measurement and detection
- Monitoring of objects in the field of building automation
- Data supplier for navigation in mobile applications
- Area monitoring, etc.

Integrated application	Output of measurement data

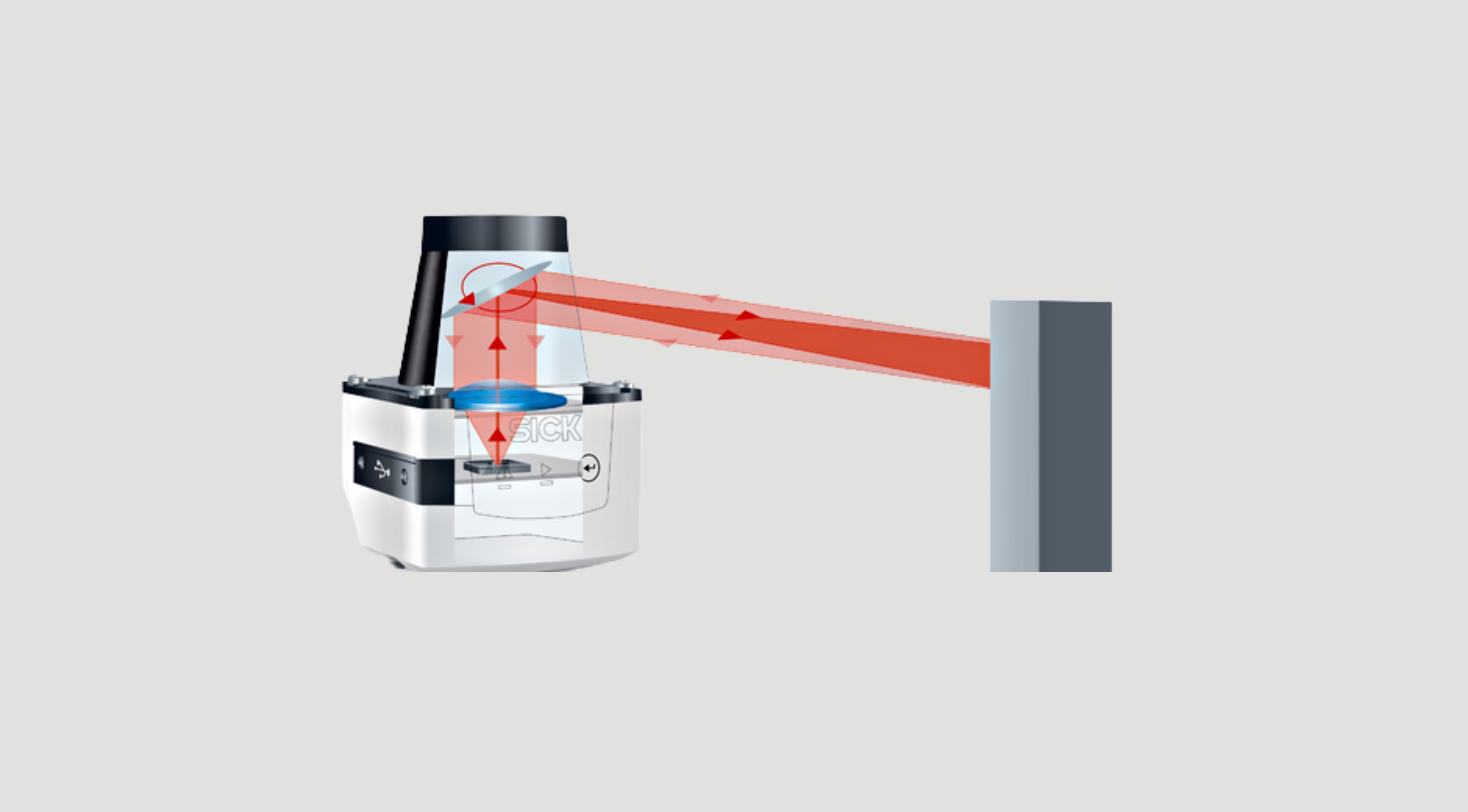

Measurement principle:	HDDM+
Working range	0.05 m - 10 m
Angular resolution	0.33°
Enclosure rating	IP67
Digital outputs	1 (PNP, SYNC/device ready)
Connection type	1 x “Ethernet” connection, 4-pin M12 female connector, 1 x connection “Power/Synchronization output” 5-pin, M12 male connector, 1 x Micro USB female connector, type B
Application	Outdoor
