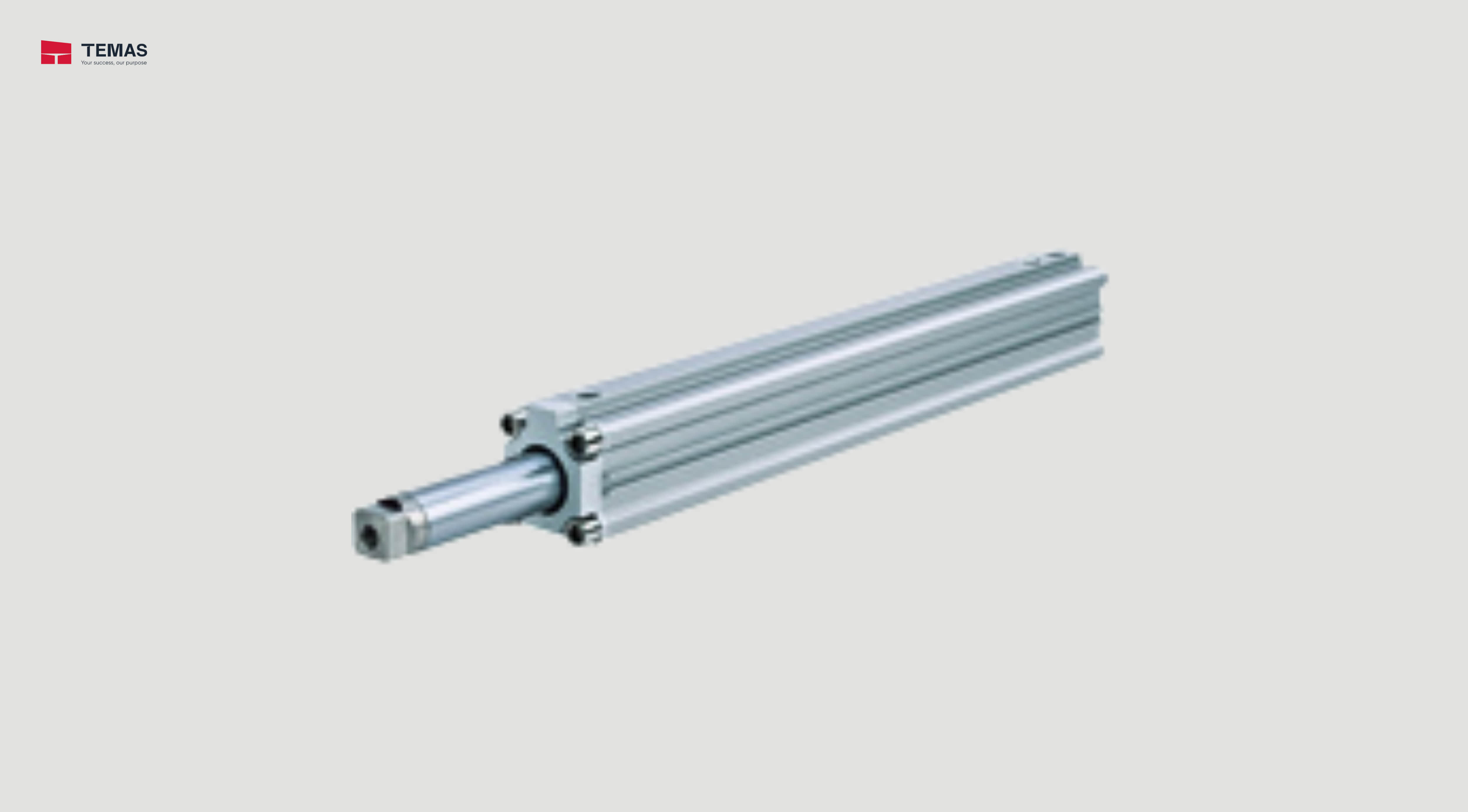

3 POSITION CYLINDER SMC RZQ

3 Position Cylinder RZQ Bore size:  ø32, ø40, ø50, ø63

Technical Information

Specifications RZQ
Bore size (mm) 32 40 50 63
Action Double acting, Single rod
Fluid Air
Proof pressure 1.5 MPa
Maximum operating pressure 1.0 MPa
Minimum operating pressure 0.1 MPa
Ambient and fluid temperature –10 to 60°C (with no freezing)
Lubrication Non-lube
Operating piston speed 50 to 300 mm/s
Stroke length tolerance +1.5 mm
Cushion Rubber bumper
Port size (Rc, NPT, G) 1/8 1/4
