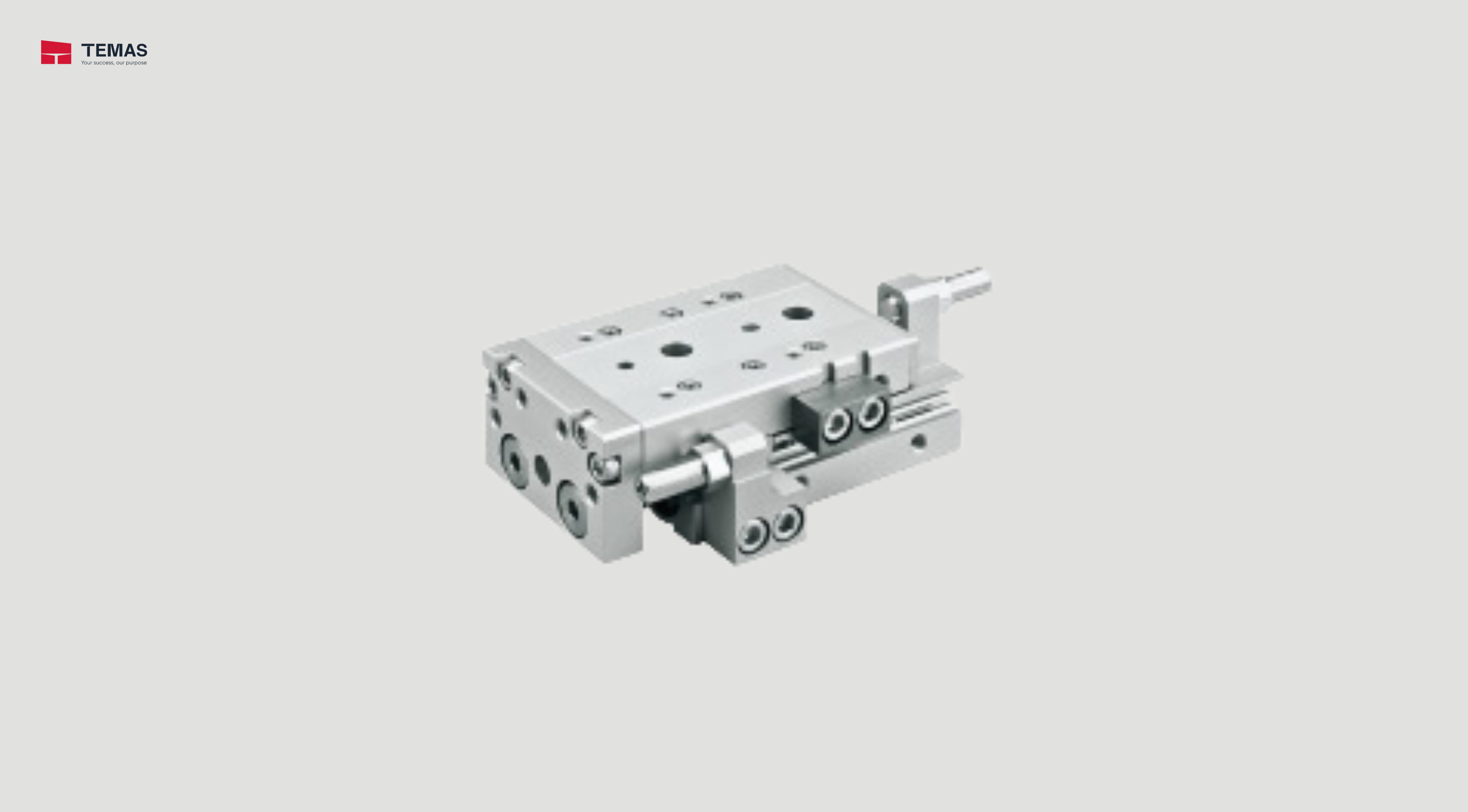

AIR SLIDE TABLE HIGH RIGIDITY TYPE SMC MXQ32-X2600

Air Slide Table High Rigidity Type MXQ32-X2600 Bore size: ø32

Technical Information

Specifications MXQ32-X2600
Bore size 32
Fluid Air
Action Double acting
Operating pressure 0.15 to 0.7 MPa
Proof pressure 1.05 MPa
Ambient and fluid temperatures −10 to 60°C (No freezing)
Operating speed range (Average operating speed)  50 to 500 mm/s
Cushion Without adjuster Internal rubber bumper
With adjuster Rubber stopper, Shock absorber
Lubrication Non-lube
Auto switch Solid state auto switch, Reed auto switch (2-wire, 3-wire)
2-color indicator solid state auto switch (2-wire, 3-wire)
Stroke length tolerance +2 to 0 mm
