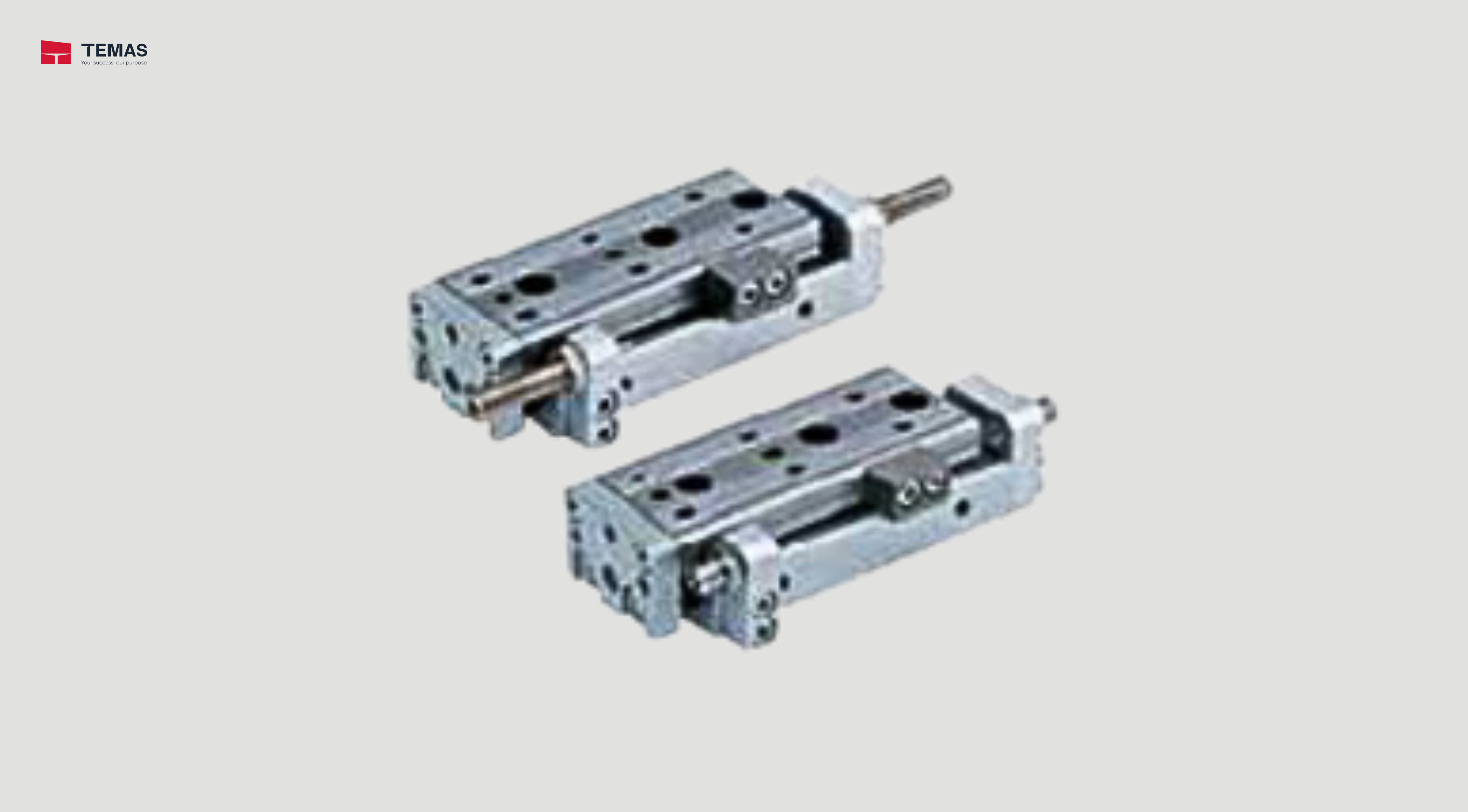

AIR SLIDE TABLE REVERSIBLE TYPE SMC MXQR

Air Slide Table Reversible Type Series SMC MXQR Bore size: ø6, ø8, ø12, ø16, ø20, ø25

Technical Information

Specifications MXQR
Bore size (mm) 6 8 12 16 20 25
Piping port size M5 x 0.8 Rc 1/8, NPT 1/8, G 1/8
Fluid Air
Action Double acting
Operating pressure 0.15 to 0.7 MPa
Proof pressure 1.05 MPa
Ambient and fluid temperature –10 to 60°C
Operating speed range
(Average operating speed)

50 to 500 mm/s

(Adjuster option/Metal stopper: 50 to 200 mm/s)

(Adjuster option/Shock absorber: 300 to 500 mm/s [ø6 only])
Cushion Rubber bumper (Standard, Adjuster option/Rubber stopper)
Shock absorber (Adjuster option/Shock absorber)
None (Adjuster option/Metal stopper)
Lubrication Non-lube
Auto switch (Optional) Reed auto switch (2-wire, 3-wire)
Solid state auto switch (2-wire, 3-wire)
2-color indicator solid state auto switch (2-wire, 3-wire)
Stroke length tolerance +1 mm
