AIR SLIDE TABLE SMC MXJ

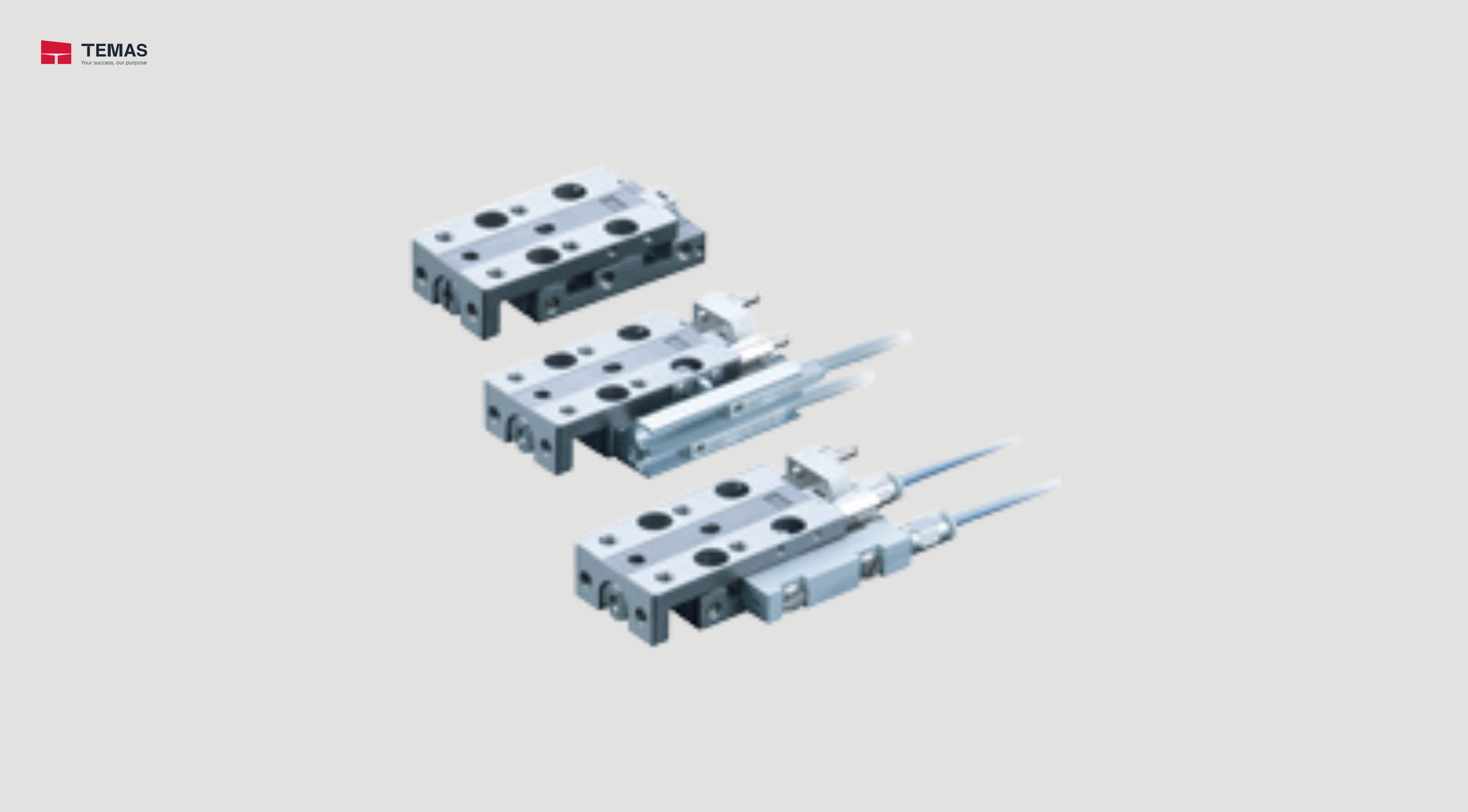

Air Slide Table MXJ Series Bore size: ø4, ø6, ø8

Technical Information

Specifications MXJ4 MXJ6 MXJ8
Bore size (mm) 4.5 6 8
Piping port size M3 x 0.5
Fluid Air
Action Double acting
Operating pressure 0.15 to 0.7 MPa
Proof pressure 1.05 MPa
Ambient and fluid temperature –10 to 60°C
Operating speed range
(Average operating speed)

50 to 500 mm/s

(Metal stopper: 50 to 200 mm/s)
Cushion Rubber bumper
(Metal stopper: Without cushion)
Lubrication Non-lube
Stroke adjusting range (metal stopper)
 Both ends each 0 to 5 mm
Auto switch (Optional) Reed auto switch (2-wire, 3-wire)
Solid state auto switch (2-wire, 3-wire)
2-color indicator solid state auto switch (2-wire, 3-wire)
Stroke length tolerance +1 mm
