AIR SLIDE TABLE SMC MXJ 2

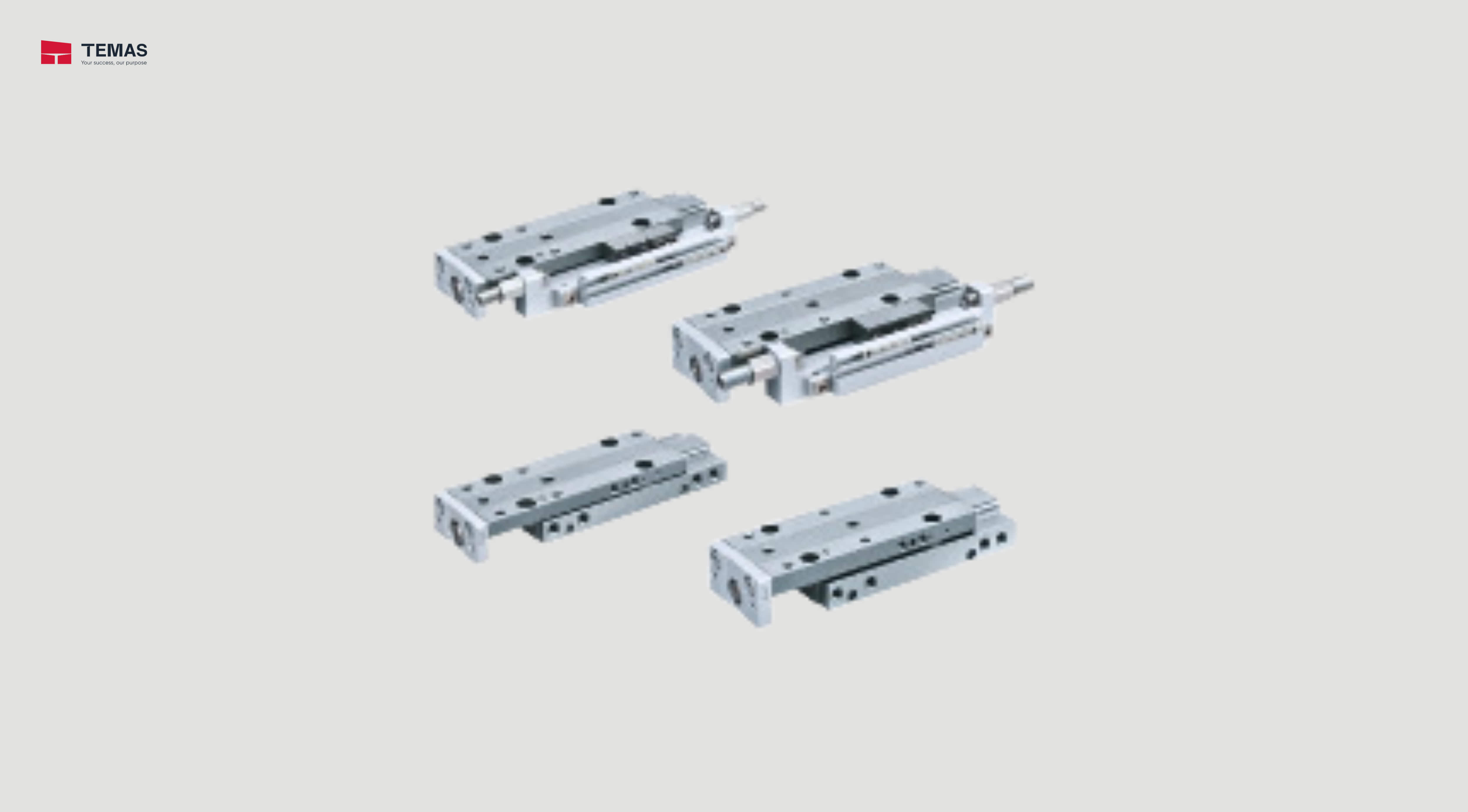

Air Slide Table MXJ Series Bore size: ø12, ø16

Technical Information

Specifications MXJ12 MXJ16
Bore size (mm) 12 16
Piping port size M5 x 0.5
Fluid Air
Action Double acting
Operating pressure 0.15 to 0.7 MPa
Proof pressure 1.05 MPa
Ambient and fluid temperature –10 to 60°C
Operating speed range
(Average operating speed)

50 to 500 mm/s

(Metal stopper: 50 to 200 mm/s)

(Metal stopper with bumper: 50 to 300 mm/s)
Cushion (Without adjuster) Rubber bumper
Cushion (With adjuster) Metal stopper, Metal stopper with bumper,
Rubber stopper, Shock absorber
Lubrication Non-lube
Auto switch (Optional) Solid state auto switch (2-wire, 3-wire)
2-color indicator solid state auto switch (2-wire, 3-wire)
Stroke length tolerance +2 mm (When no pressure is applied)
