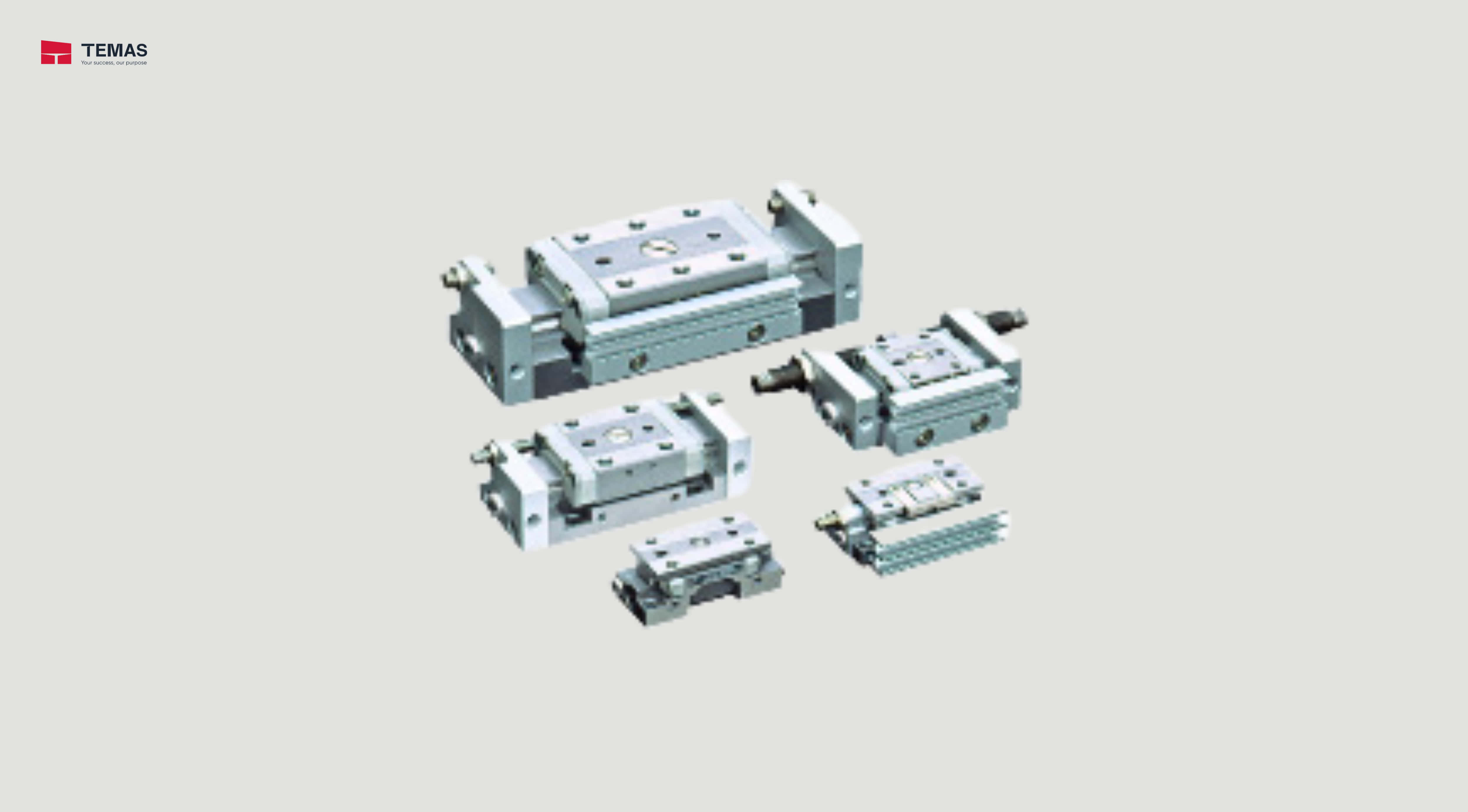

| Type | Series | Action | Bore size (mm) |
|---|---|---|---|
| Standard | MXPJ | Double acting | 6 |
| Standard | MXP | Double acting | 6，8，10，12，16 |
| Specifications |
MXP6 | MXP8 | MXP10 |
MXP12 | MXP16 | |
|---|---|---|---|---|---|---|
| Bore size (mm) |
6 | 8 | 10 |
12 |
16 | |
| Piping port size |
M3 x 0.5 | M5 x 0.8 | ||||
| Fluid |
Air | |||||
| Action |
Double acting | |||||
| Operating pressure |
0.15 to 0.7 MPa | |||||
| Proof pressure |
1.05 MPa | |||||
| Ambient and fluid temperature |
–10 to 60°C | |||||
| Operating speed range (Average operating speed) |
50 to 500 mm/s (Adjuster option/Metal stopper: 50 to 200 mm/s) |
|||||
| Cushion |
Rubber bumper Shock absorber (Option is not available for MXP6 and MXP8 series) None (Adjuster option/Metal stopper) |
|||||
| Lubrication |
Non-lube | |||||
| Adjuster |
Standard equipment (Adjustable on one side only, for the MXP6) |
|||||
| Stroke adjusting range (metal stopper) |
Rubber stopper |
0 to 5 mm on one side only | Each 0 to 3 mm on both ends |
|||
| Shock absorber |
- |
Each 0 to 5 mm on both ends |
||||
| Metal stopper |
0 to 6 mm on one side only | Each 0 to 5 mm on both ends | Each 0 to 4 mm on both ends | |||
| Auto switch (Optional) |
Reed auto switch (2-wire, 3-wire) Solid state auto switch (2-wire, 3-wire) 2-color indicator solid state auto switch (2-wire, 3-wire) |
|||||
| Stroke length tolerance |
+1 mm | |||||
