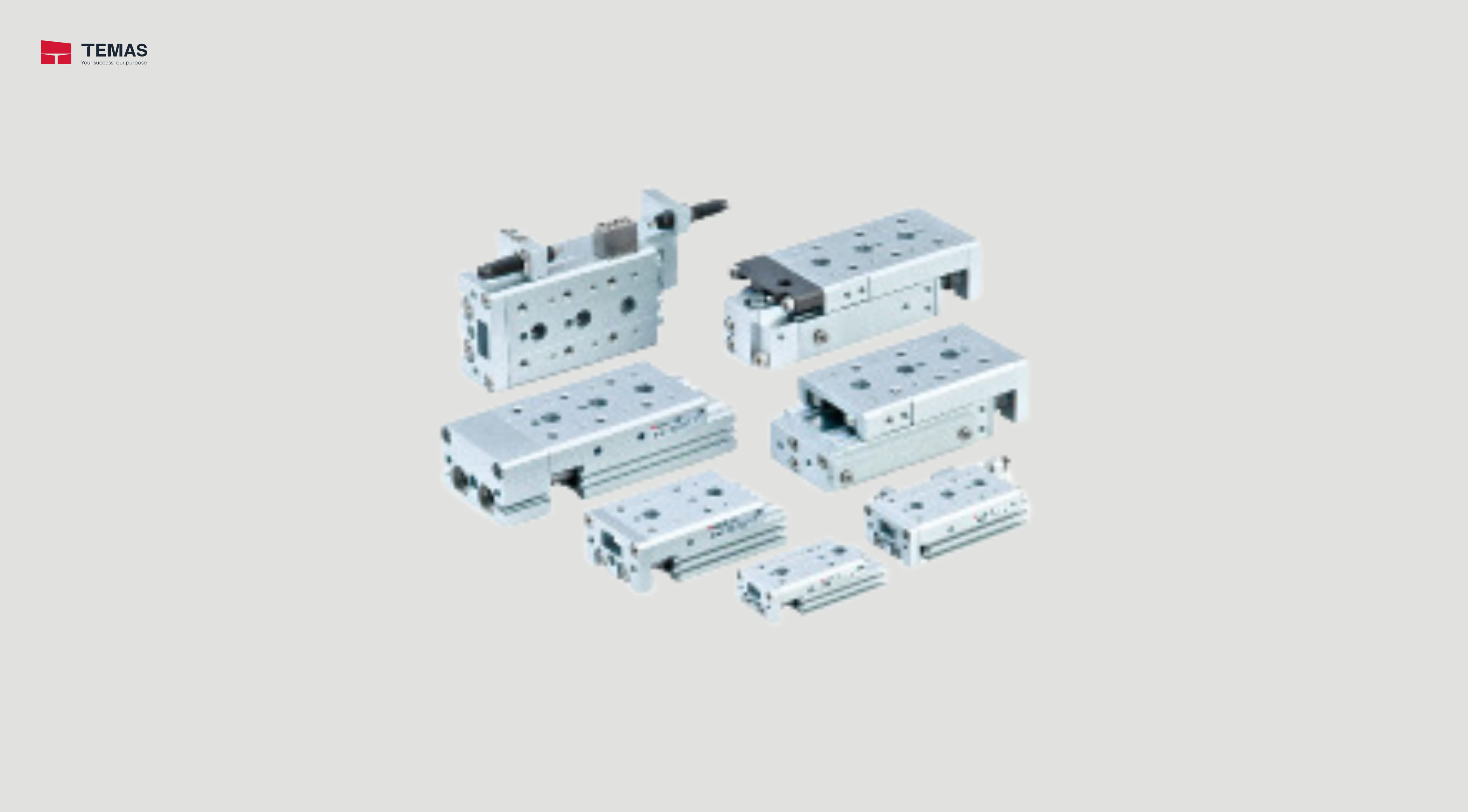

AIR SLIDE TABLE SMC MXS

Air Slide Table MXS Series Bore size 6，8，12，16，20，25

Technical Information

Type Series Action Bore size (mm)
Standard MXS Double acting 6，8，12，16，20，25
Symmetric MXS□L Double acting 6，8，12，16，20，25
Specifications MXS
Bore size (mm) 6 8 12 16 20 25
Piping port size M3 x 0.5 M5 x 0.8 Rc 1/8, NPT 1/8, G 1/8
Fluid Air
Action Double acting
Operating pressure 0.15 to 0.7 MPa
Proof pressure 1.05 MPa
Ambient and fluid temperature –10 to 60°C
Operating speed range
(Average operating speed)		 50 to 500 mm/s
Cushion Rubber bumper (Standard, Rubber stopper)
Shock absorber (Optional)
Lubrication Non-lube
Auto switch (Optional) Reed auto switch (2-wire, 3-wire)
Solid state auto switch (2-wire, 3-wire)
2-color indicator solid state auto switch (2-wire, 3-wire)
Stroke length tolerance +1 mm
