AIR SLIDE TABLE SMC MXW

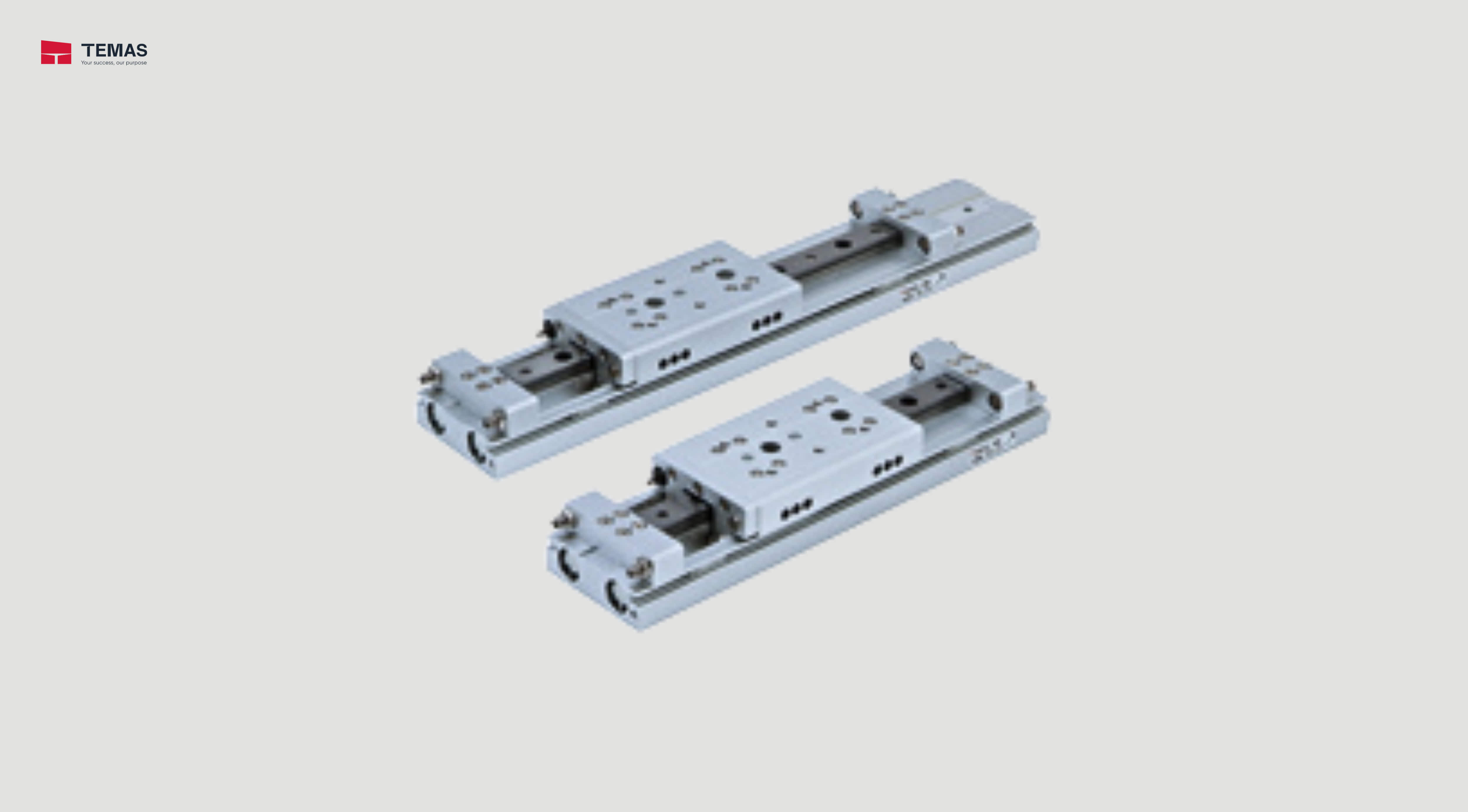

Air Slide Table SMC MXW Series Bore size: ø8, ø12, ø16, ø20, ø25

Specifications	MXW
Bore size (mm)	ø8 x 2 (ø11 or its equivalent)	ø12 x 2 (ø17 or its equivalent)	ø16 x 2 (ø23 or its equivalent)	ø20 x 2 (ø28 or its equivalent)	ø25 x 2 (ø35 or its equivalent)
Piping port size	M5 x 0.8			Rc1/8, NPT1/8, G1/8
Fluid	Air
Action	Double acting
Operating pressure	0.15 to 0.7 MPa
Proof pressure	1.05 MPa
Ambient and fluid temperature	–10 to 60°C
Operating speed range (Average operating speed)	50 to 500 mm/s
Cushion	Both ends rubber bumper (Standard) Shock absorber at both ends (Option)
Lubrication	Non-lube
Auto switch (Optional)	Reed auto switch Solid state auto switch (2-wire, 3-wire) 2-color indicator solid state auto switch (2-wire, 3-wire)
Stroke length tolerance	+1 mm
Stroke adjustment range	One side: 5 mm (Both sides: 10 mm)
