Technical Information

Item Specifications
Power Supply 24VDC
Pneumatic 5-6 Bar

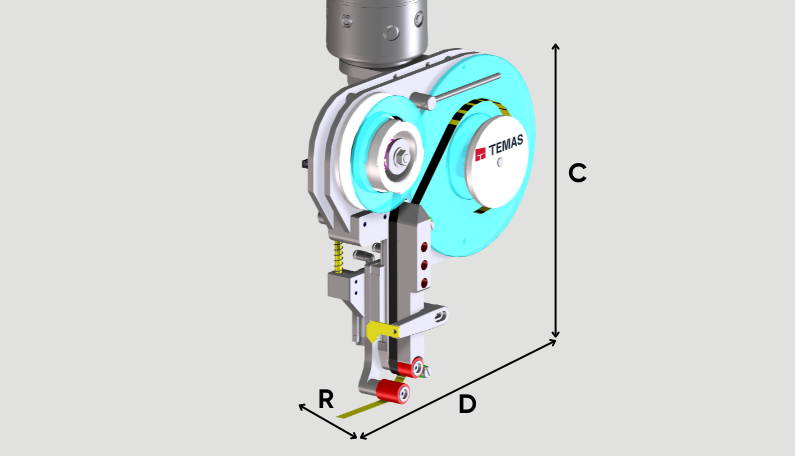

Size

(D x R x C)

 275 x 130 x 277 mm

Case size

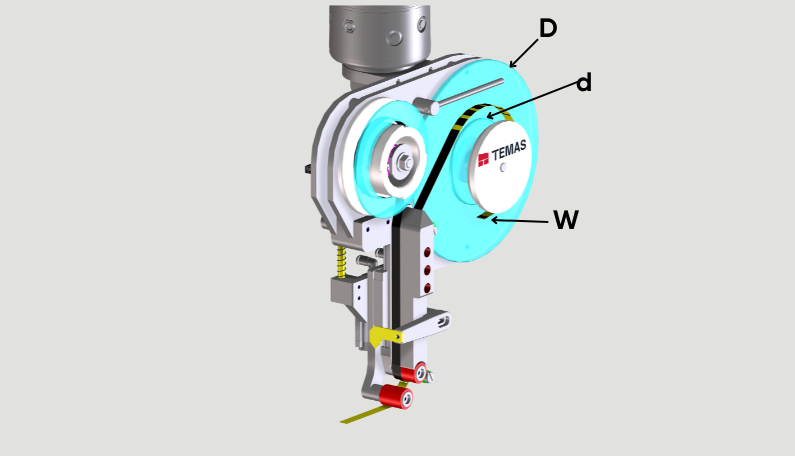

D: Maximum diameter of the tape roll

d: Core diameter of the tape roll

W: Width of the tape roll

D x d x W

For double-sided tape

Size 1-2 cm (core D75 mm)

Max outer diameter: 175 mm

Speed (max) 200 mm/s
Gluing length (min) 60 mm
Gluing length (max) According to robot arm range and tape roll length
