CLEAN RODLESS CYLINDER SMC CYP

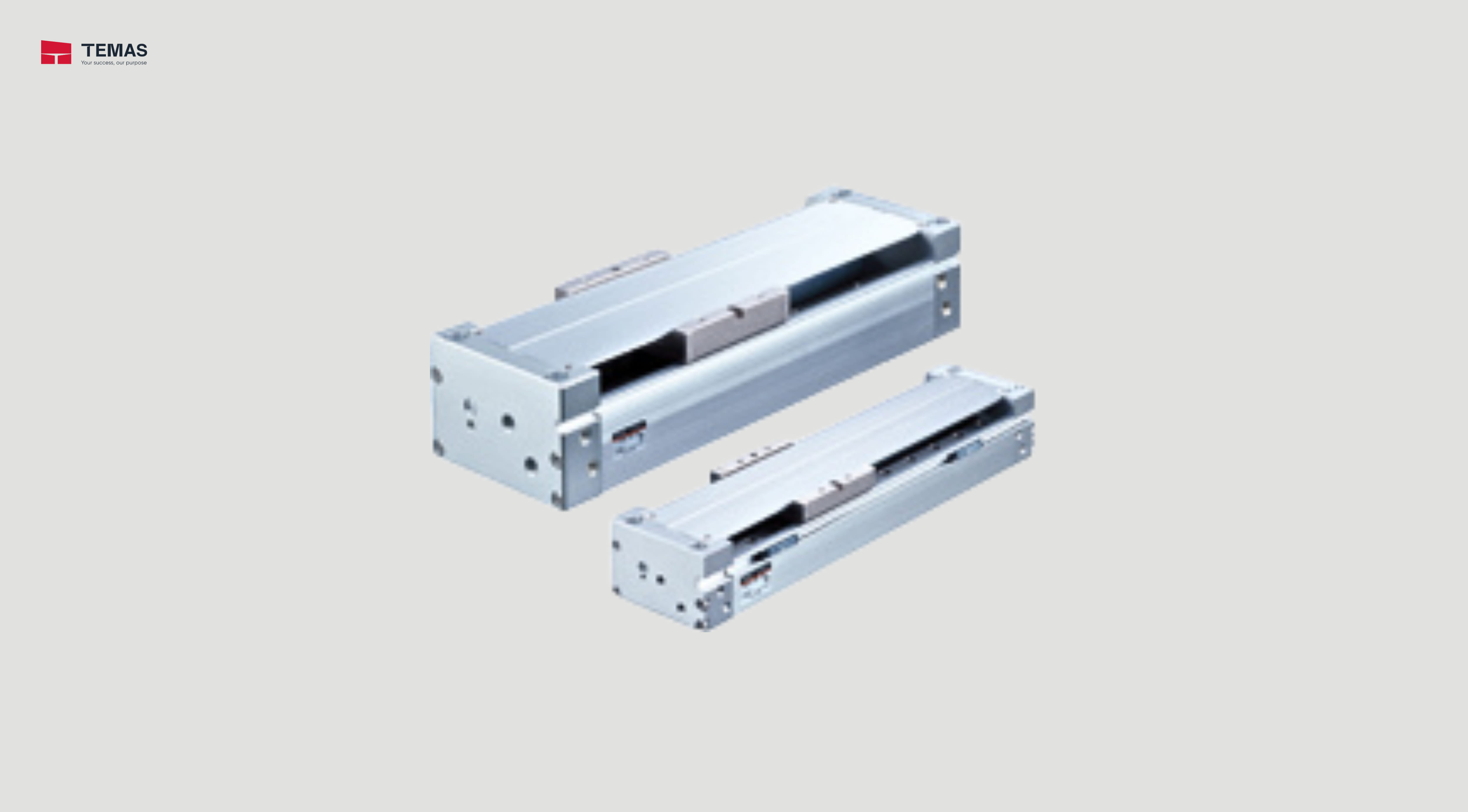

Clean Rodless Cylinder CYP SMC Bore size: ø15, ø32

Technical Information

Specifications CPY
Bore size (mm) 15 32
Fluid Air
Action Double acting
Proof pressure 0.5 MPa
Operating pressure range 0.05 to 0.3 MPa
0.05 to 0.3 MPa –10 to 60°C (No freezing)
Piston speed (Max.) 50 to 300 mm/s
Lubrication Not required (Non-lube)
Stroke adjustment ±1 mm on each side (±2 mm total)
Cushion Sine cushion (Air cushion)
Port size M5 x 0.8 Rc (PT) 1/8
Magnet holding force (N) 59 268
