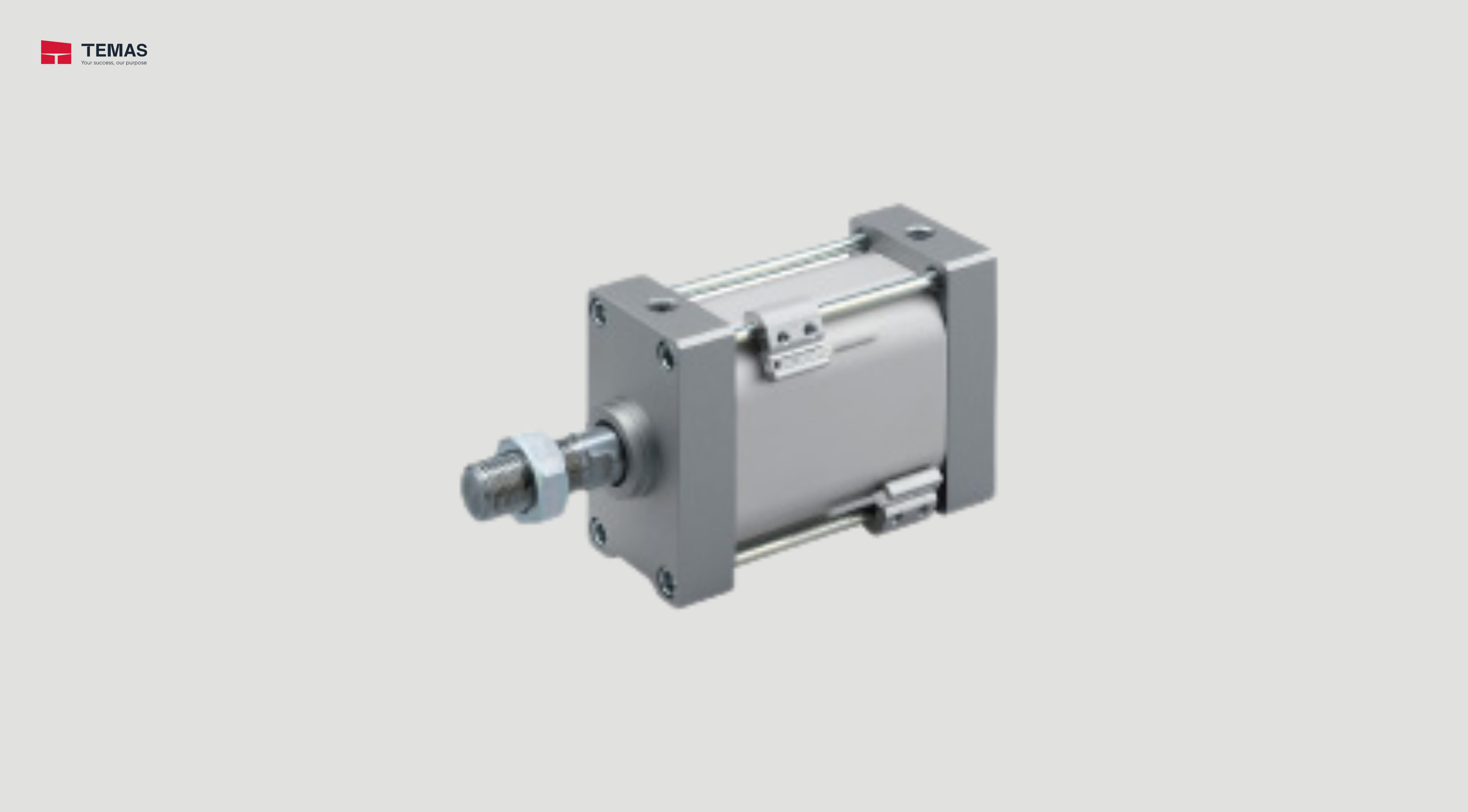

Air Cylinder Double Force, Type Size: 57

This product is capable of providing double the force of the MB series, without changing the width, due to the adoption of a rectangular piston.
Overall length: 47% reduction* (335 mm→179 mm)
Weight: 20% reduction* (1500 g→1200 g)
*Compared with the existing tandem type cylinder -XC12 (double force), ø40, 50 mm stroke
Small auto switches can be mounted on 4 surfaces. (Tie-rod mounting)
Air cushion adjustment is not required due to the nonadjustable air cushion.
Cover shape that prevents foreign matter accumulation

Type	Series	Action	Bore size (mm)
Standard	MB-X3155	Double acting single rod	40, 63

Specifications		MB-X3157
Bore size		57 (Equiv. ø40 x 2 piston area)
Proof pressure		1.0 MPa
Maximum operating pressure		0.7 MPa
Minimum operating pressure		0.05 MPa
Ambient and fluid temperature		5 to 60°C
Lubrication		Not required (Non-lube)
Piston speed		50 to 500 mm/s
Stroke length tolerance		2.0 mm 0 mm
Cushion		Non-adjustable air cushion + rubber bumper
Port size		Rc1/8
Stroke		50 to 250 mm (25 mm increments)
Mounting		None (Basic type only)
Allowable kinetic energy		1.2 J
