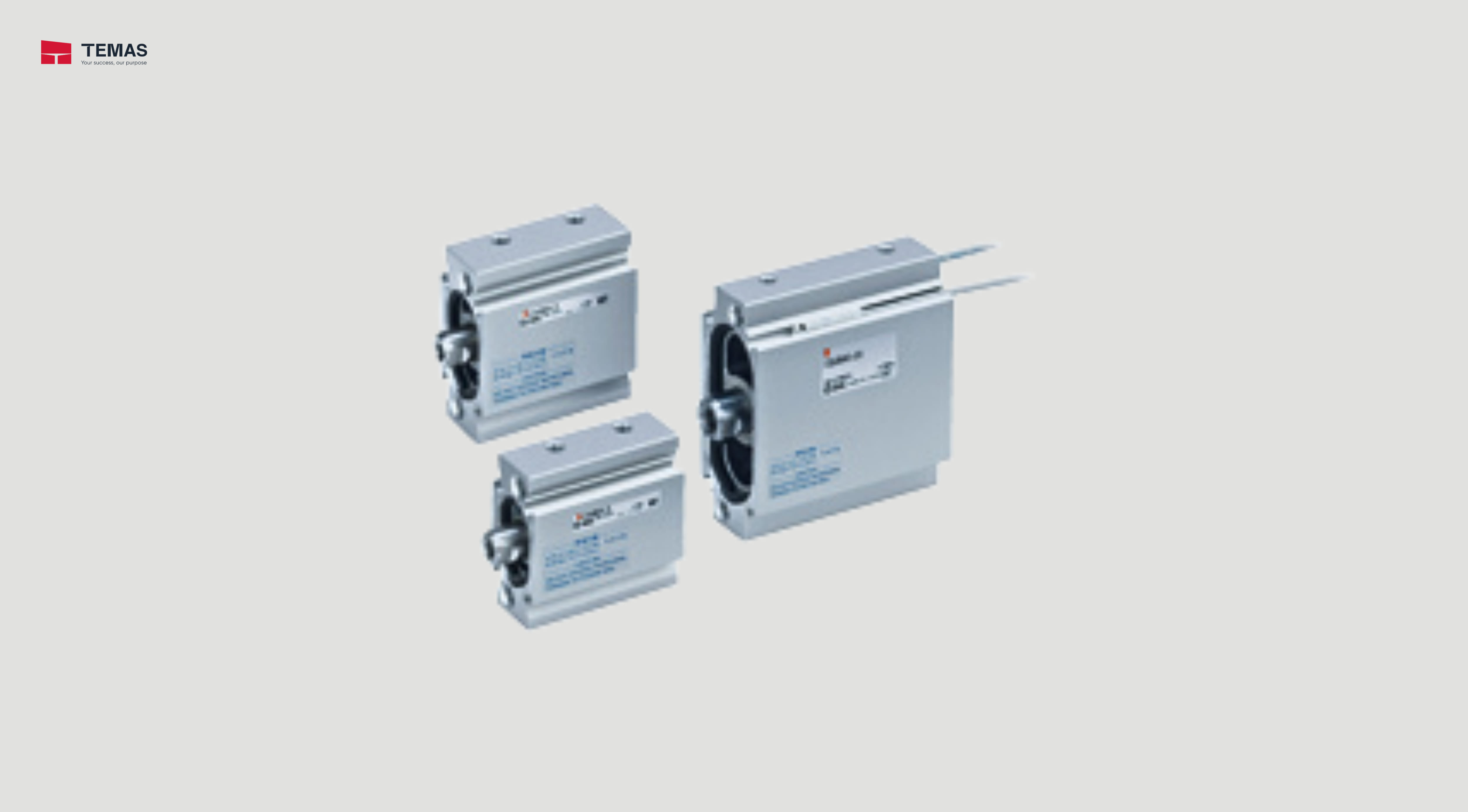

COMPACT CYLINDER PLATE TYPE SMC CQU

Compact Cylinder: Plate Type Double Acting, Single Rod SMC CQU Series Size: 20, 25, 32, 40

Technical Information

Specifications CQU
Equivalent bore size (mm) 20 25 32 40
Action Double acting, Single rod
Fluid Air
Proof pressure 1.0 MPa
Maximum operating pressure 0.7 MPa
Minimum operating pressure 0.08 MPa 0.05 MPa
Ambient and fluid
temperature		 Without auto switch: –10 to 70°C (No freezing)
With auto switch: –10 to 60°C (No freezing)
Cushion Rubber bumper
Rod end thread Female thread, Male thread
Stroke length tolerance +1.4
Mounting Through-hole/Both ends tapped common
Piston speed 50 to 500 mm/s
