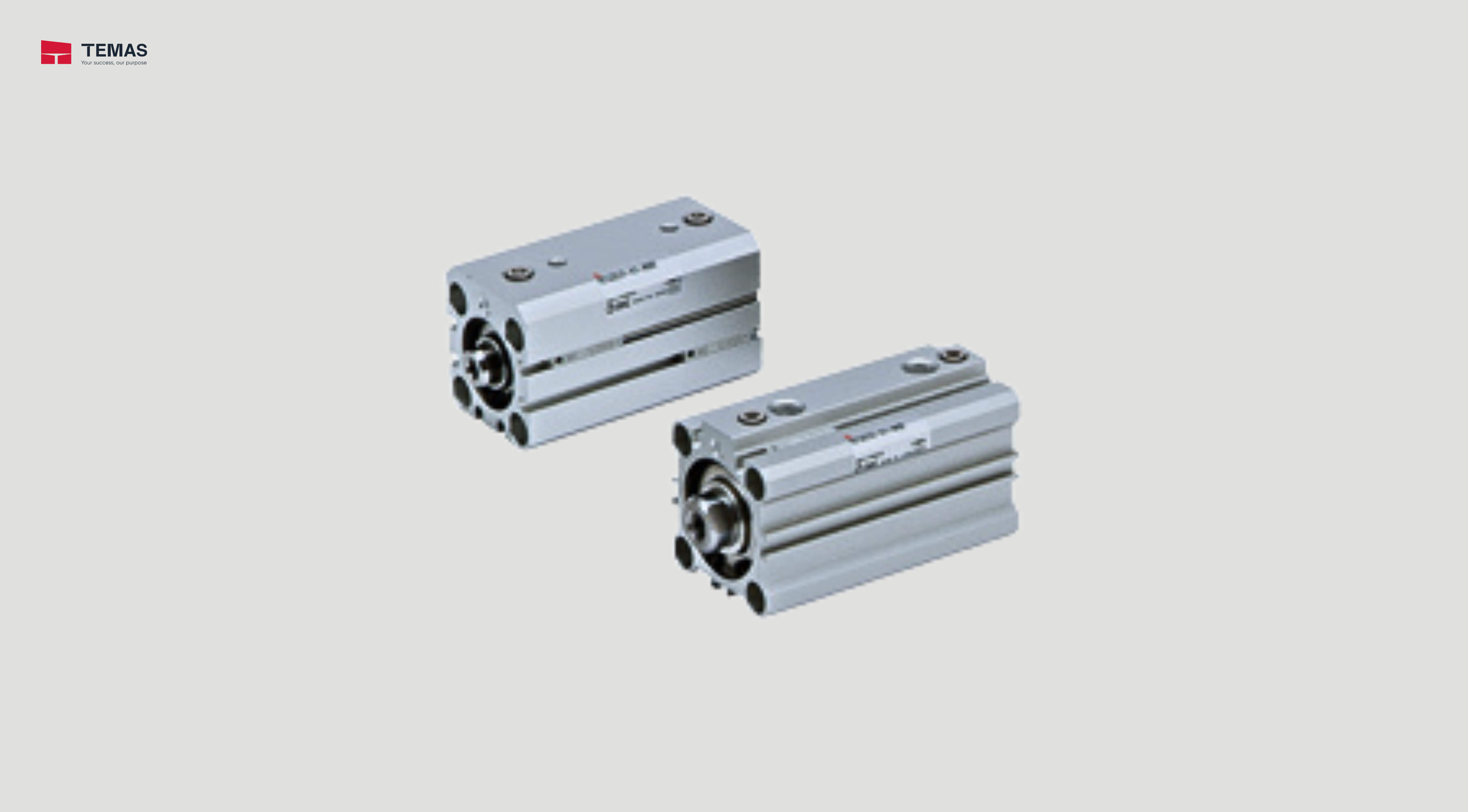

COMPACT CYLINDER WITH AIR CUSHION SMC RQ, RDQ

Compact cylinder with air cushion SMC RQ, RDQ size 20, 25, 32, 40, 50, 63, 80, 100

Technical Information

Type Series Action Bore size (mm)
Standard RQ Double acting, Single rod 20，25，32，40，50，63，80，100
Specifications RQ, RDQ
Bore size (mm) 20 25 32 40 50 63 80 100
Lubrication Not required (non-lube)
Fluid Air
Proof pressure 1.5 MPa
Maximum operating pressure 1.0 MPa
Minimum operating pressure 0.05 MPa
Ambient and
fluid temperature		 Without auto switch: –10°C to 70°C (No freezing)
With auto switch: –10°C to 60°C (No freezing)
Rod end thread Female thread
Stroke length tolerance +1.0
Mounting Through-hole
Piston speed 50 to 500 mm/s
