COMPACT CYLINDER WITH LOCK SMC CLQ, CDLQ

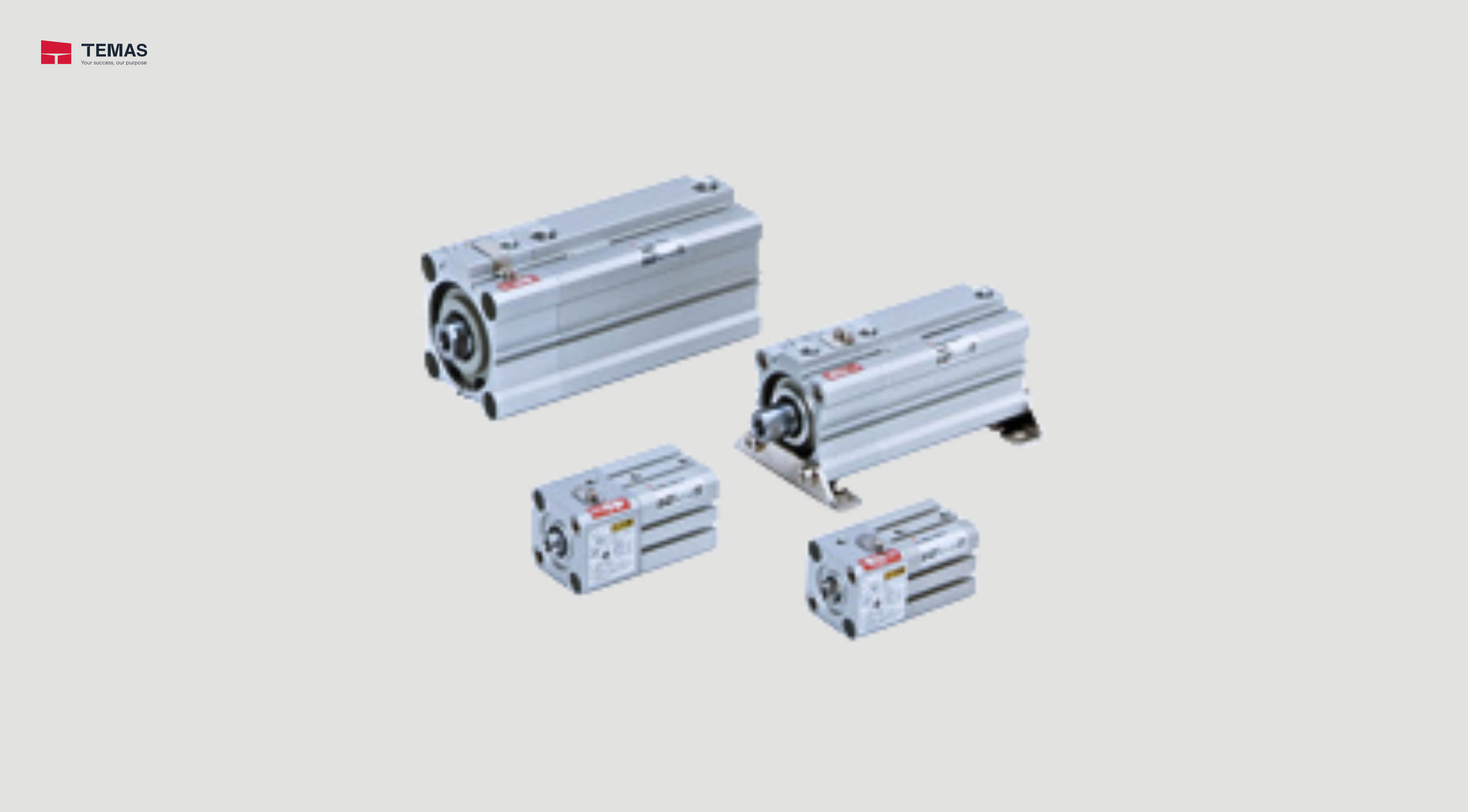

Compact Cylinder with Lock Double Acting, Single Rod SMC CLQ Series ø20, ø25, ø32, ø40, ø50, ø63, ø80, ø100

Technical Information

 Specifications  CLQ
 Bore size 20 25
 32 40
 50  63 80  100
Action Double acting, Single rod
Proof pressure 1.5 MPa
Max. operating pressure 1.0 MPa
Min. operating pressure 0.2 MPa
Ambient and fluid temperature Without auto switch: -10 to 70°C (No freezing) With auto switch: -10 to 60°C (No freezing)
Lubricant Not required (Non-lube)
Piston speed 50 to 500mm/s
Stroke length tolerance +1.0mm
Cushion None, rubber bumper
Port size (Rc, NPT, G) M5 x 0.8  1/8 1/4 3/8
