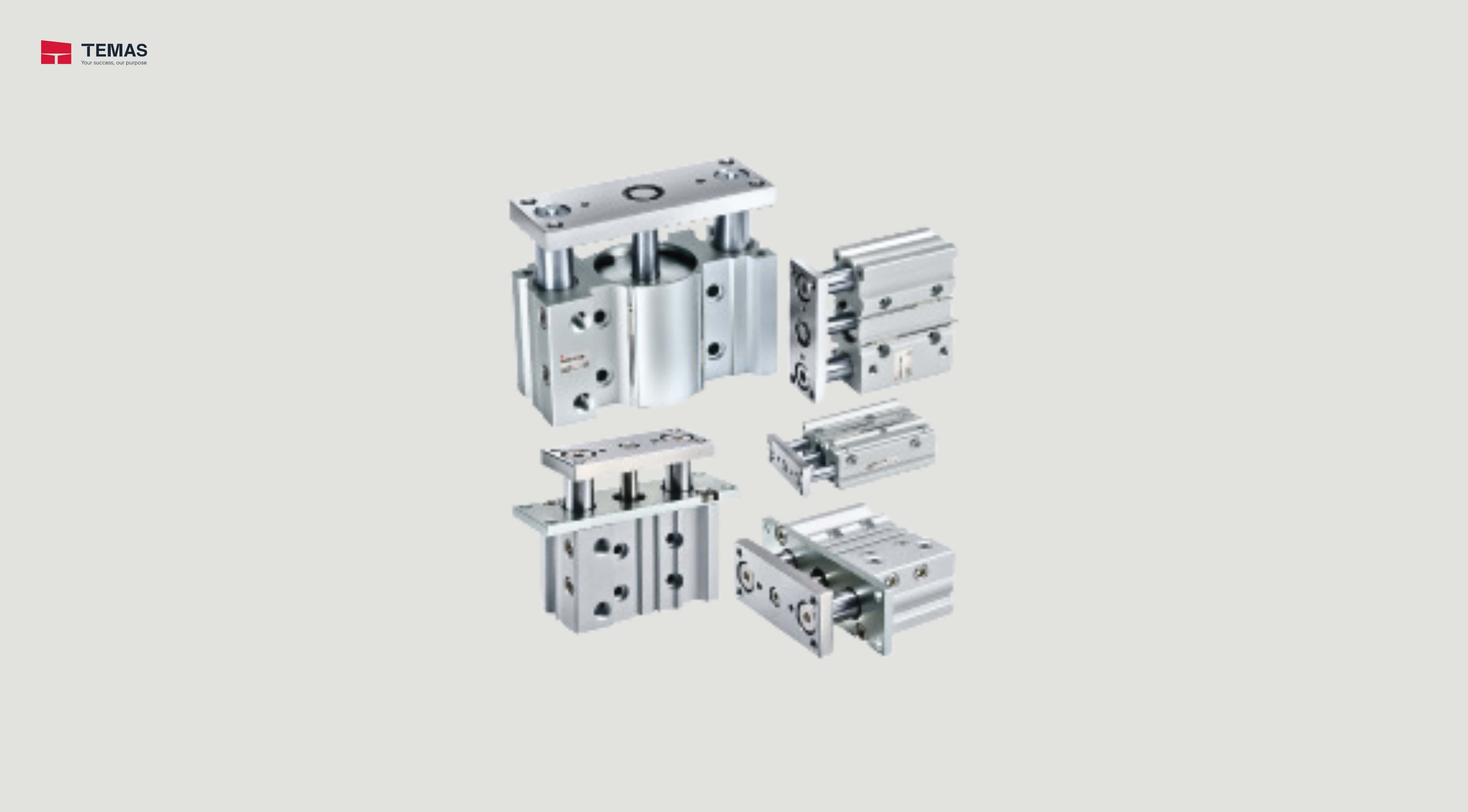

| Type | Bearing | Series | Action | Bore size (mm) |
|---|---|---|---|---|
| Basic type | Slide bearing | MGPM-Z | Double acting | 12，16，20，25，32，40 50，63，80，100 |
| Basic type | Ball bushing | MGPL-Z | Double acting | 12，16，20，25，32，40 50，63，80，100 |
| Basic type | High-precision ball bushing | MGPA-Z | Double acting | 12，16，20，25，32，40 50，63，80，100 |
| With air cushion | Slide bearing | MGPM-AZ | Double acting | 16，20，25，32，40 50，63，80，100 |
| With air cushion | Ball bushing | MGPL-AZ | Double acting | 16，20，25，32，40 50，63，80，100 |
| With air cushion | High-precision ball bushing | MGPA-AZ | Double acting | 16，20，25，32，40 50，63，80，100 |
| Water resistant | Slide bearing | MGPMR-Z | Double acting | 20，25，32，40 50，63，80，100 |
| With end lock | Slide bearing/Ball bushing bearing | MGP | Double acting | 20，25，32，40 50，63，80，100 |
| Heavy duty guide rod | Slide bearing | MGPS | Double acting | 50，80 |
| Specifications | MGP | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Bore size [mm] | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 |
| Action | Double acting | |||||||||
| Fluid | Air | |||||||||
| Proof pressure | 1.5 MPa |
|||||||||
| Maximum operating pressure | 1.0 MPa | |||||||||
| Minimum operating pressure | 0.12 MPa | 0.1 MPa | ||||||||
| Ambient and fluid temperature |
-10 to 60°C (No freezing) |
|||||||||
| Piston speed |
50 to 500 mm/s | 50 to 400 mm/s | ||||||||
| Cushion | Rubber bumper on both ends | |||||||||
| Lubrication | Not required (Non-lube) | |||||||||
| Stroke length tolerance | +1.5 mm | |||||||||
