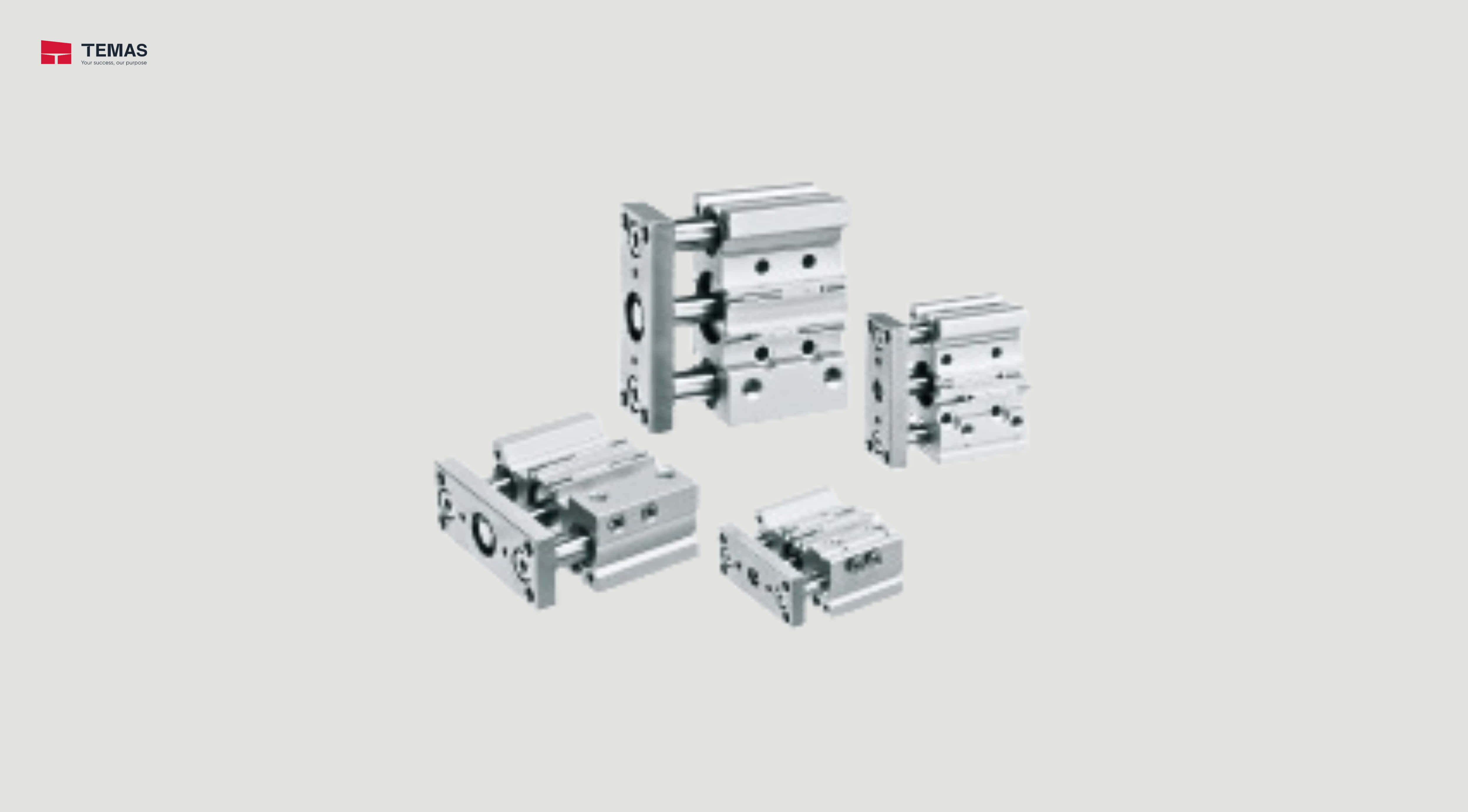

COMPACT GUIDE CYLINDER SMC MGPK

Compact Guide Cylinder MGPK Series Bore size: ø12, ø16, ø20, ø25, ø32, ø40, ø50

Technical Information

Type Bearing Series Action Bore size (mm)
Basic type Slide bearing MGPK Double acting 16，32
Basic type Ball bushing MGPKL Double acting 16，32
Specifications MGPK
Bore size [mm] ø12 ø16 ø20 ø25 ø32 ø40 ø50
Action Double acting
Fluid Air
Proof pressure 1.5 MPa
Maximum operating pressure 1.0 MPa
Minimum operating pressure 0.12 MPa 0.1 MPa
Ambient and fluid temperature

-10 to 60°C (No freezing)
Piston speed
50 to 500 mm/s
Cushion Rubber bumper on both ends
Lubrication Not required (Non-lube)
Stroke length tolerance +1.5 mm
