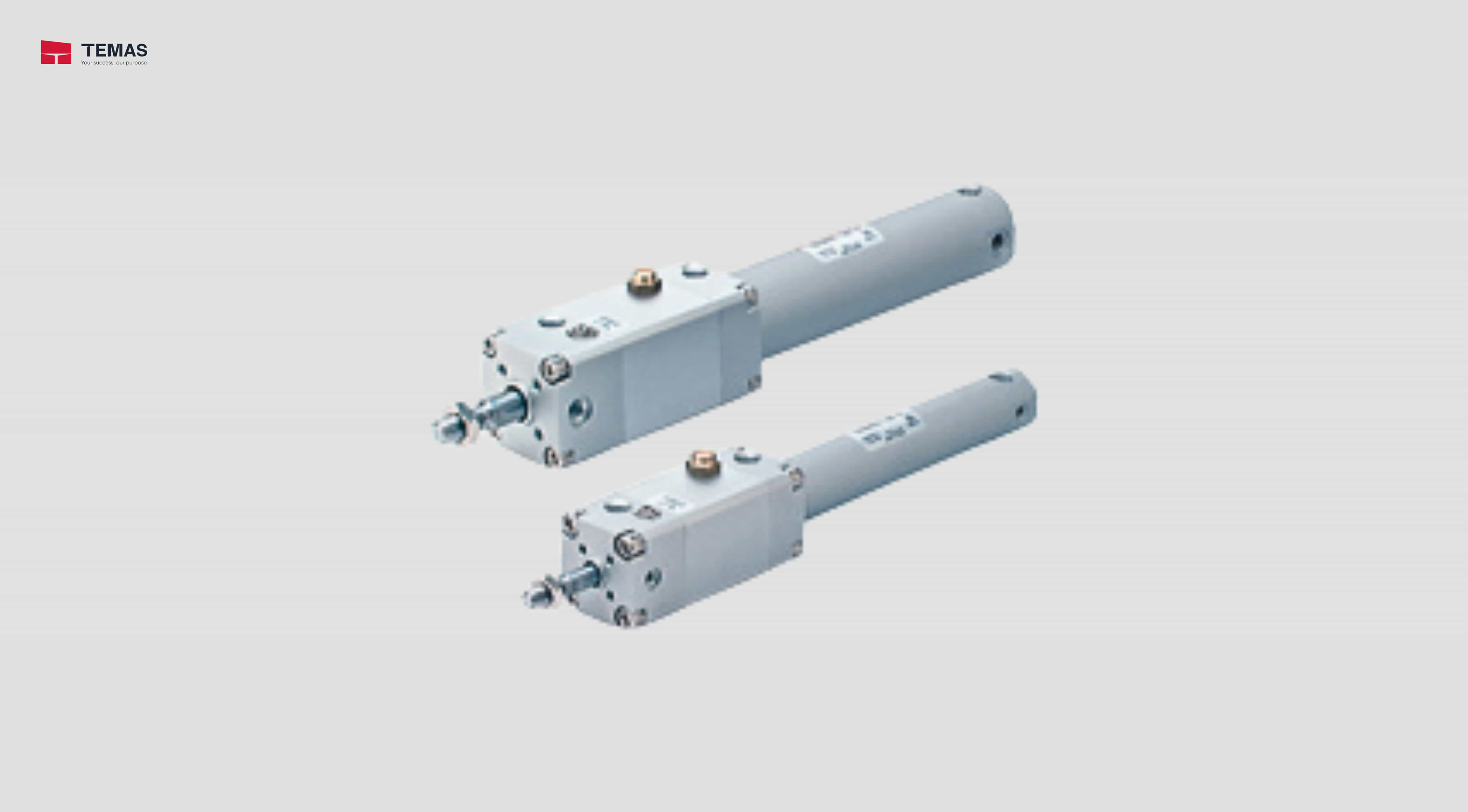

CYLINDER WITH LOCK SMC CNG, CDNG

Cylinder with Lock Double Acting, Single Rod SMC CNG Series Bore size: ø20, ø25, ø32, ø40

Technical Information

 Specifications  CNG
 Bore size  20 25  32  40
Lubrication Not required (Non-lube)
Proof pressure 1.5 MPa
Max. operating pressure 1.0 MPa
Min. operating pressure 0.08 MPa
Piston speed 50 to 1000mm/s *
Ambient and fluid temperature Without auto switch: -10 to 70°C (No freezing) With auto switch: -10 to 60°C (No freezing)
Cushion Rubber bumper, Air cushion
Stroke length tolerance (mm) Up to 1000 st: +1.4 0 1001 to 1500 st: +1.8 0
Mounting Basic type, Axial foot type, Rod side flange type, Head side flange type, Rod side trunnion type, Head side trunnion type, Clevis type (used for 90° change of port position)
