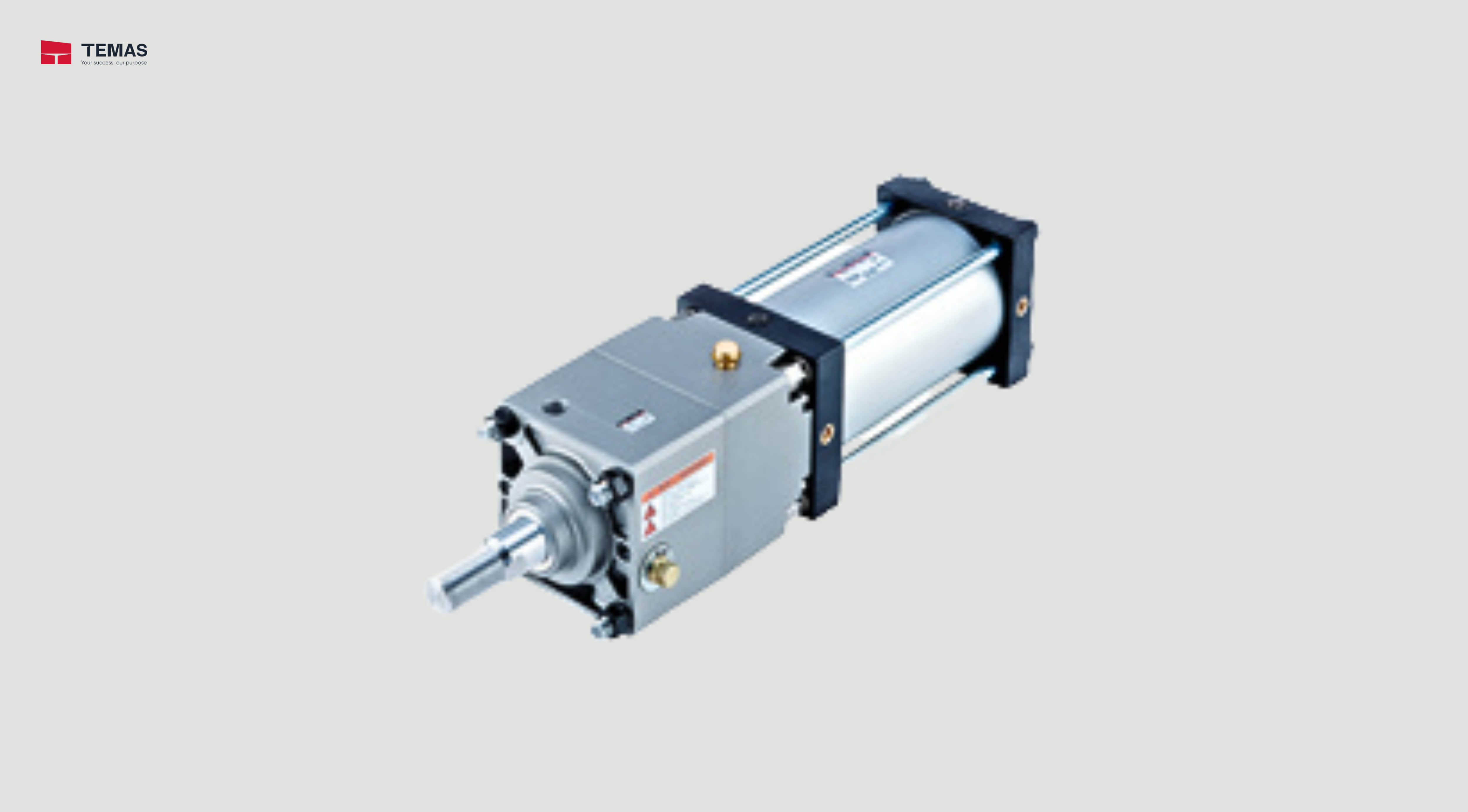

CYLINDER WITH LOCK SMC CNS, CDNS

Cylinder with Lock Double Acting, Single Rod CNS Series Bore size: ø125, ø140, ø160

Technical Information

 Specifications  CNS
 Bore size 125 140
160
Fluid Air
Action Double acting, Single rod
Proof pressure 1.57 MPa
Max. operating pressure 0.97 MPa
Min. operating pressure 0.08 MPa
Piston speed
 50 to 500 mm/s
Ambient and fluid temperature

Without auto switch: 0 to 70°C (No freezing)
With auto switch: 0 to 60°C (No freezing)
Cushion Air cushion
Stroke length tolerance Up to 250 st: +1.0, 251 to 1000 st: +1.4, 1001 to 1500 st: +1.8, 1501 to 1600 st: +2.2
Mounting Basic type, Axial foot type, Rod side flange type,
Head side flange type, Single clevis type, Double clevis type,
Center trunnion type
