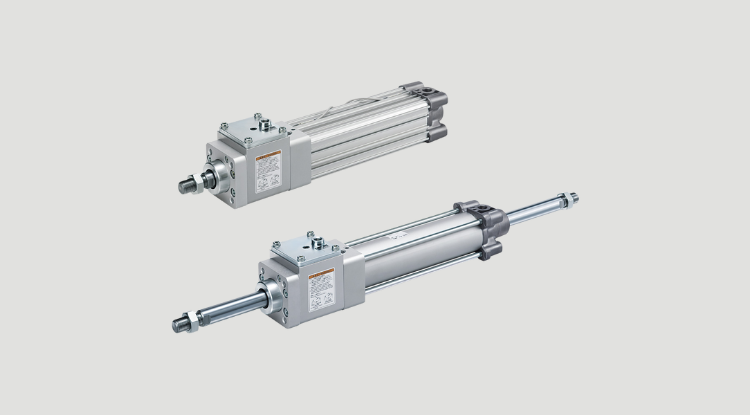

| Type | Series | Action | Bore size (mm) | Lock type |
|---|---|---|---|---|
| Standard | CP96N | Double acting, Single rod Double acting, Double rod |
32，40，50，63，80，100 | Exhaust locking |
| Standard | C96N | Double acting, Single rod Double acting, Double rod |
32，40，50，63，80，100 | Exhaust locking |
| Specifications | CP96N C96N | |||||||
|---|---|---|---|---|---|---|---|---|
| Bore size [mm] | 32 | 40 | 50 | 63 | 80 | 100 | ||
| Action | Double acting | |||||||
| Fluid |
Air | |||||||
| Proof pressure | 1.5 MPa | |||||||
| Max. operating pressure | 1.0 MPa | |||||||
| Min. operating pressure | 0.08 MPa | |||||||
| Ambient and fluid temperatures |
Without auto switch: –10 to 70°C (No freezing) With auto switch: –10 to 60°C (No freezing) |
|||||||
| Lubrication |
Not required (Non-lube) |
|||||||
| Operating piston speed | 50 to 1000 mm/s | |||||||
Allowable stroke tolerance |
0 - 500 | +2 mm | ||||||
| 501 - 1000 | +2.4 mm | |||||||
| 1001 - 1500 | +2.8 mm | |||||||
| 1501 - 2000 | +3.2 mm | |||||||
| Cushion | Air cushion on both ends + Bumper cushion | |||||||
| Port size |
G 1/8 | G 1/4 | G 1/4 | G 3/8 |
G 3/8 | G 1/2 |
||
| Mounting |
Basic, Axial foot, Rod flange, Head flange, Single clevis, |
|||||||
