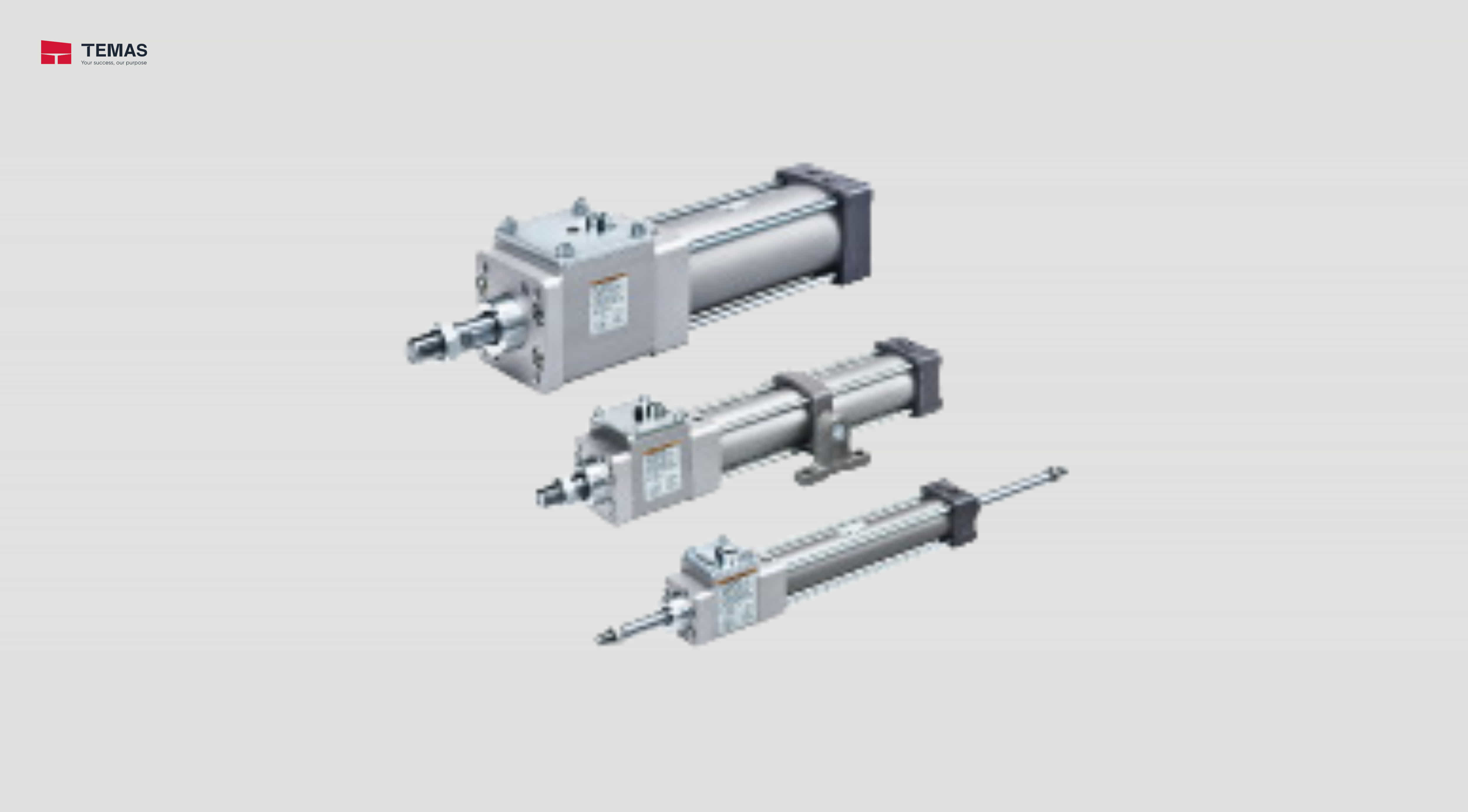

| Type | Series | Action | Bore size (mm) | Lock mechanism | Applicable rod size(mm) | Lock holding force (Max. static load)（N） |
|---|---|---|---|---|---|---|
| Standard | MWB | Double acting, Single rod | 32，40，50，63，80，100 | Exhaust locking | － | － |
| Standard | MWBW | Double acting, Double rod | 32，40，50，63，80，100 | Exhaust locking | － | － |
| － | MWB-UT | － | － | － | 12，16，20，25，30 | 630 to 6080 |
| Specifications | MWB | |||||
|---|---|---|---|---|---|---|
| Bore size | 32 | 40 | 50 | 63 | 80 | 100 |
| Action | Double acting, Single rod | |||||
| Proof pressure | 1.5 MPa | |||||
| Max. operating pressure | 1.0 MPa | |||||
| Min. operating pressure | 0.08 MPa | |||||
| Ambient and fluid temperature | Without auto switch: -10 to 70°C (No freezing) With auto switch: -10 to 60°C (No freezing) | |||||
| Lubricant | Not required (Non-lube) | |||||
| Piston speed | 50 to 1000mm/s | |||||
| Stroke length tolerance | Up to 250 st: +1.0, 251 to 1000 st: +1.4, 1001 to 1500 st: +1.8, 1501 to 2000 st: +2.2 | |||||
| Cushion | Rubber bumper or Air cushion | |||||
| Port size (Rc, NPT, G) | 1/8 | 1/4 | 3/8 | 1/2 | ||
| Mounting | Basic, Axial foot, Rod flange, Head flange Single clevis, Double clevis, Center trunnion |
|||||
