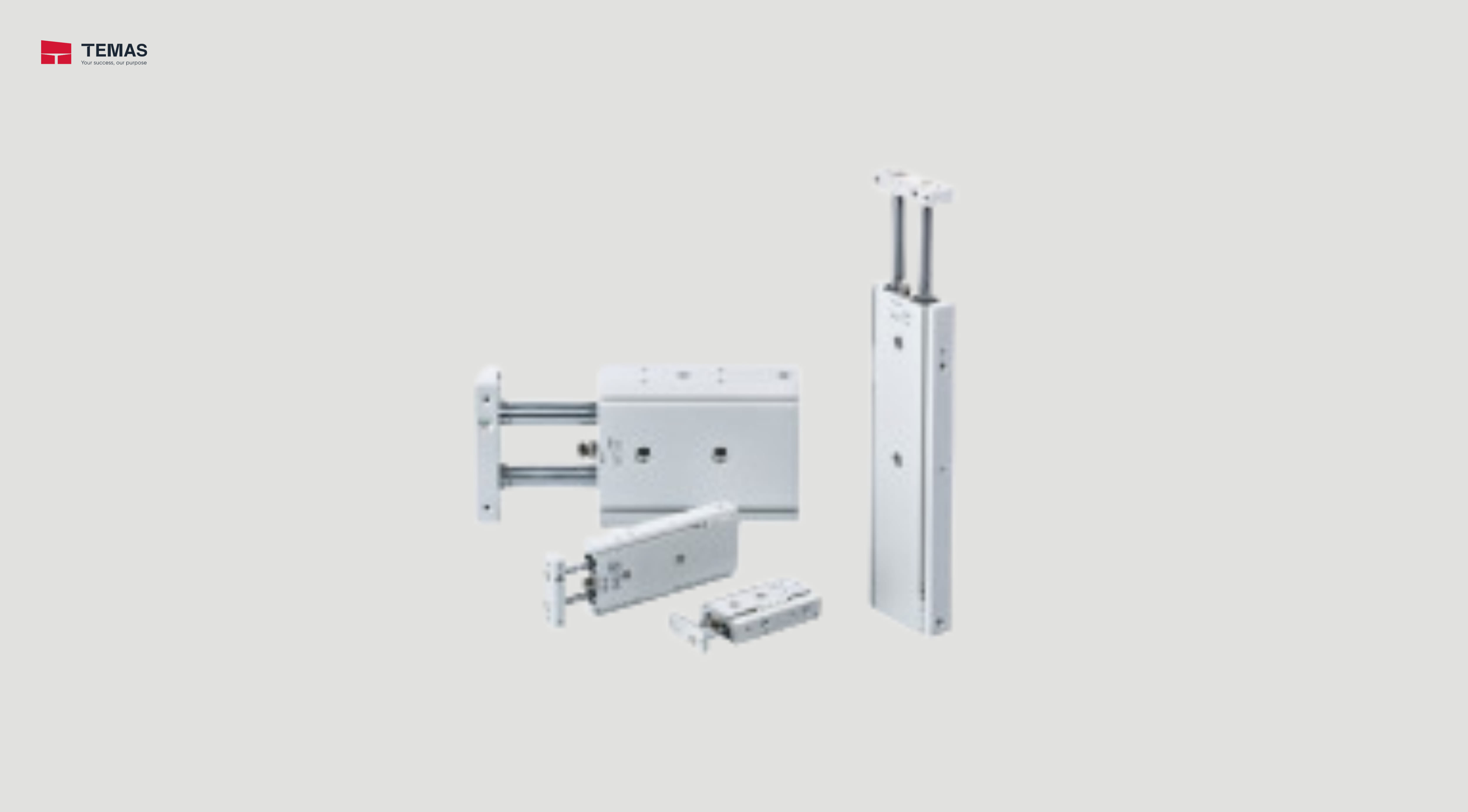

DUAL ROD CYLINDER SMC CXS2

Dual Rod Cylinder Basic Type SMC CXS2 Series Bore size: ø6, ø10, ø16, ø20, ø25, ø32 CXS2

Technical Information

Specifications CXS2
Bore size (mm) 6 10 15 20 25 32
Fluid Air (Non-lube)
Proof pressure 1.05 MPa
Maximum operating pressure 0.7 MPa
Minimum operating pressure 0.15 MPa 0.1 MPa 0.05 MPa
Ambient and fluid temperature –10 to 60°C (No freezing)
Piston speed 30 to 800 mm/s 30 to 700 mm/s 30 to 600 mm/s
Cushion Rubber bumper
Stroke adjustable range 0 to –5 mm compared to the standard stroke
Port size M5 x 0.8
 Rc (NPT, PF) 1/8
Bearing type Slide bearing, Ball bushing bearing (Same dimensions for both)
Allowable kinetic energy 0.016 J 0.064 J 0.095 J 0.17 J  0.27 J  0.32 J
