DUAL ROD CYLINDER SMC CXSJ

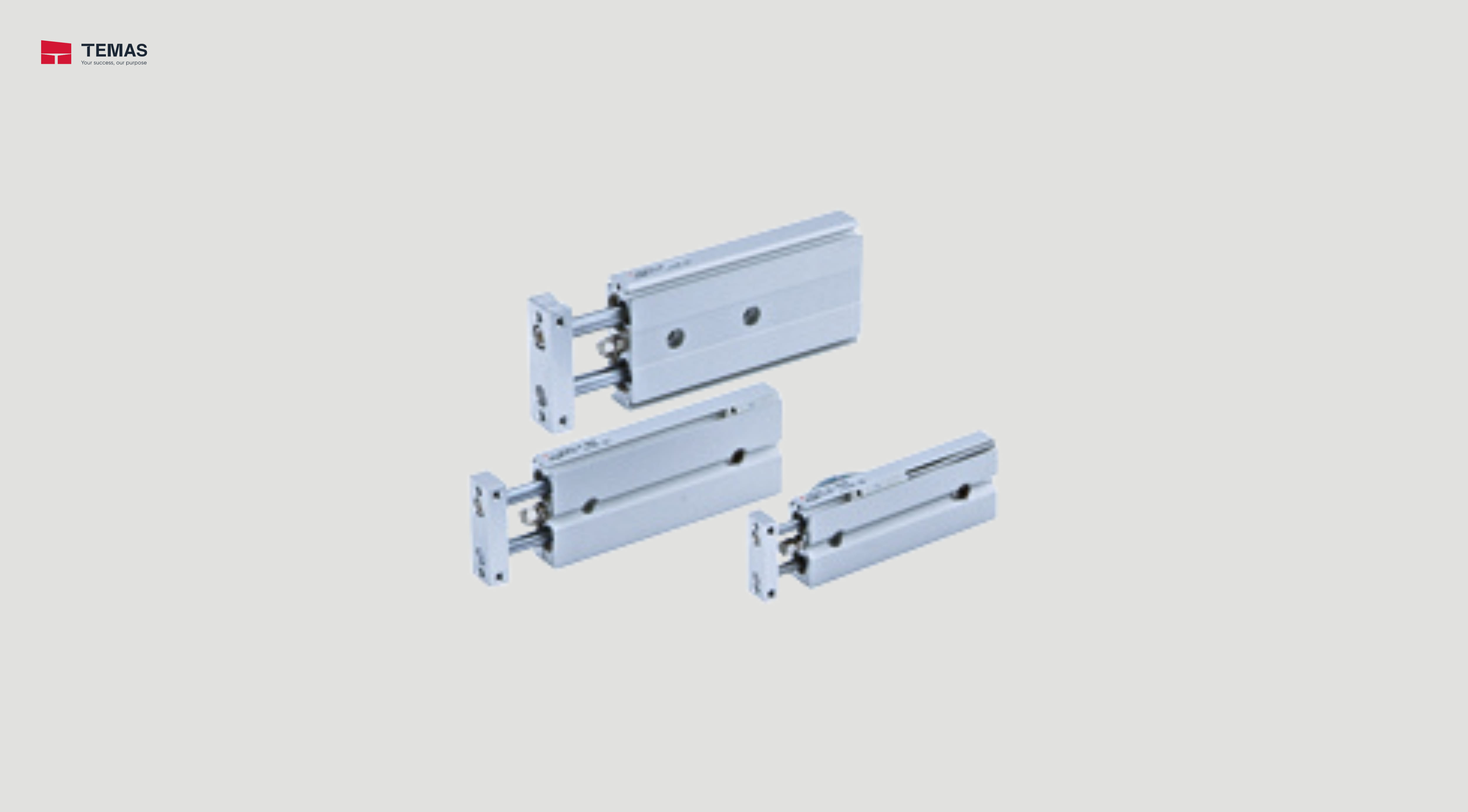

Dual Rod Cylinder Compact Type CXSJ Series ø6, ø10, ø15, ø20, ø25, ø32

Technical Information

Type Bearing Series Action Bore size (mm)
Standard Slide bearing CXSJM Double acting 6，10，15，20，25，32
Standard Ball bushing bearing CXSJL Double acting 6，10，15，20，25，32
Specifications CXSJ
Bore size (mm) 6 10 15 20 25 32
Fluid Air (Non-lube)
Proof pressure 1.05 MPa
Maximum operating pressure 0.7 MPa
Minimum operating pressure 0.15 MPa 0.1 MPa 0.05 MPa
Ambient and fluid temperature –10 to 60°C (No freezing)
Piston speed 30 to 800 mm/s 30 to 700 mm/s 30 to 600 mm/s
Cushion Rubber bumper on both ends
Stroke adjustable range 0 to –5 mm compared to the standard stroke
Port size M3 x 0.5 M5 x 0.8 Rc (NPT, PF) 1/8
Allowable kinetic energy 0.016 J 0.064 J 0.095 J 0.17 J  0.27 J  0.32 J
