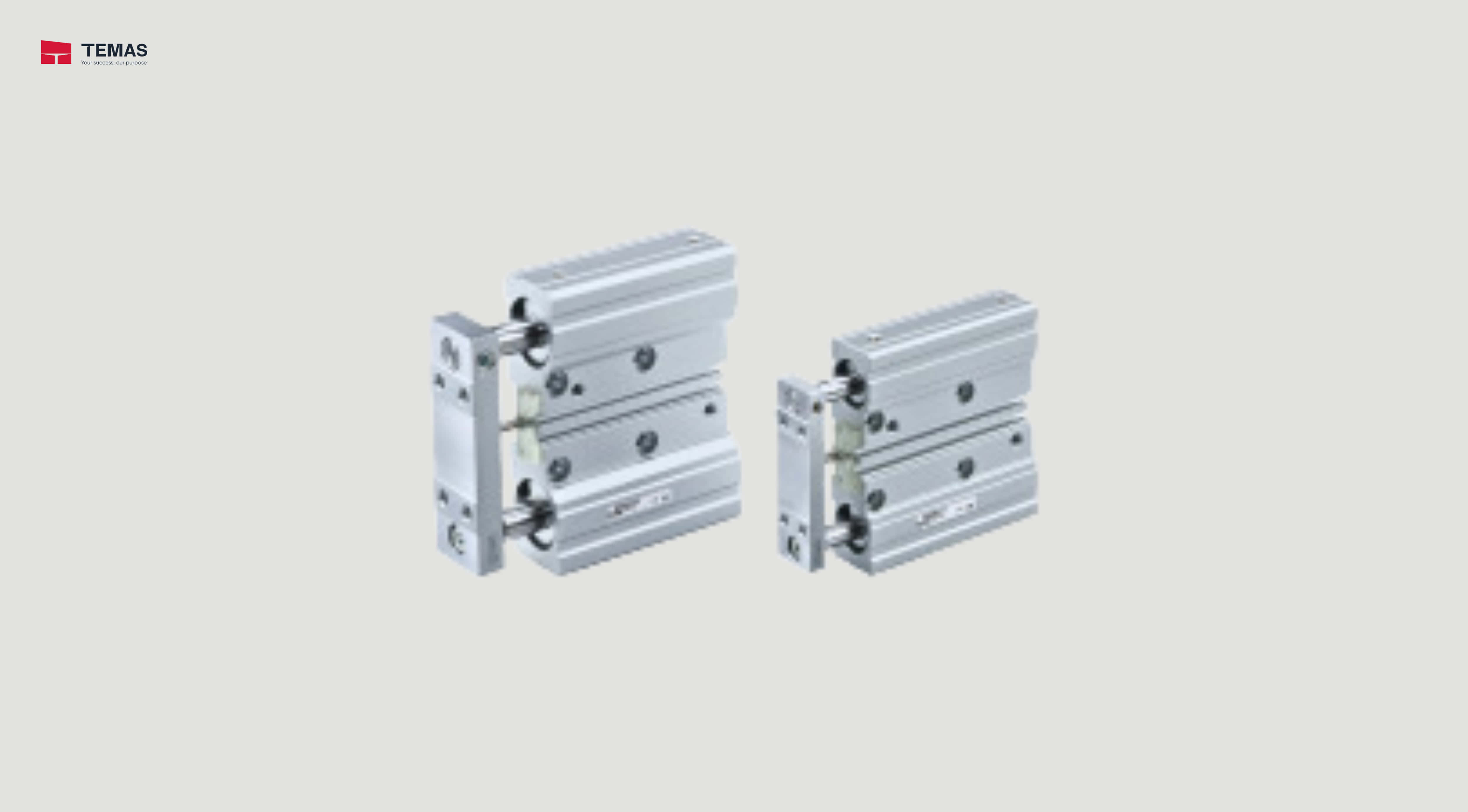

DUAL ROD CYLINDER SMC JMGP

Dual Rod Cylinder SMC JMGP Series bore size: ø12, ø16, ø20, ø25, ø32, ø40, ø50, ø63, ø80, ø100

Technical Information

 Specifications JMGP
Bore size ø12
(ø10 x 2)		 ø16
(ø12 x 2)		 ø20
(ø16 x 2)		 ø25
(ø20 x 2)		 ø32
(ø25 x 2)		 ø40
(ø32 x 2)		 ø50
(ø40 x 2)		 ø63
(ø45 x 2)		 ø80
(ø56 x 2)		 ø100
(ø71 x 2
Action Double acting
Fluid Air
Proof pressure 1.05 MPa
Max. operating pressure 0.7 MPa
Min. operating pressure 0.15 MPa
Ambient and fluid temperatures 5 to 60°C
Piston speed 50 to 300 mm/s 50 to 250 mm/s
Cushion Rubber bumper on both ends
Lubrication Not required (Non-lube)
Stroke length tolerance +1.5 mm
