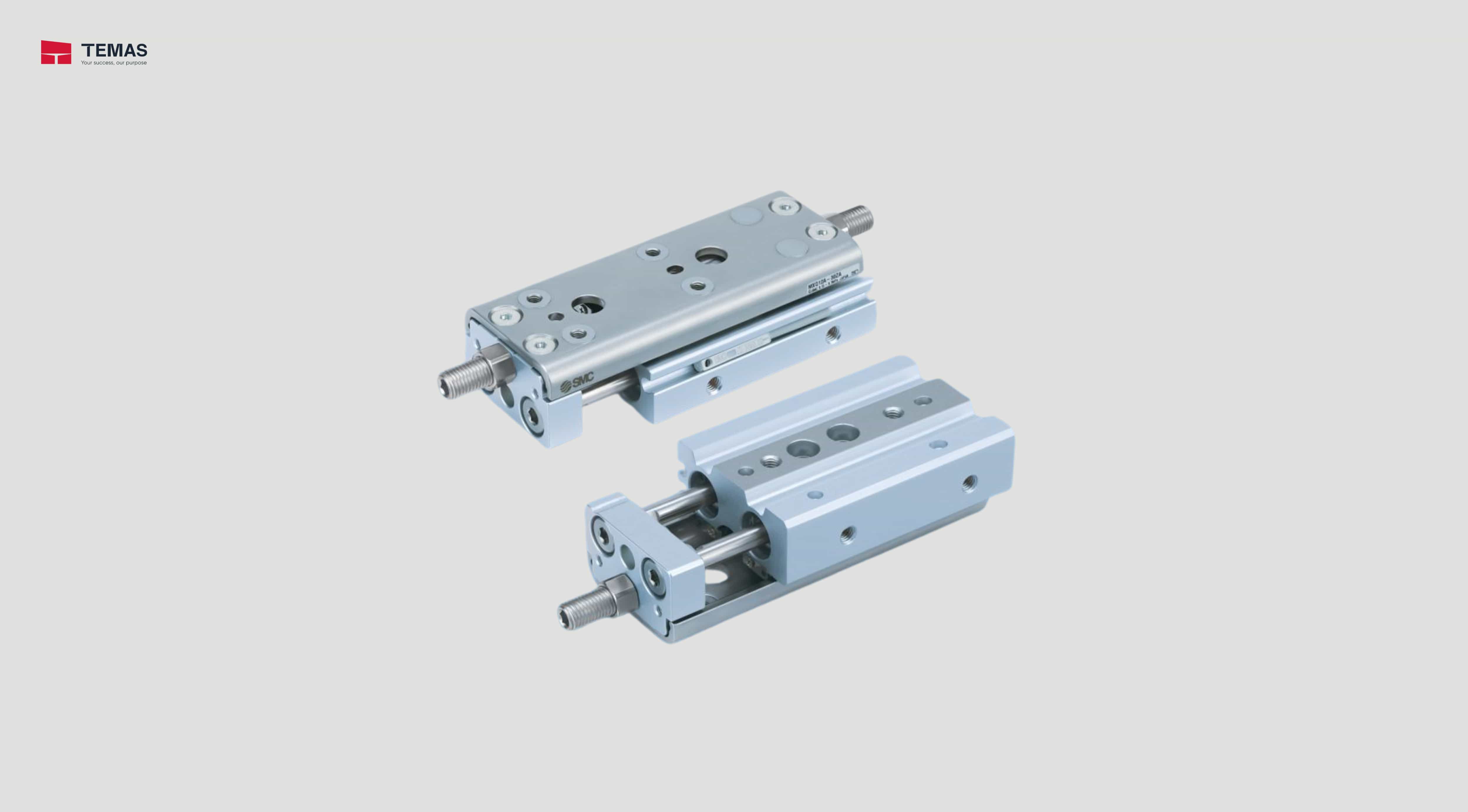

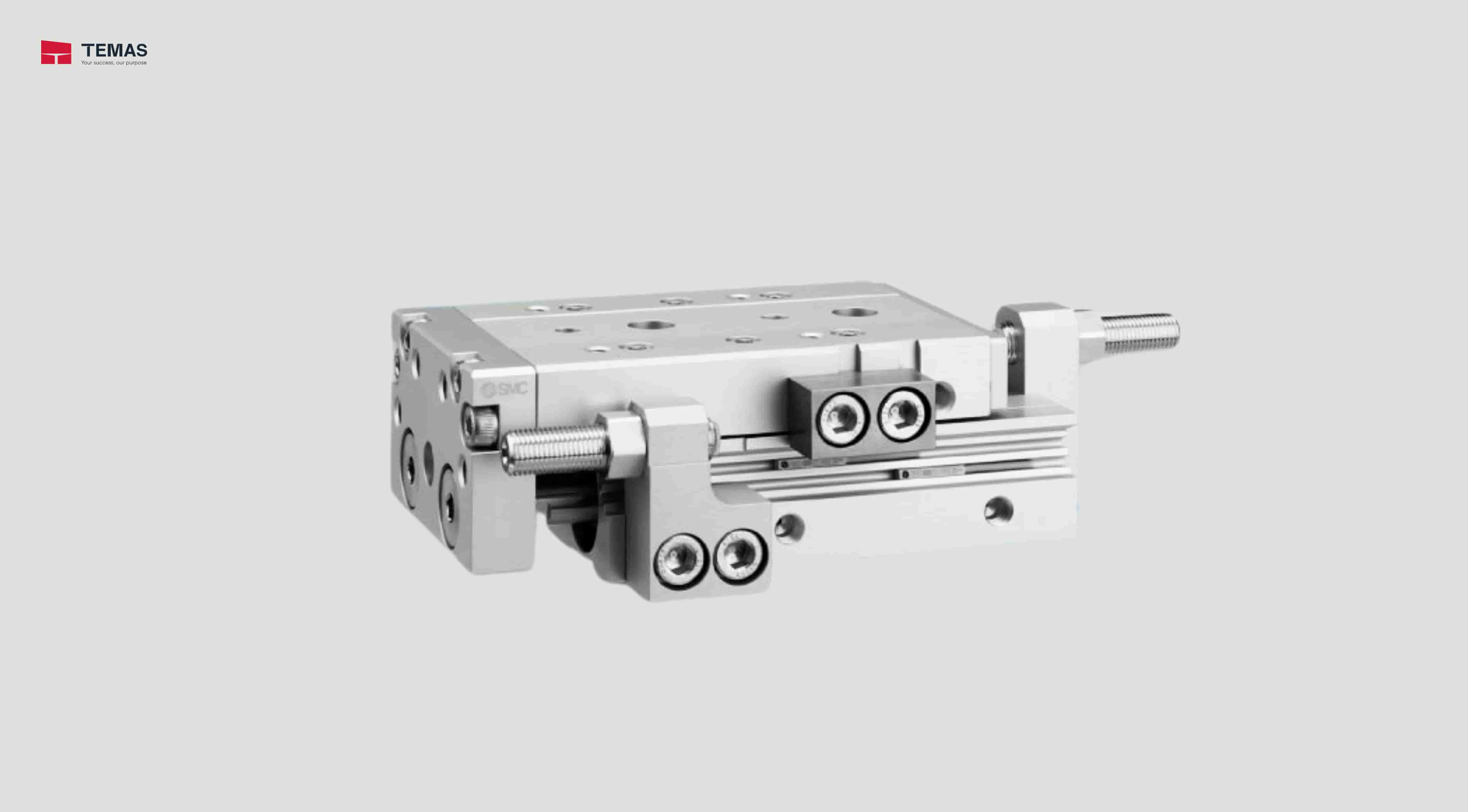

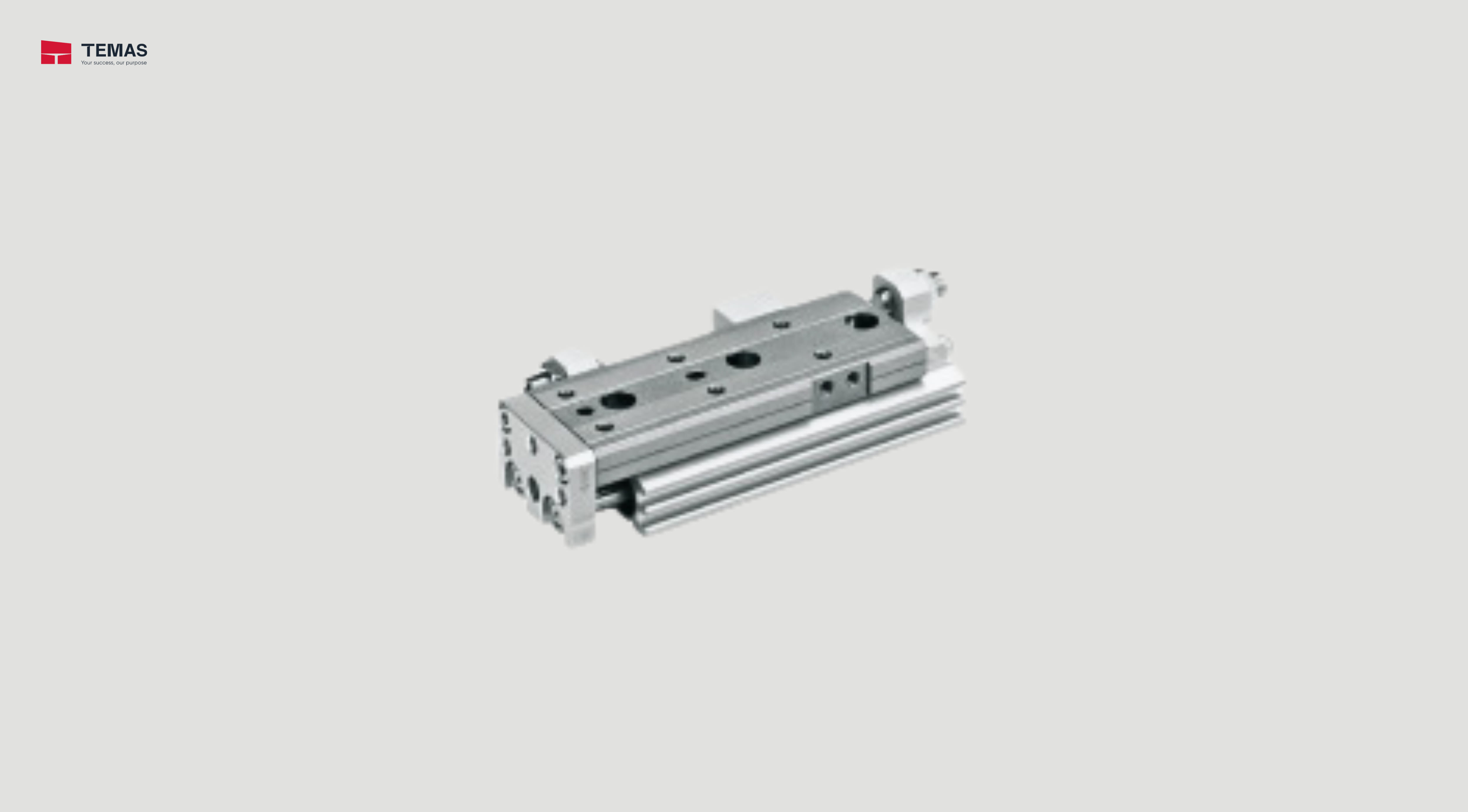

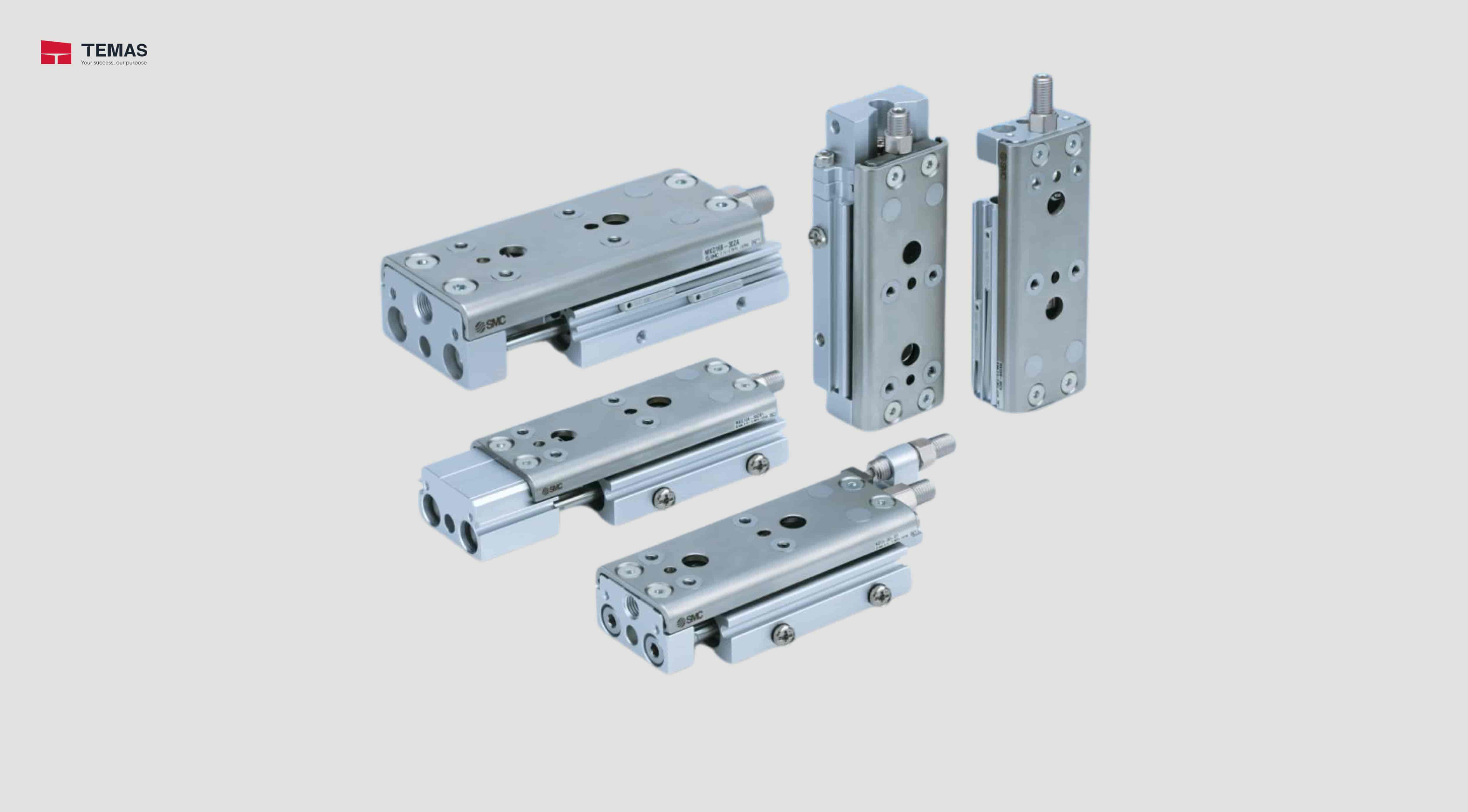

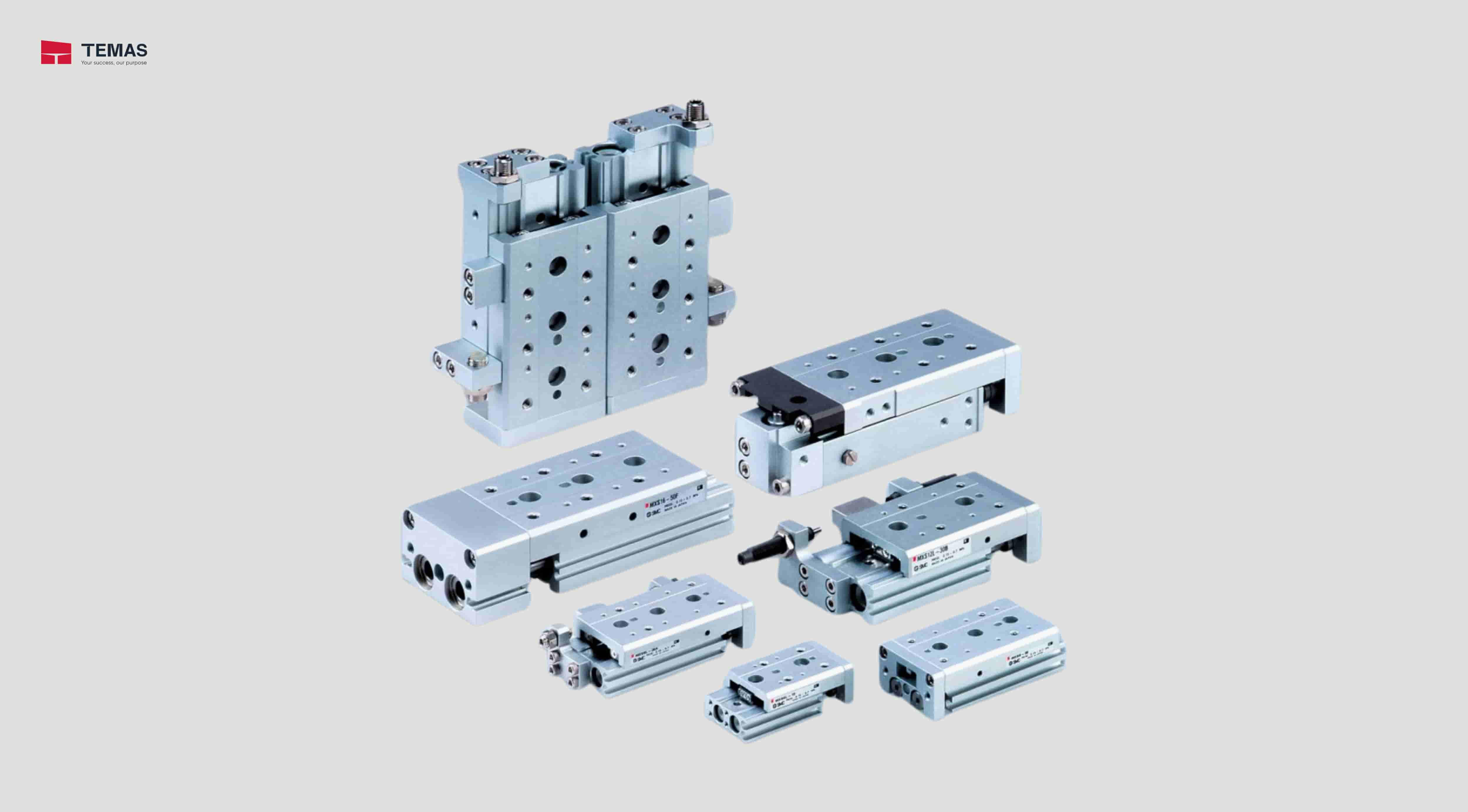

DUST RESISTANT CYLINDER SMC MXQ-XC4A

Dust Resistant Cylinder SMC MXQ-XC4A, Bore size ø6, ø8, ø12, ø16, ø20, ø25

Technical Information

Type Series Action Bore size (mm)
Standard MXQ-XC4A Double acting 6，8，12，16，20，25
Symmetric MXQ□L-XC4A Double acting 6，8，12，16，20，25
Specifications MXQ-XC4A
Bore size [mm] 6 8 12 16 20 25
Piping port size M5 x 0.8 Rc1/8
Fluid Air
Action Double acting
Operating pressure 0.3 to 0.7 MPa 0.15 to 0.7 MPa
Proof pressure 1.05 MPa
Ambient and fluid temperatures −10 to 60°C
Operating speed range
(Average operating speed)∗1		 50 to 200 mm/s
Applicable powder particle size 20 to 50 µm
Lubrication Non-lube
Stroke length tolerance +1 mm
