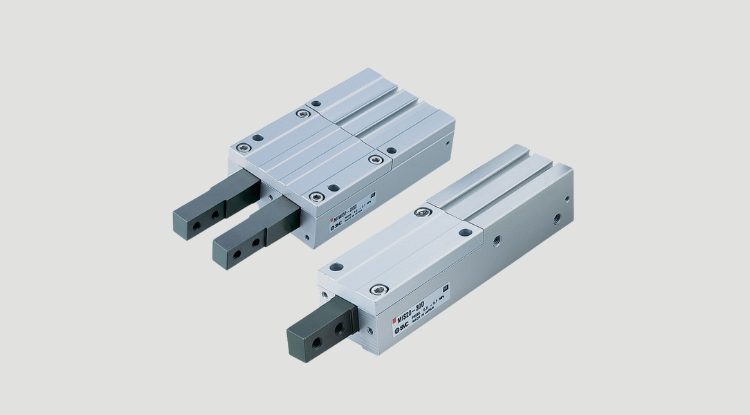

ESCAPEMENTS SMC MIW, MIS

Escapements SMC MIW MIS bore size: ø8, ø12, ø20, ø25, ø32

Technical Information

Type Series Action Bore size（mm）
2-finger type MIW Double acting 8，12，20，25，32
1-finger type MIS Double acting 8，12，20，25，32
Series MIW (Double finger)  MIS (Single finger)
Fluid Air
Operating pressure 0.2 to 0.7 MPa
Ambient temperature and fluid temperature –10 to 60°C (No freezing)
Lubrication Non-lube
Action Double acting
Auto switch (optional) Note) Solid state auto switch (3-wire, 2-wire)
Stroke tolerance +1 mm
