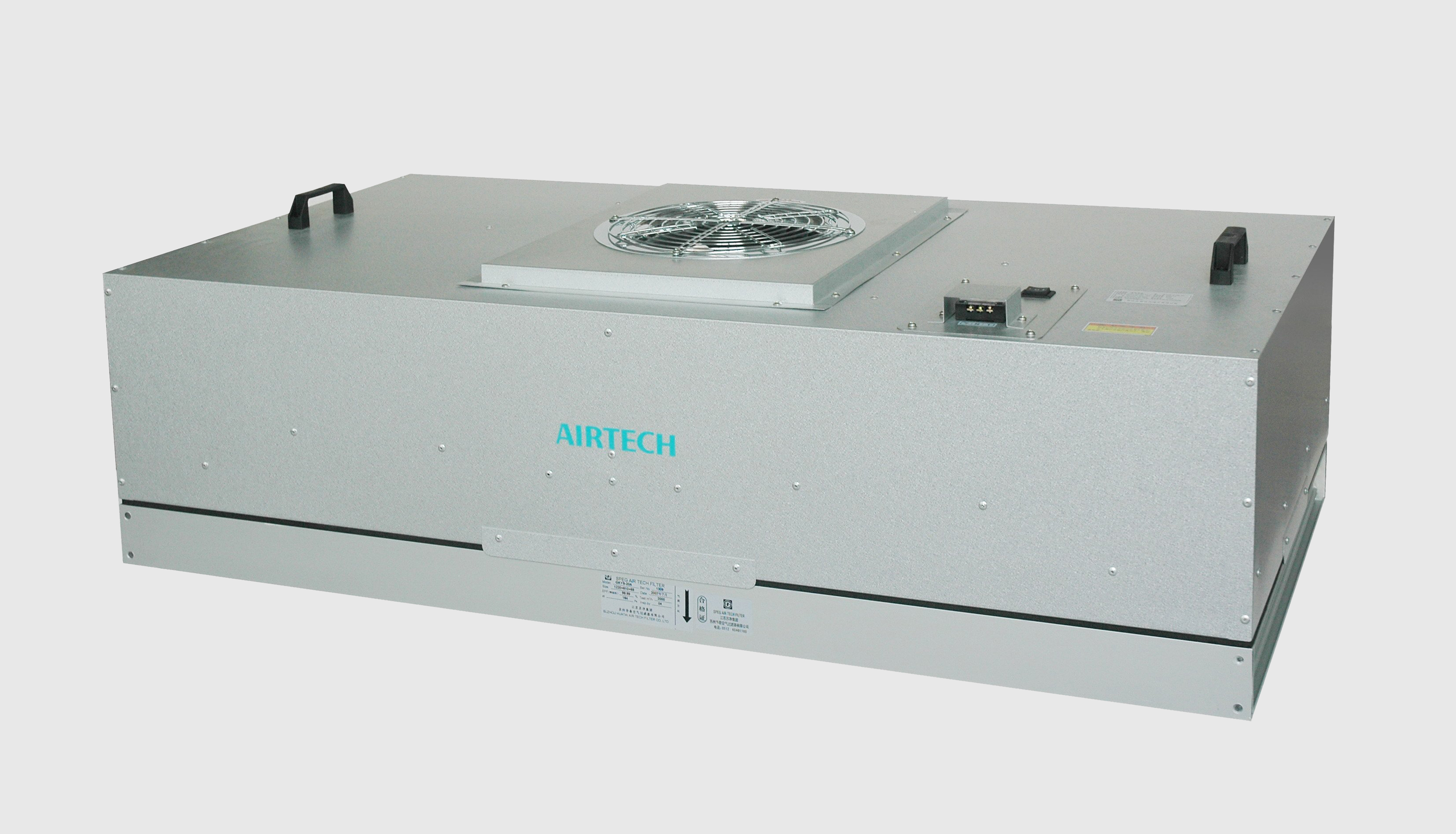

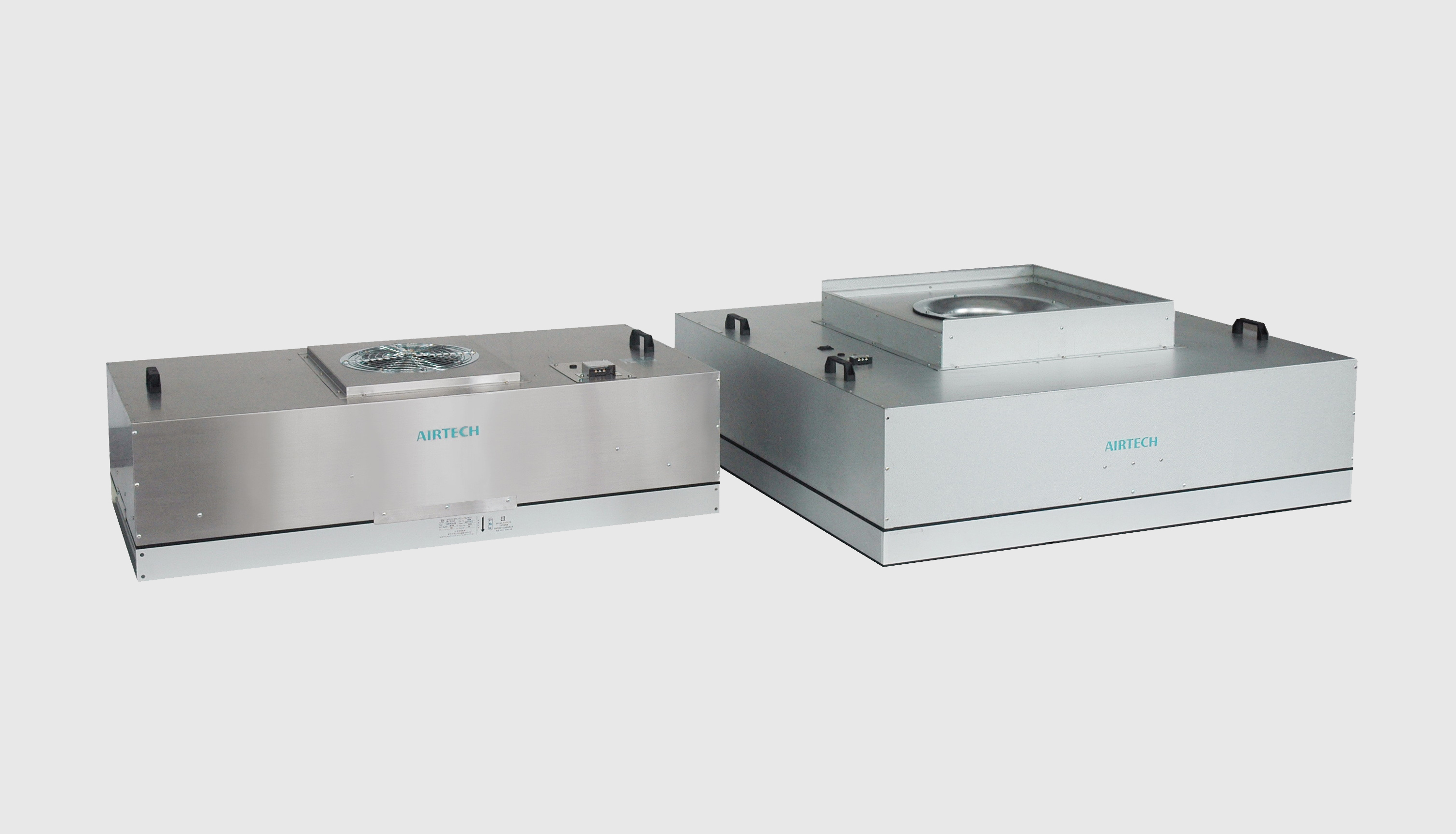

FAN FILTER UNIT AIRTECH FFU SERIES

Fan Filter Unit (FFU) has extensive application in electronics and biological industries that require air clean environment.

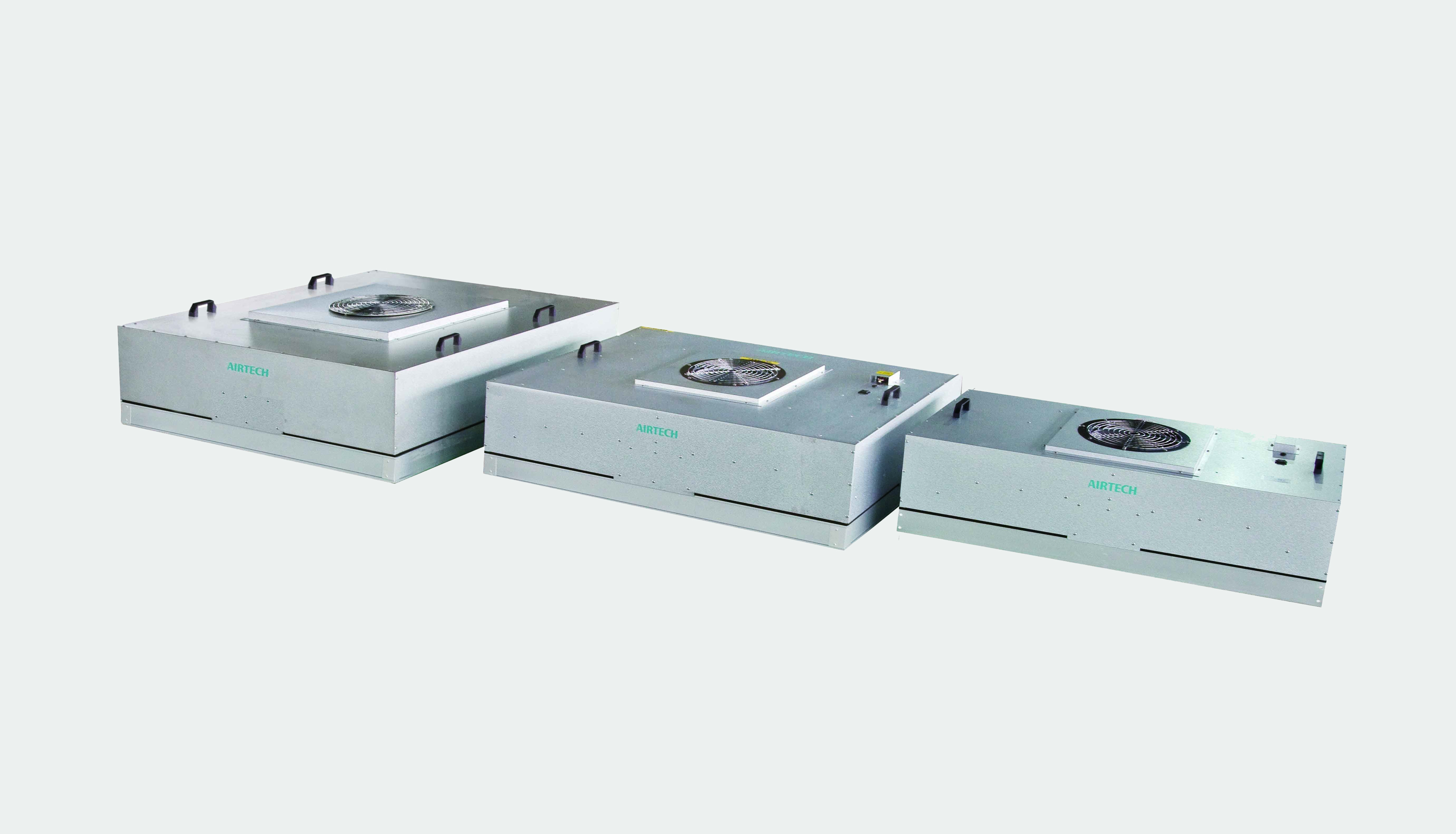

Model: FFU-4x2, FFU-4x3, FFU-4x4

It adopts AT fan with low noise and high efficiency, energy-saving, no maintenance, high reliability and long life.
Optimized capacity and distributaries guided whirl tube reduce the overall height and enhance the uniformity of air blow-out.
Large suitable interval of air velocity and volume can satisfy the requirements of different types of clean environment. It is also suitable for use where high air velocity is required for Class A area of biology and pharmacy.
It adopts low resistivity filter that can provide 75-120Pa excess pressure outside the product under rated airflow, which meets the need of high resistivity of return air in the clean room.

Model	FFU-4X2	FFU-4X3	FFU-4X4
Dimensions (LXWXH) (mm)	1175x575x215	1175x875x215	1175x1175x290
Dim. of HEPA (mm)	1170x570x69	1170x870x69	1170x1170x80
Air velocity	0,35 ~ 0,45 m / s
Rated power	≤100 w	≤130 w	≤200 w
Noise	48 dB (A)	54 dB (A)	56 dB (A)
Material	Al-Zn coated steel sheet/ SUS304 / SUS430
Power supply	AC220V, 1φ, 50Hz
Excess Pressure Outside the Product	50 ~ 120 Pa
Blower Type	AC / DC
Fan	AT
Filter Grade	H13 / H14
Optional Filter Garde	U15
Lose of Pressure of Filter	88 ~ 120 Pa
Medium	Non-flammable galss fiber
Frame of Filter	Anodization of aluminum alloy
Filter Screen	Double side
Speed Control	Three/Five Speed Controller/Variable Speed Controller
Weight	29 Kg	43 Kg	50 Kg
Remark	EBM Fan can be choose
