| Type | Series | Action | Bore size (mm) | Lock mechanism |
|---|---|---|---|---|

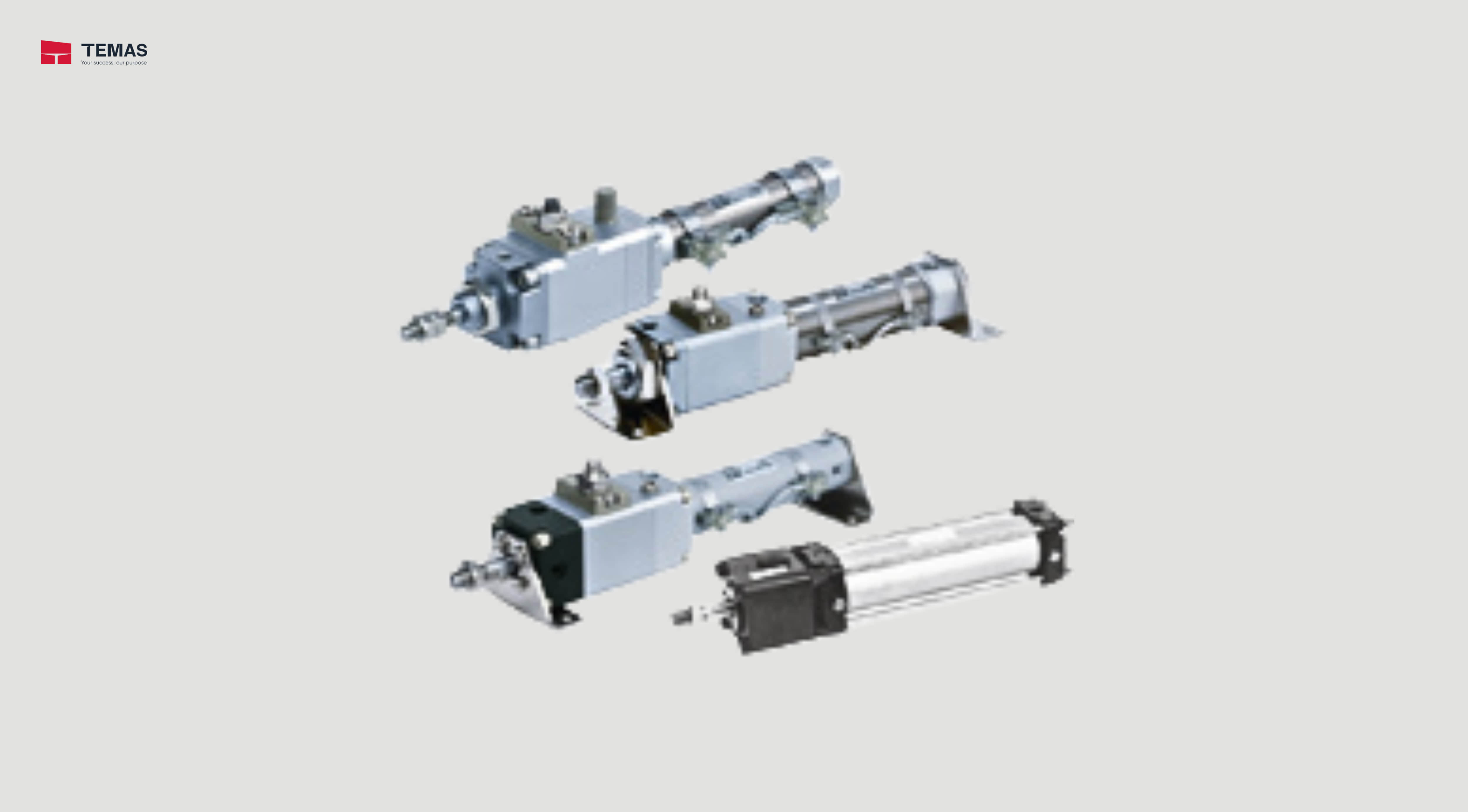

| Fine lock cylinder |
CLJ2 | Double acting, Single rod |
16 | Spring lock, Air pressure lock, Spring/Air pressure lock |
| Fine lock cylinder |
CLM2 | Double acting, Single rod |
20，25，32，40 | Spring lock, Air pressure lock, Spring/Air pressure lock |
| Fine lock cylinder |
CLG1 | Double acting, Single rod |
20，25，32，40 | Spring lock, Air pressure lock, Spring/Air pressure lock |
| Lock-up cylinder |
CL1 | Double acting, Single rod |
40，50，63，80，100 125，140，160 |
Spring lock |
| Specifications | CL□, CDL□ |
|
|---|---|---|
| Bore size (mm) | ø40 to ø100 | ø125 to ø160 |
| Proof pressure | 1.5 MPa | 1.57 MPa |
| Maximum operating pressure | 1.0 MPa | 0.97 MPa |
| Minimum operating pressure | 0.08 MPa | |
| Piston speed | 50 to 200 mm/s | |
| Ambient and fluid temperature |
Without auto switch –10 to 70 C With auto switch –10 to 60 C (No freezing) |
Without auto switch 0 to 70 C With auto switch 0 to 60 C (No freezing) |
| Lubrication | Not required (Non-lube) | |
| Cushion | Air cushion | |
| Stroke length tolerance | Up to 250+1.0, 251 to 1000+1.4, 1001 to 1500+1.8 1501 to 1600+2.2 | |
| Mounting | Basic type , Axial foot type, Rod side flange type Head side flange type, Single clevis type Double clevis type, Center trunnion t |
|
