Flash light controllers visco

Technical Information

Model	VTVFC-V-06- (6-channel)**	VTVFCV-0648- (6-channel)**	VTVFCV-1248- (12-channel)**
Number of lighting connections	6	6	12
Input voltage	DC24V	DC24V	DC24V
Rated output	When only O.D is selected: output current of 3.75 A max When only 24 V is selected: output power of 156 W max O.D+ When mixing 24 V: output current of 3.25 A max and output power of 156 W max	48 V O.D: output current of 10 A max per channel and total output current of 50 A max	48 V O.D: output current of 10 A max per channel and total output current of 50 A max
Link function	-	-	Maximum of 10 units

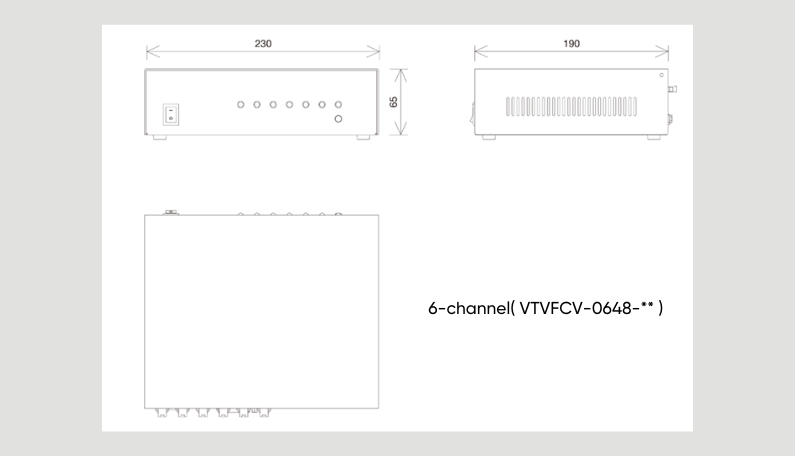

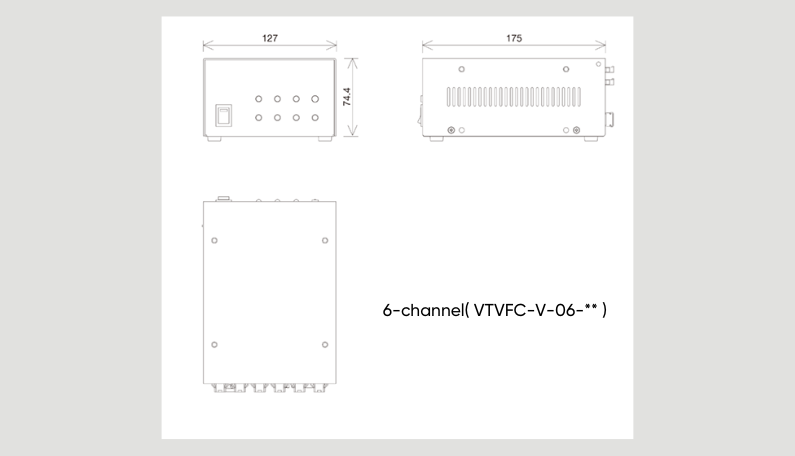

External dimensions	127（W）× 175（D）× 79.4（H）mm 5（W）× 6.9（D）× 3.1（H）inch*1	230（W）× 190（D）× 70（H）mm 9.1（W）× 7.5（D）× 2.6（H）inch*1	230（W）× 190（D）× 70（H）mm 9.1（W）× 7.5（D）× 2.6（H）inch*1
Weight	775 g	1230 g	1320 g
Power consumption	<160W	300W	300W

*1 Values do not include protruding parts
* It does not include projections in external dimensions.
