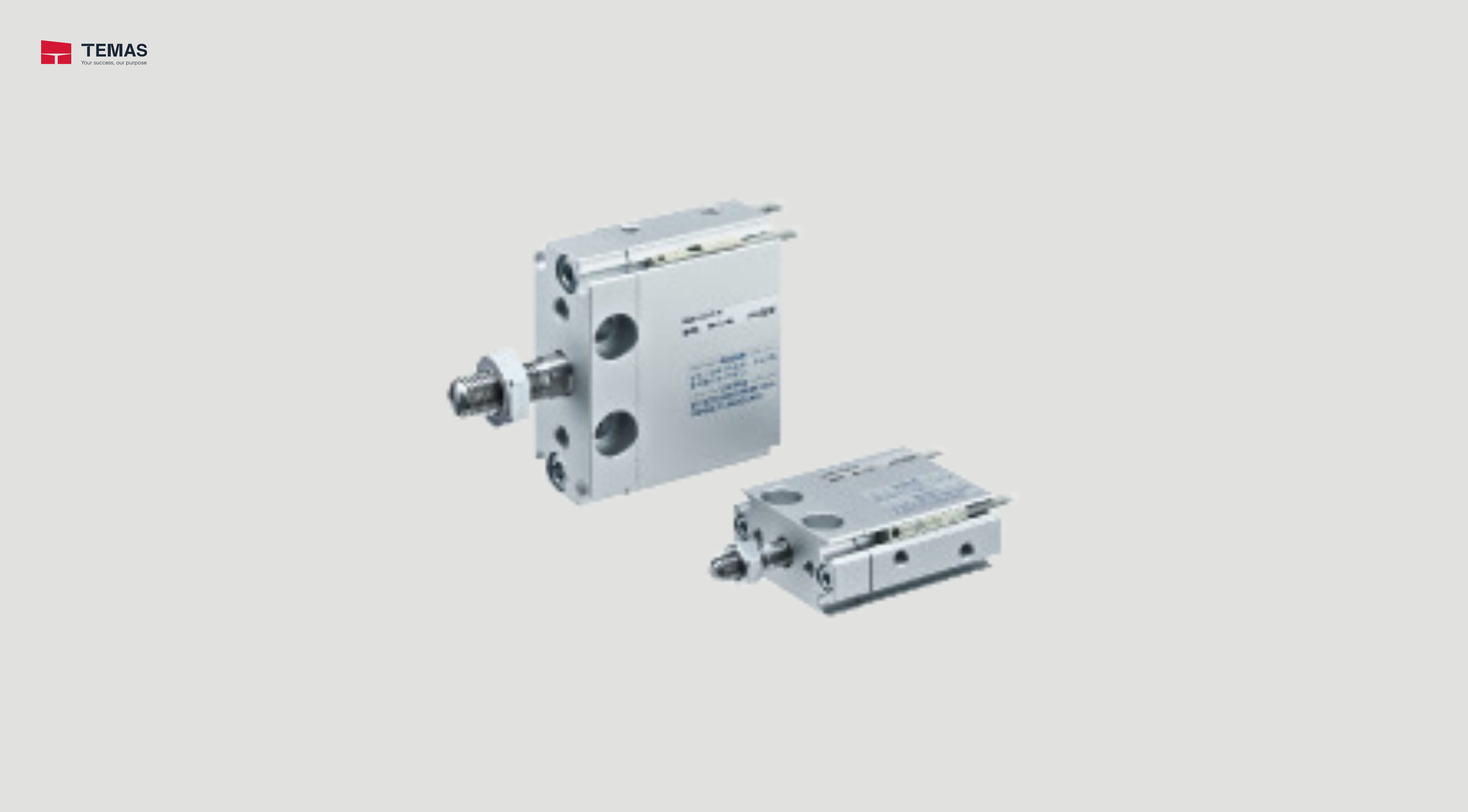

FREE MOUNT CYLINDER COMPACT TYPE CDU-X3178

Free Mount Cylinder Compact Type SMC CDU-X3178 Size ø20, 32

Technical Information

Type Series Action Bore size (mm)
Compact type CDU-X3178 Double acting single rod 20，32
Specifications CDU-X3178
Size 20 (Equiv. ø20 piston area)  32 (Equiv. ø32 piston area)
Fluid Air
Proof pressure 1.0 MPa
Max. operating pressure 0.7 MP
Min. operating pressure 0.05 MPa
Ambient and fluid
temperatures		 −10 to 60°C (No freezing)
Lubrication Not required (Non-lube)
Piston speed 50 to 500 mm/s
Cushion Rubber bumper
Rod end thread Male thread
Stroke length tolerance +1.0mm
Rod non-rotating accuracy ±1° ±0.8°
