| Lace type | RC, NPT, G |
| lace size | 1/4, 3/8 |
| Auto Discharger | N.O. (Normally open) The discharge port opens when there is no pressure |
| Pressure Gauges | Internal pressure gauge with limit alarm |
| Model | AC10-A | AC20-A |
AC25-A |
AC30-A |
AC40-A |
AC40-06-A |

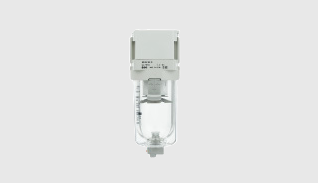

| Air Filter [AF] | AF10-A | AF20-A |
AF25-A |
AF30-A |
AF40-A |
AF40-06-A |

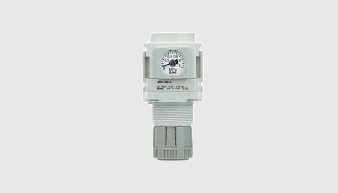

| Regulator [AR] | AR10-A | AR20-A |
AR25-A |
AR30-A |
AR40-A |
AR40-06-A |
| Lubricator [AL | AL10-A | AL20-A |
AL25-A |
AL30-A |
AL40-A |
AL40-06-A |
| Port size | M5 X 0.8 | 1/8, 1/4 | 1/4, 3/8 | 1/4, 3/8 | 1/4, 3/8, 1/2 | 3/4 |
| Pressure gauge port size [AR] | 1/6 | 1/8 | ||||
| Fluid | Ari | |||||
| Ambient and fluid temperature | –5 to 60 °C (with no freezing) | |||||
| Proof pressure | 1.5 MPa | |||||
| Max. operating pressure | 1.0 MPa | |||||
| Set pressure range [AR | 0.05 to 0.7 MPa | |||||
| Nominal filtration rating [AF] | 5um | |||||
| Recommended lubricant [AL] | Class 1 turbine oil (ISO VG32) | |||||
| Bowl material [AF/AL] | Polycarbonate | |||||
| Bowl guard [AF/AL] | Semi-standard (Steel) | Standard (Polycarbonate) | ||||
| Construction[AR] | Relieving type | |||||
| Weight (kg) | 0.27 | 0.40 | 0.68 | 0.83 | 1.53 | 1.66 |
