GUIDE TABLE SMC MGF

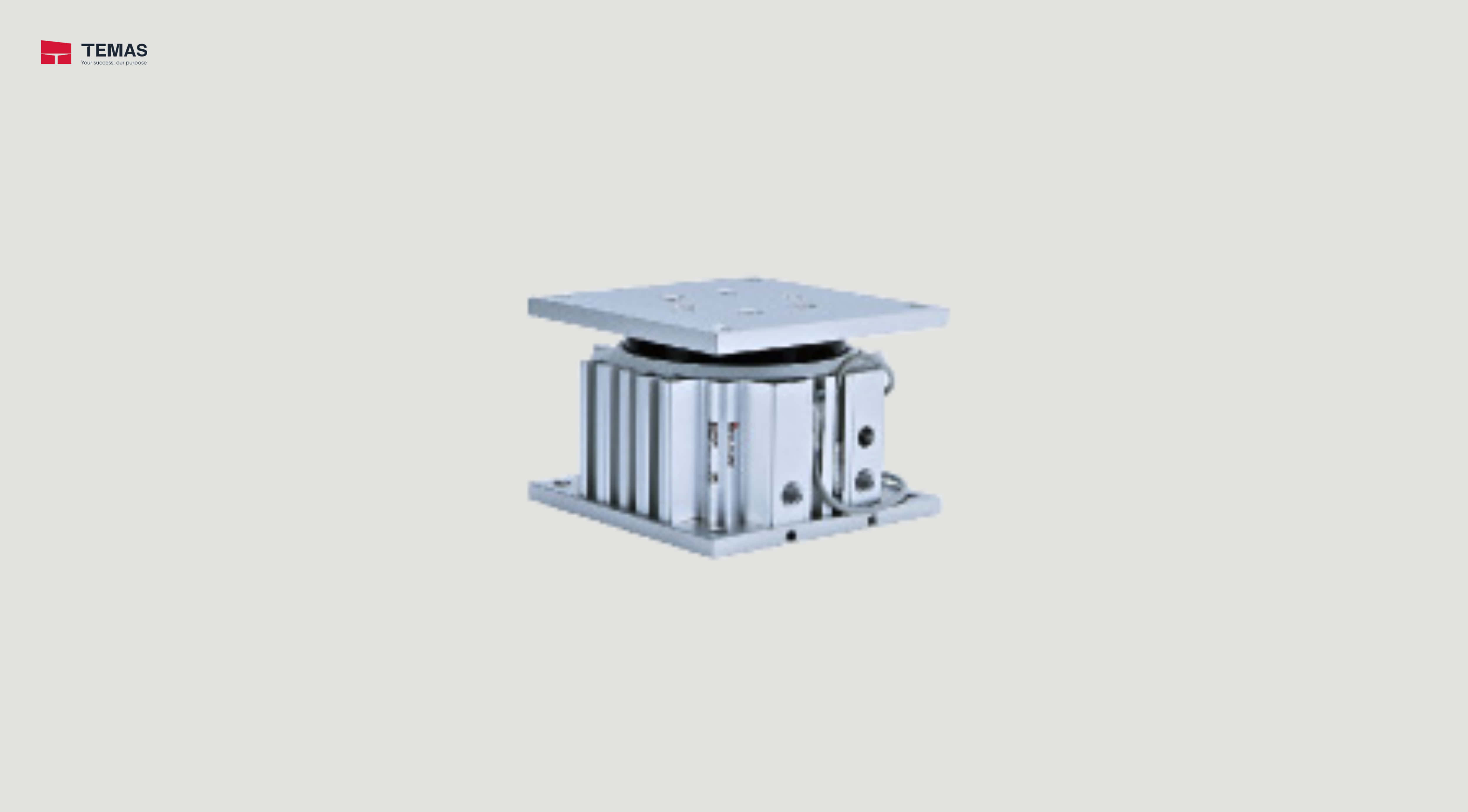

Guide Table SMC MGF Series bore size ø40, ø63, ø100

Technical Information

Specifications MGF
Bore size [mm] 40 63 100
Action Double acting
Fluid Air
Proof pressure 1.5 MPa
Maximum operating pressure 1.0 MPa
Minimum operating pressure 0.1 MPa
Ambient and fluid temperature

-10 to 60°C (No freezing)
Piston speed
20 to 200 mm/s
Cushion Rubber bumper on both ends
Lubrication Not required (Non-lube)
Stroke length tolerance +1.0 mm
