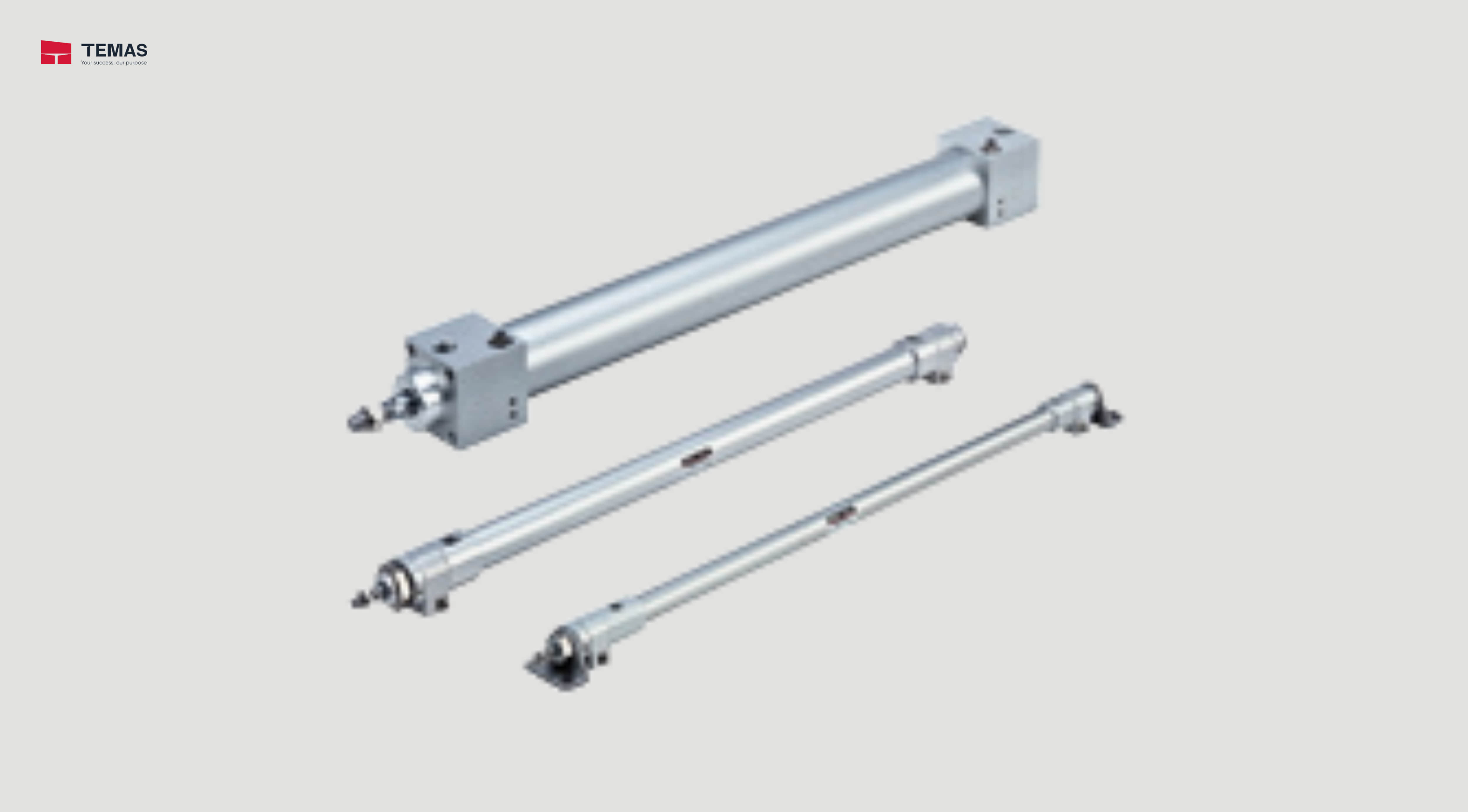

HIGH POWER CYLINDER SMC RHC

High Power Cylinder SMC RHC Bore size:  ø20, ø25, ø32, ø40, ø50, ø63, ø80, ø100

Technical Information

Type Series Action Bore size (mm)
Standard RHC Double acting, Single rod 20，25，32，40，50，63，80，100
Standard RHC-XC93 Double acting, Single rod 32，40
Specifications  RHC
Bore size (mm) 20 25 32 40 50 63 80 100
Fluid Air
Proof pressure 1.5 MPa
Maximum operating pressure 1.0 MPa
Minimum operating pressure 0.05 MPa
Ambient and fluid temperature –10 to 60°C (No freezing)
Piston speed 50 to 3000 mm/s
Cushion Air cushion
Maximum energy absorption (J) 7 12 21 33 47 84 127 196
Effective cushioning stroke (mm) 80 80 80 80 80 80 80 80
Lubrication Not required (Non-lube)
Stroke length tolerance Up to 1000 st: +1.4mm , 1001 to 1500 st: +1.8mm
Mounting Basic type, Axial foot type, Rod/Head side flange type
