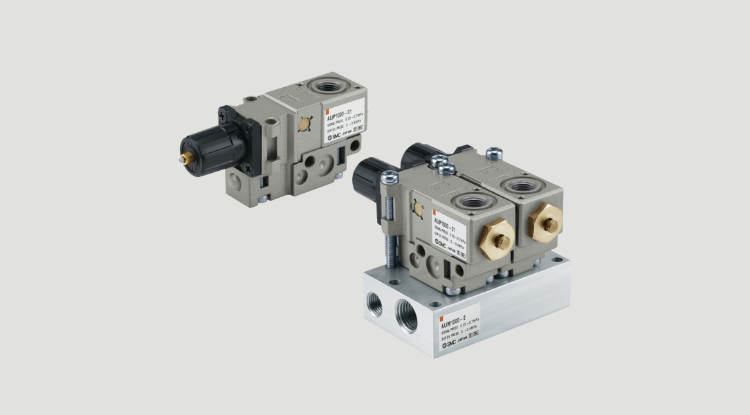

IMPULSE LUBRICATOR SMC ALIP

Impulse Lubricator SMC ALIP

Technical Information

Series Type Port size Feeding volume/cycle (cm3)
ALIP Pressure type 1/8 0 to 0.04
ALT10 Oil tank Air：1/8
Oil：1/4		 Tank capacity： 160 cm3
ALT20 Oil tank Air：1/8
Oil：1/4		 Tank capacity：1000 cm3
Model  ALIP1000-01  ALIP1100-01
Port size Rc (Nominal size) 1/8 (6A)
Proof pressure 1.0 MPa
Operating pressure range for signal pressure 0.25 to 0.7 MPa
Pressure range for oil 0 to 0.4 MPa  0.15 to 0.4 MPa
Oil viscosity 2 to 460 cst (40°C)
Ambient and fluid temperature 5 to 50°C
Oil feeding volume (1 shot) 0 to 0.04 cm3
Weight (kg) 0.22
Mounting orientation OIL OUT upward  No restriction
