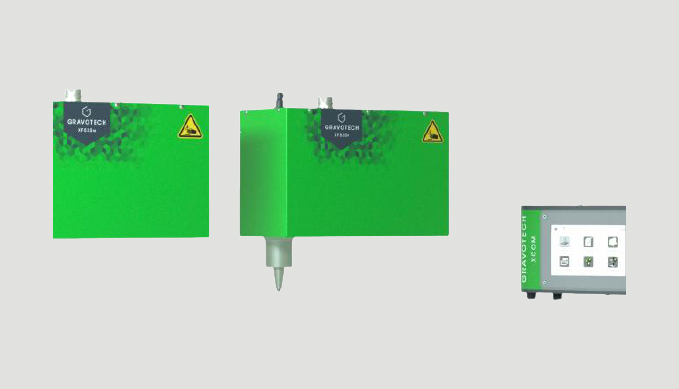

| Model | XF510 CP | XF510 SP | XF510 DP |
| Technology | Pneumatic | Pneumatic | Pneumatic |
| Dimensions (L x W x H) | 136.4 mm (5.370 in) x 86.7 mm (3.413 in) x 137 mm (5.394 in) | 219 mm (8.622 in) x 237 mm (9.331 in) x 170 mm (6.693 in) | 319 mm (12.559 in) x 237 mm (9.331 in) x 170 mm (6.693 in) |
| Marking area | 50 mm (1.968 in) x 20 mm (0.787 in) | 100 mm (3.937 in) x 80 mm (3.15 in) | 200 mm (7.874 in) x 80 mm (3.15 in) |
| Machine weight | 2.35 kg (5.181 lb) | 7.8 kg (17.196 lb) | 9.7 kg (21.385 lb) |
| Communication Interfaces | RJ45, USB(x2), RS232, 8I/4O, Process IO | RJ45, USB(x2), RS232, 8I/4O, Process IO | RJ45, USB(x2), RS232, 8I/4O, Process IO |
| Fieldbus (option) | Profinet, Ethernet IP | Profinet, Ethernet IP | Profinet, Ethernet IP |
| Embedded fonts type | 10 | 10 | 10 |
| Display | 7" color touchscreen | 7" color touchscreen | 7" color touchscreen |
| Operating Temperature | 5° to 45° (41 to 113 F) | 5° to 45° (41 to 113 F) | 5° to 45° (41 to 113 F) |
| Available languages | 19 | 19 | 19 |

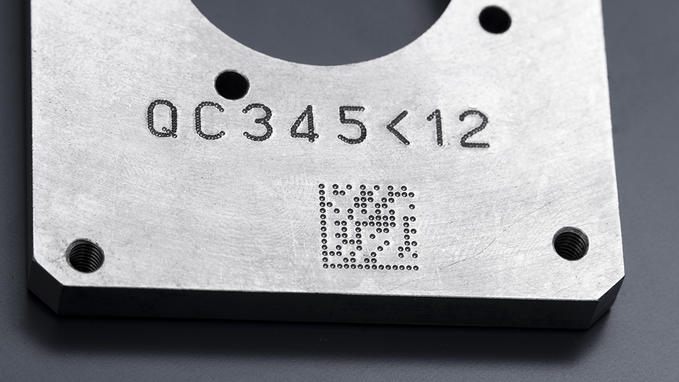

| 2D Codes | Datamatrix, QR Codes | Datamatrix, QR Codes | Datamatrix, QR Codes |
| Safety Performance Level (option) | PL d | PL d | PL d |
| Power consumption rate | 140 VA | 140 VA | 140 VA |
| Input voltage | 100 - 240 V AC | 100 - 240 V AC | 100 - 240 V AC |
| Compressed air supply | 6 bar | 6 bar | 6 bar |
