| Type | Series | Action | Bore size (mm) |
|---|---|---|---|

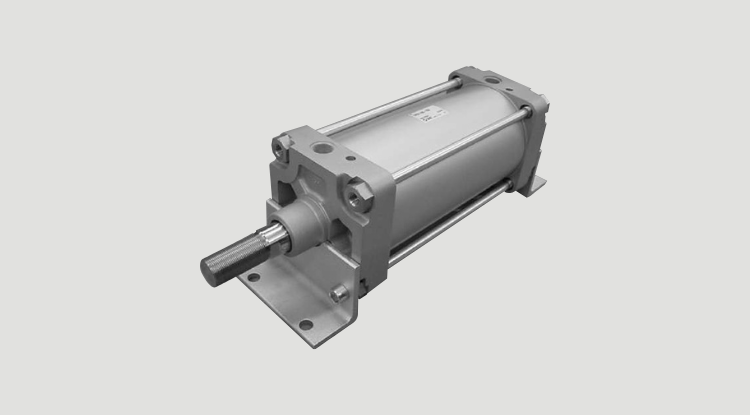

| Standard | C95 | Double acting, Single rod | 160, 200, 250 |
| Specifications | C95 | ||||
|---|---|---|---|---|---|
| Bore size (mm) | 160 | 200 | 250 | 320 | |
| Action | Double acting | ||||
| Fluid | Air | ||||
| Proof pressure | 1.5 MPa | ||||
| Max. operating pressure | 1.0 MPa | ||||
| Min. operating pressure | 0.05 MPa | ||||
| Ambient and fluid temperature | Without auto switch: –10 to 70°C (No freezing) With auto switch: –10 to 60°C (No freezing) |
||||
| Lubrication | Not required (Non-lube) | ||||
| Operating piston speed | 50 to 500 mm/sec | ||||
| Allowable stroke tolerance | 0 - 250 | +0.1 mm | +2.0 mm | ||
| 251 - 1000 | +1.4 mm | +2.4 mm | |||
| 1001 - 1500 | +1.8 mm | +2.8 mm | |||
| 1502 - 2000 | +2.2 mm | +3.2 mm | |||
| 2001 - 2400 | +2.6 mm | +3.6 mm | |||
| Cushion | Both ends (Air cushion) |
||||
| Thread tolerance | JIS Class 2 | ||||
| Port size | G 3/4 | G 1 | |||
| Mounting | Basic style, Axial foot style, Rod side flange style, Head side flange style, Single clevis style, Double clevis style, Center trunnion style |
||||
