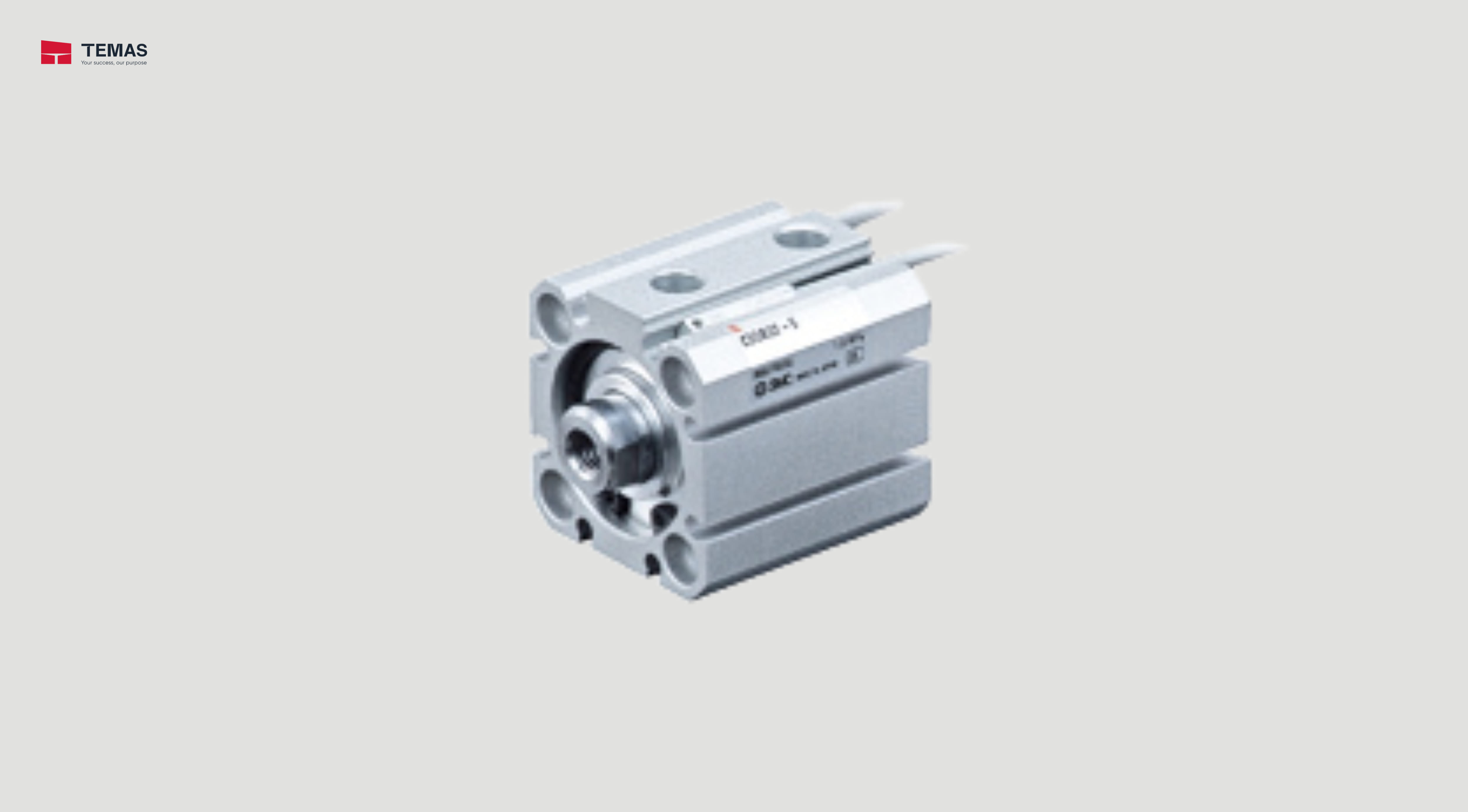

ISO STANDARD COMPACT CYLINDER SMC C55, CD55

ISO Standard Compact Cylinder Double Acting, Single Rod SMC C55 Series ø20, ø25, ø32, ø40, ø50, ø63, ø80, ø100

Technical Information

Type Series Action Bore size (mm)
Standard C55, CD55 Double acting, Single rod 20, 25, 32, 40, 50, 63, 80, 100
Specifications C55, CD55
Type Pneumatic (Non-lube)
Action Double acting, Single rod
Fluid Air
Proof pressure 1.5 MPa
Maximum operating pressure 1.0 MPa
Minimum operating pressure 0.05 MPa (ø20 to ø63), 0.03 MPa (ø80, ø100)
Ambient and fluid temperature Without auto switch: –10 to 70°C (No freezing)
With auto switch: –10 to 60°C (No freezing)
Cushion Rubber bumper on both ends
Stroke length tolerance +1.0
Piston speed ø20 to ø63 50 to 500 mm/s
ø80, ø100 50 to 300 mm/s
