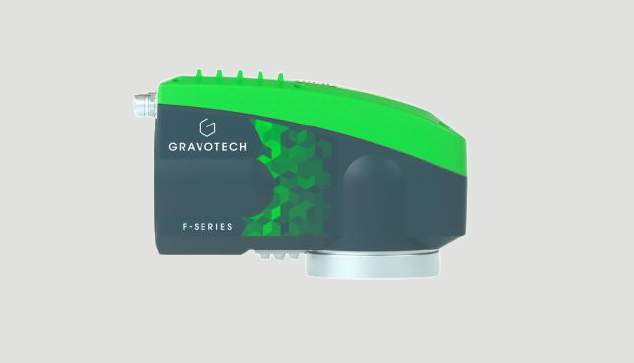

Technical Information

Model

F20 / F30 / F50

F20E / F30E

Technology

Fiber

Fiber

Laser Power

20W /30W /50W

20W /30W

Peak power

10 kW

10 kW

Frequency

2-200 Khz

30-60 kHz

Speed

Up to 10000 mm/s (393.7 in/s)

Up to 3000 mm/s (118.11 in/s)

Display

Integrated screen with control panel for: REAL-TIME SUPERVISION, EASY DIAGNOSIS, SOFTWARE UPDATES, MEMORY BACK-UP…

Integrated screen with control panel for: REAL-TIME SUPERVISION, EASY DIAGNOSIS, SOFTWARE UPDATES, MEMORY BACK-UP…

Operating temperature

10 to 40°C (50 to 104 F)

10 to 40°C (50 to 104 F)

Marking area - available lens

F100: 65 mm (2.56 in) x 65 mm (2.56 in)
F160: 110 mm (4.33 in) x 110 mm (4.33 in)
F254: 175 mm (6.89 in) x 175 mm (6.89 in)
F330: 205 mm (8.07 in) x 205 mm (8.07 in)

F160: 110 mm (4.33 in) x 110 mm (4.33 in)
F254: 175 mm (6.89 in) x 175 mm (6.89 in)

Safety performance level

PL=e



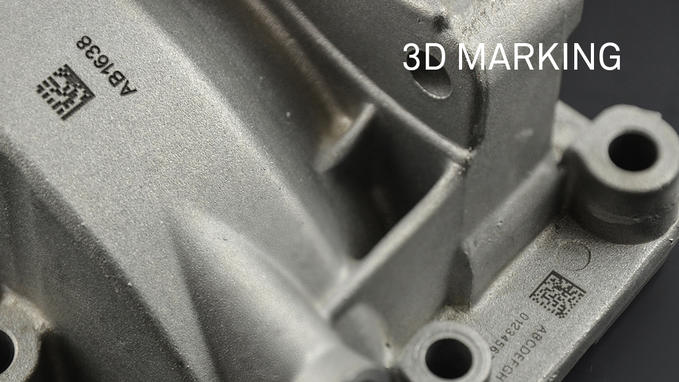

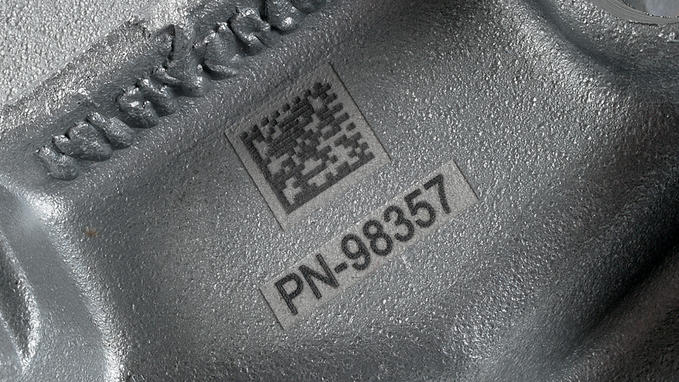

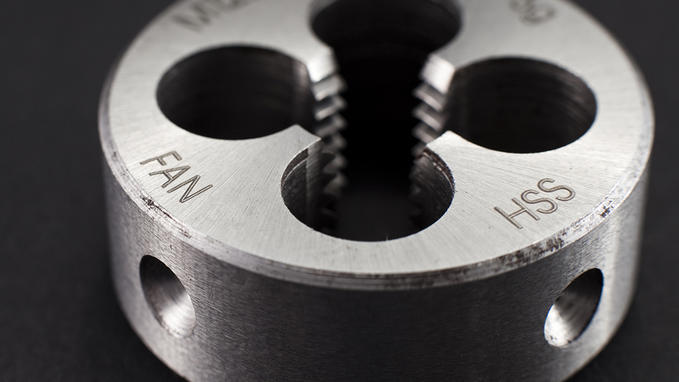

Marking specifications

+60 Gravotech fonts, Possible to convert User & TTF fonts, All formats of barcode and 2D codes, Logos

+60 Gravotech fonts, Possible to convert User & TTF fonts, All formats of barcode and 2D codes, Logos

Communication Interface (standard)

Ethernet TCP/IP; Terminal block 8I / 8O; Laser Safety Dedicated I/O; RS232; USB

Ethernet TCP/IP; Terminal block 8I / 8O; Laser Safety Dedicated I/O; RS232; USB

Laser safety classification

Class 4

Class 4

Fieldbus

PROFINET or ETHERNET IP

PROFINET or ETHERNET IP

Power consumption rate

400 W (700 W Max)

400 W (700 W Max)

Operating humidity

10-85%

10-85%

Power supply

100 - 240 V AC

100 - 240 V AC

Marking head weight

8.3 kg (18.3 lbs)

7.5 kg

Control unit weight

F20-F30: 16.6 kg (36.57 lbs)
F50: 20.6 kg (45.415 lbs)

F20E - F30E: 16.6 kg (36.57 lbs)

Marking head cable lenght

3 m – 9.8 Ft (5 m – 16.4 Ft in option)

3 m – 9.8 Ft

Marking head installation direction

All positions

All positions
