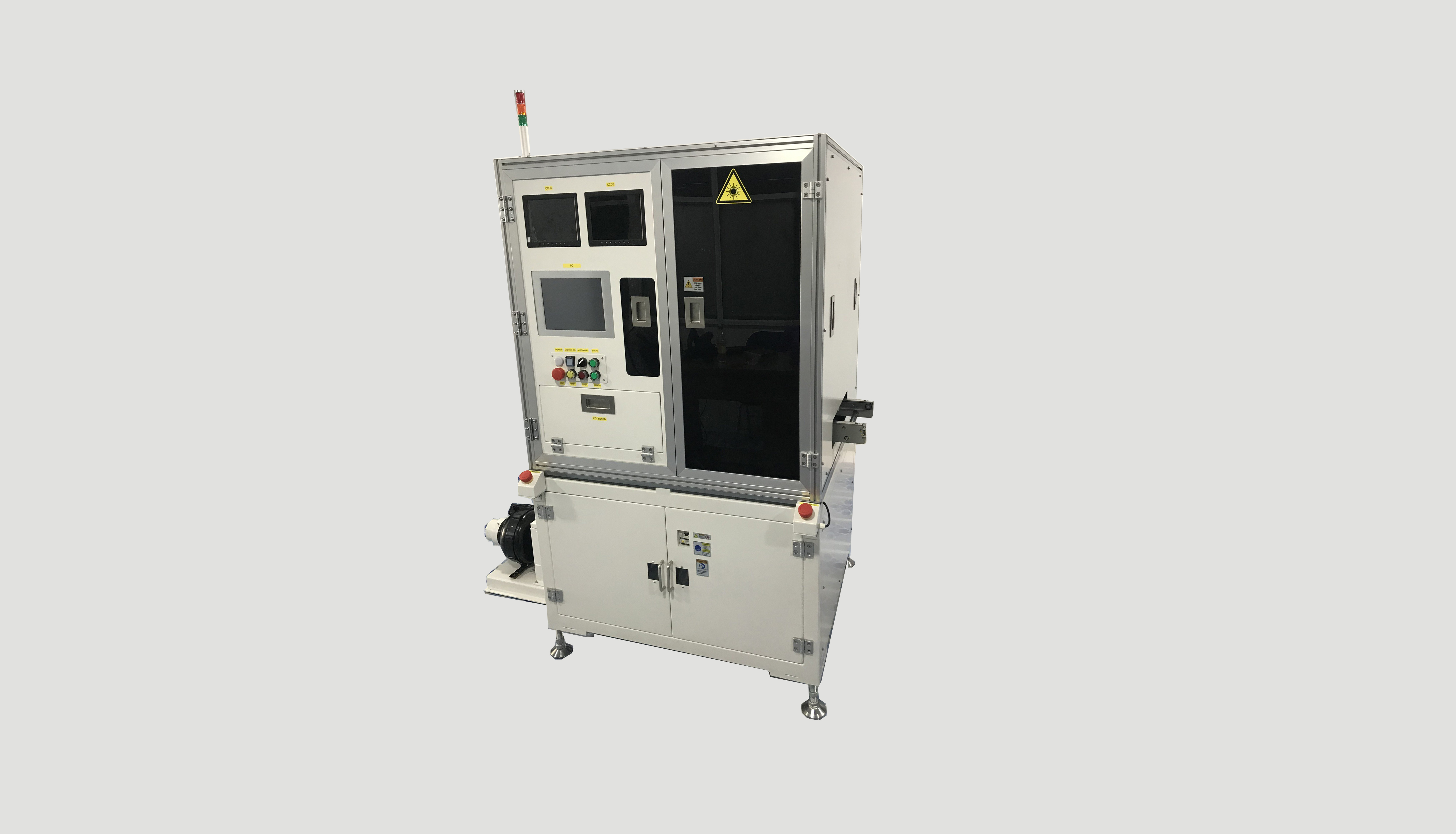

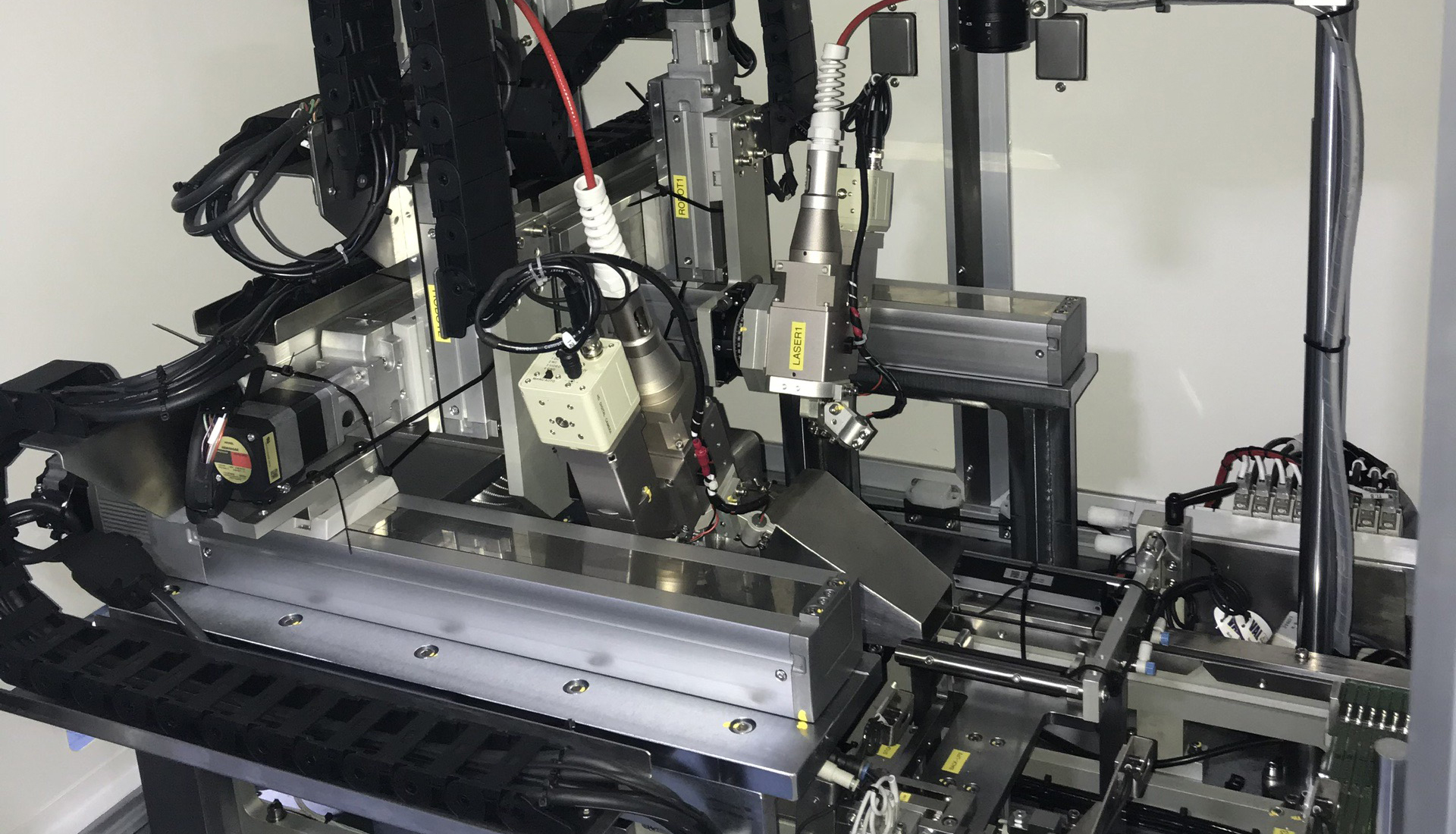

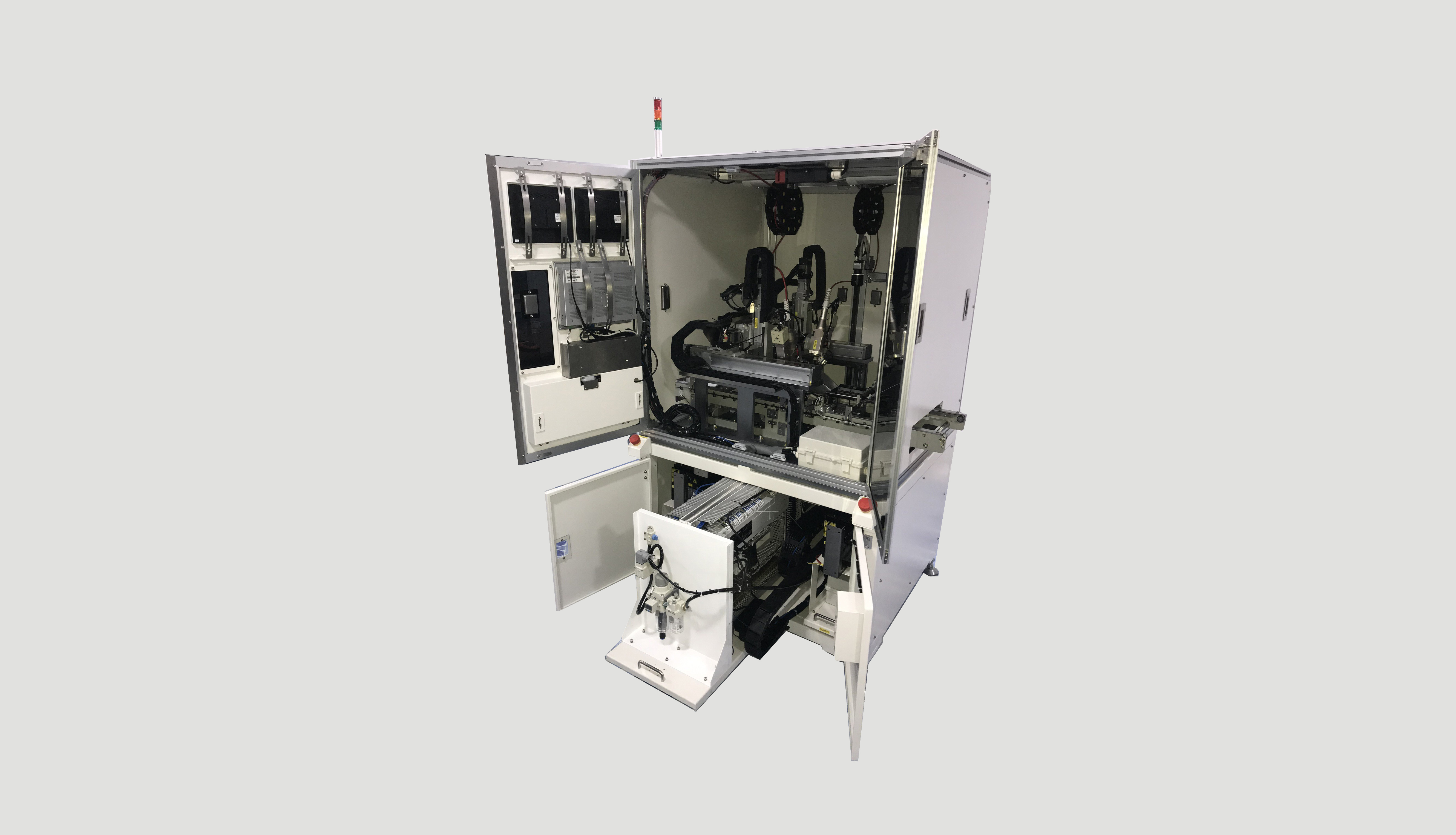

Laser soldering robot system

Technical Information

We provide integrated solutions for automatic laser soldering according to customer requirements.

The key-specifications about the PCB laser soldering system are as follows:

Choose the right laser power for your application: 30W, 50W, 80W, 100W
Ability for automatically soldering with solder paste, solder wire or tin
Allows selection of lens types to create laser profiles to suit your requirements
Integrate with desktop robots, Scara Robot, 6-axis Robot,...
Option built-in monitoring camera
Customize design: Stand-alone soldering system or integrated on the production line
Option to integrate automatic quality inspection system AOI

Item	Specification
Power supply	AC100~240V
Laser	A semiconductor laser
Laser power	50W (options: 30W, 80W, 100W, 200W)
Fiber core diameter	Standard 200μm (options: 60/100/200/400/600μm )
Spot size	Min.: 200μm
Monitoring	CCD coaxial automatic positioning
Soldering material	Soldering wire, pre-tinned and solder paste (optional)
Laser processing format	200200mm (options: 300300/400400/510510/600*600)
Repeatability	Max.: 0.02mm

Please contact us directly for specific advice based on your requirements.

LASER SOLDERING ROBOT SYSTEM - PCB APPLICATION
