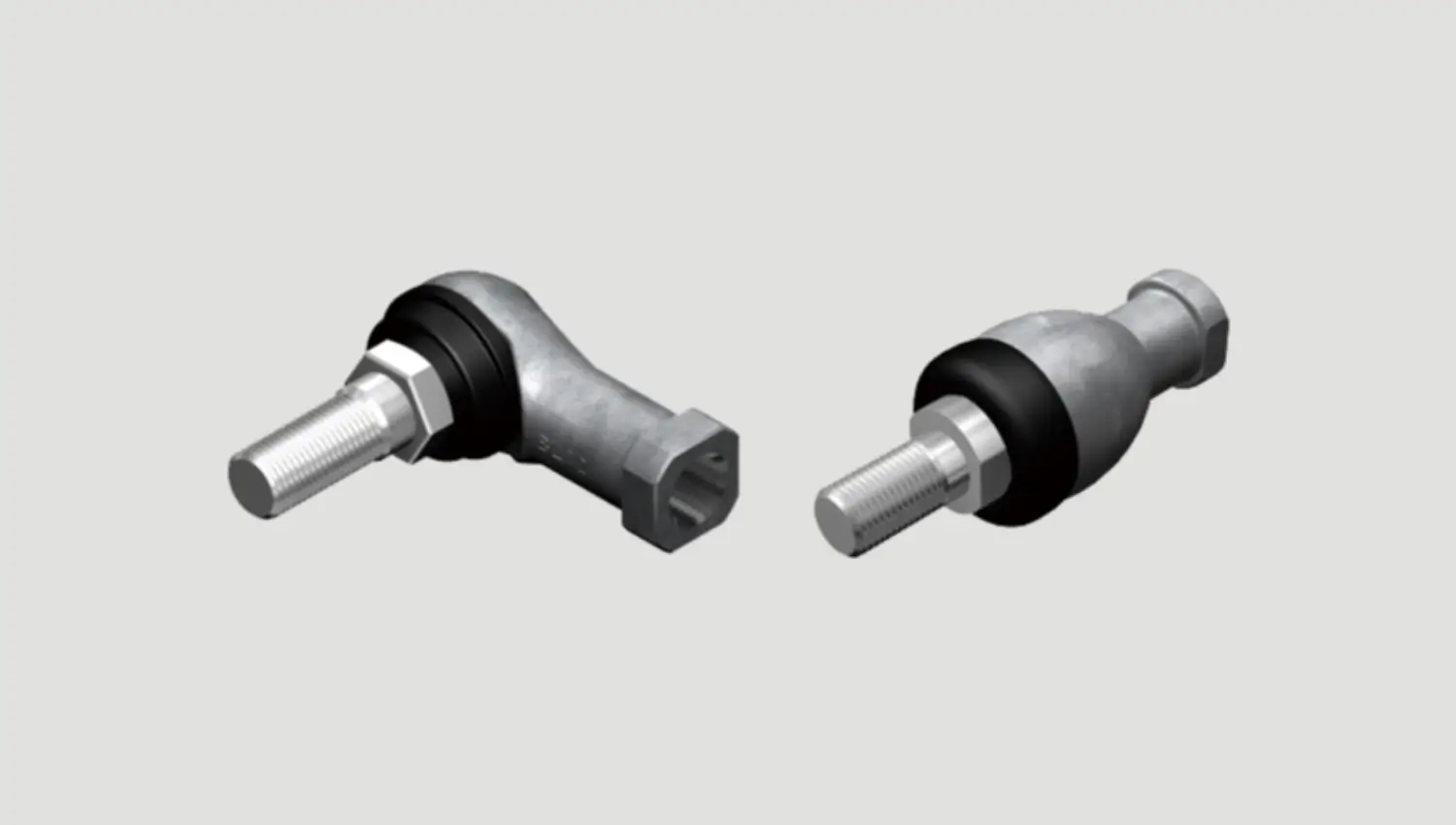

With the Link Ball, a highly accurate bearing steel ball used in the spherical area is first encased in the holder by die cast molding, and then is specially welded with the shank. This unique process enables the mirror surface of the steel ball to be transferred or duplicated on the spherical surface inside the holder to ensure full contact between the ball and the holder. As a result, smooth motion is achieved with a minimum clearance.
Model BL has an adequately firm and yet extremely compact shape because of a highly balanced design. This model is optimal for use in an automobile height sensor or transmission control.
The spherical surface of the shank ball is transferred on the inner surface of the holder while maintaining the sphericity of the bearing steel ball. This allows smooth motion to be achieved with a minimum clearance and provides favorable operability and feel to the link motion.
|
|
|
Model BL-A uses the newly developed high-strength aluminum alloy "A-1 Alloy" (see Alloy ), which is light and highly resistant to wear.
Models BL6 and above and model RBI uses the proven high strength zinc alloy (see High Strength Zinc Alloy ).
 |
 |
The boot contains grease for high lubricity and increased wear resistance.
The hexagonal bolt seat of the shank has the same dimensions as the seating surface for small hexagon head bolts in accordance with automotive specifications. This prevents the seating surface from sinking and ensures a stable link motion mechanism.
Use of a boot with high trackability in the ball shank prevents muddy water from entering the spherical area even in a muddy environment. Accordingly, types equipped with boots are used also in outdoor applications and automobile parts under the chassis. For details, see the muddy water test data (Durability Tests with Link Ball Model BL
"A-1 Alloy," a newly developed high strength aluminum alloy, is an alloy with Al-Zn-Si3 being the main components, is used in the holder of model BL-A. Information on the mechanical properties, physical properties, and wear resistance of materials is presented below.
*The figures shown are target values—these figures are not guaranteed.
|
Tensile strength |
343 to 392 N/mm2 |
|
Tensile yield strength (0.2%) |
245 to 294 N/mm2 |
|
Compressive strength |
490 to 637 N/mm2 |
|
Compressive yield strength (0.2%) |
294 to 343 N/mm2 |
|
Charpy impact |
0.098 to 0.196 N･m/mm2 |
|
Elongation |
2 to 3 % |
|
Hardness |
140 to 160 HV |
|
Specific gravity |
3 |
|
Melting point |
570℃ |
|
Specific heat |
793 J/(kg･k) |
|
Linear expansion rate |
22×10-6 |
The high strength zinc alloy used in the holders of models BL and RBI has been developed as a bearing alloy by mixing Al, Cu, Mg, Be and Ti as well as zinc as the base component. It is excellent in mechanical properties, seizure resistance and wear resistance. Information on mechanical properties, physical properties, and wear resistance is presented below.
*The figures shown are target values—these figures are not guaranteed.
|
Tensile strength |
275 to 314 N/mm2 |
|
Tensile yield strength (0.2%) |
216 to 245 N/mm2 |
|
Compressive strength |
539 to 686 N/mm2 |
|
Compressive yield strength (0.2%) |
294 to 343 N/mm2 |
|
Fatigue strength |
132 N/mm2×107(Schenk bending test) |
|
Charpy impact |
0.098 to 0.49N･m/mm2 |
|
Elongation |
1 to 5 % |
|
Hardness |
120 to 145 HV |
|
Specific gravity |
6.8 |
|
Melting point |
390℃ |
|
Specific heat |
460 J/(kg･k) |
|
Linear expansion rate |
24×10-6 |
The wear resistance of the high strength zinc alloy is superior to that of class-3 brass and class-3 bronze, almost equal to that of class-2 phosphor bronze.
|
Amsler wear-tester |
|
|
Test piece rotation speed |
185 min-1 |
|
Load |
392 N |
|
Lubricant |
Dynamo oil |
Regardless of the shape, the direction of the load applied to the Link Ball is called "axial direction" if it is parallel to the axis of the ball shank, and "radial direction" if it is perpendicular to the axis.
Of the loads applied in the axial direction, the load in the direction of the ball shank being pressed toward the holder is called "pushing load", and the load in the direction of the ball shank being pulled from the holder is called "pulling load."
The following table shows the load application direction of each model. Avoid using the product in a different load application direction. Failure to do so may damage the product.
| Model No. | Axial direction | Radial direction |
|---|---|---|
| Model BL | X | ○ |
| Model BL-A | X | ○ |
| Model RBI | ○ | X |
The tests were conducted to identify the performance difference between THK Link Ball model BL and an equivalent product of a competitor. As a result, model BL has been used in joints for transmission control units of automobiles, trucks and buses and for steering mechanisms of agricultural tractors.
As a result of comparing THK Link Ball model BL10D and a competitor’s product in representative durability tests, it is demonstrated that model BL10D is superior in strength and wear resistance of the holder and sealability of the boot.These features are achieved through THK’s unique manufacturing process for the holder and the shank, the material used, the structure of upper and lower grease pockets on the spherical area and the development of a highly sealable boot.
