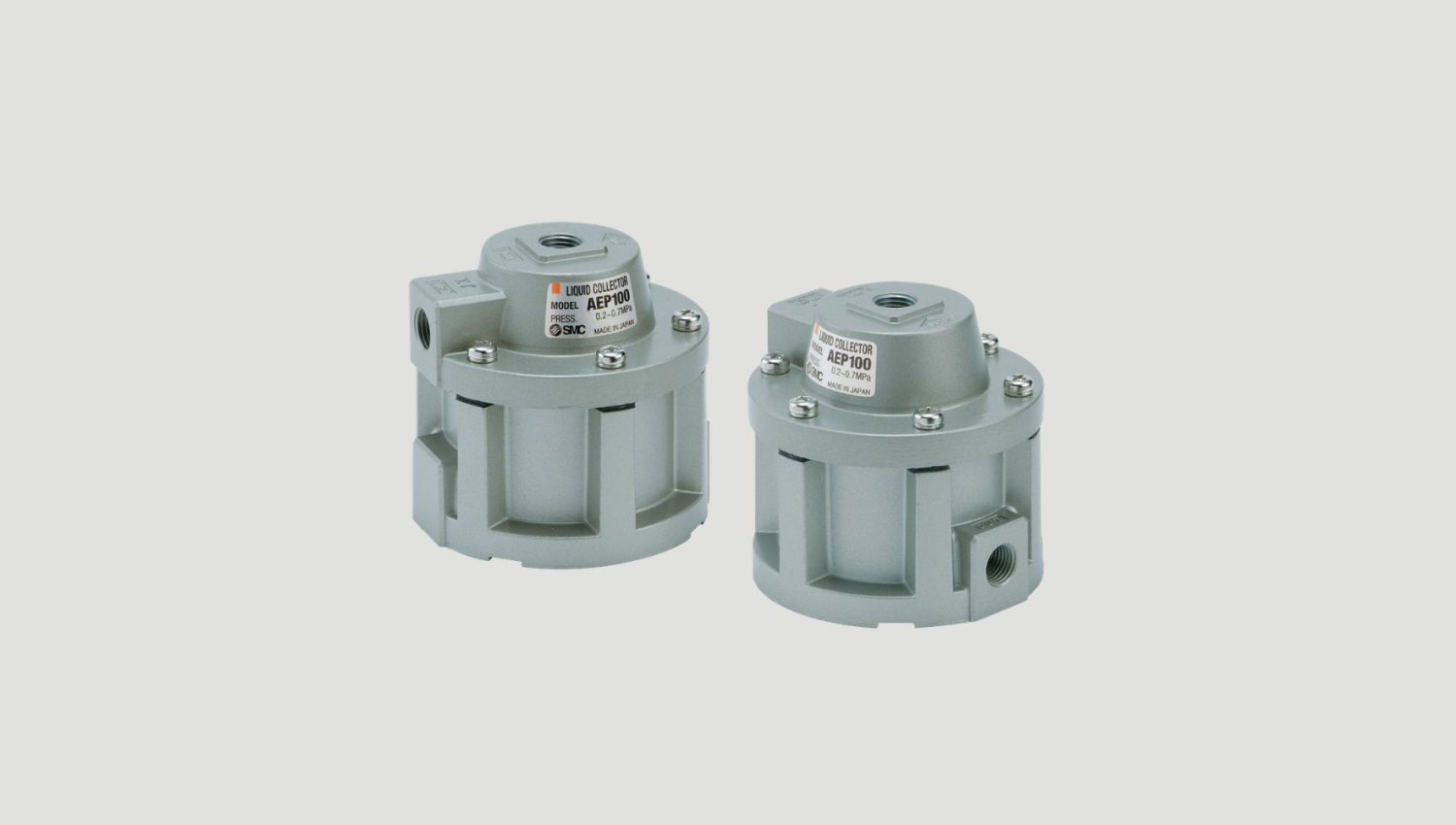

LIQUID COLLECTOR/EXHAUST PRESSURE TYPE SMC AEP100

Liquid Collector Exhaust Pressure Type SMC AEP100

Technical Information

Model  AEP100-02
Collected fluid Hydraulic fluid/Lubricant
Fluid Air
Operating pressure 200 to 700 kPa (0.2 to 0.7 MPa)
Fluid temperature 5 to 60°C
Collected fluid temperature 5 to 60°C
Collected fluid discharge volume 10 mL/one time (at 0.5 MPa)
Collected fluid lifting range 8 m (at 0.5 MPa)
Exhaust port effective area 21 mm2
Port size 3-PT 1/4
Filtration 40 mesh (Gauze)
Weight 0.8 kg
