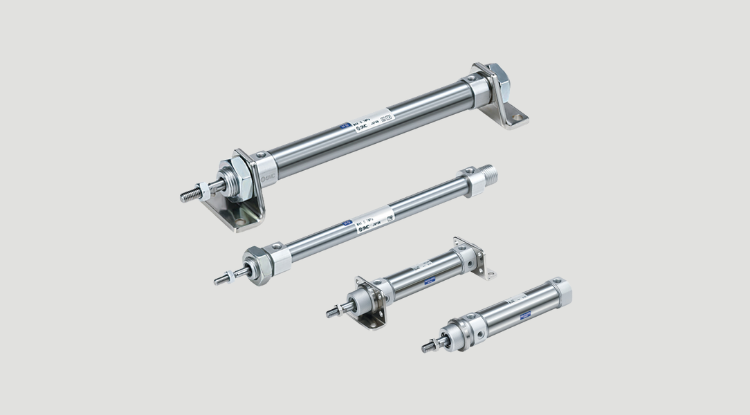

LONGER LIFE CYLINDER C85 C75-XB24

Longer Life Cylinder Double Acting, Single Rod SMC C75, C85-XB24

Technical Information

Type Series Action Bore size (mm)
Longer life C85-XB24 Double acting
Single rod		 8，10，12，16，20，25
Longer life C75-XB24 Double acting
Single rod		 32，40
Specifications C85
Bore size [mm] 8 10 12 16 20 25
Type Pneumatic
Action Double acting, Single rod
Fluid Air
Proof pressure 1.5 MPa
Max. operating pressure 1.0 MPa
Min. operating
pressure		 0.1 MPa 0.08 MPa 0.05 MPa
Ambient and fluid
temperature		 Without auto switch: –20°C to 80°C (No freezing)
With auto switch: –10°C to 60°C (No freezing)
Lubricant Not required (Non-lube)
Stroke length tolerance +1.0 +1.4
Piston speed 50 to 1500 mm/s
Cushion Rubber bumper
- Air cushion
Allowable
kinetic energy		 0.02 J  0.03 J  0.04 J  0.09 J  0.27 J  0.4 J
