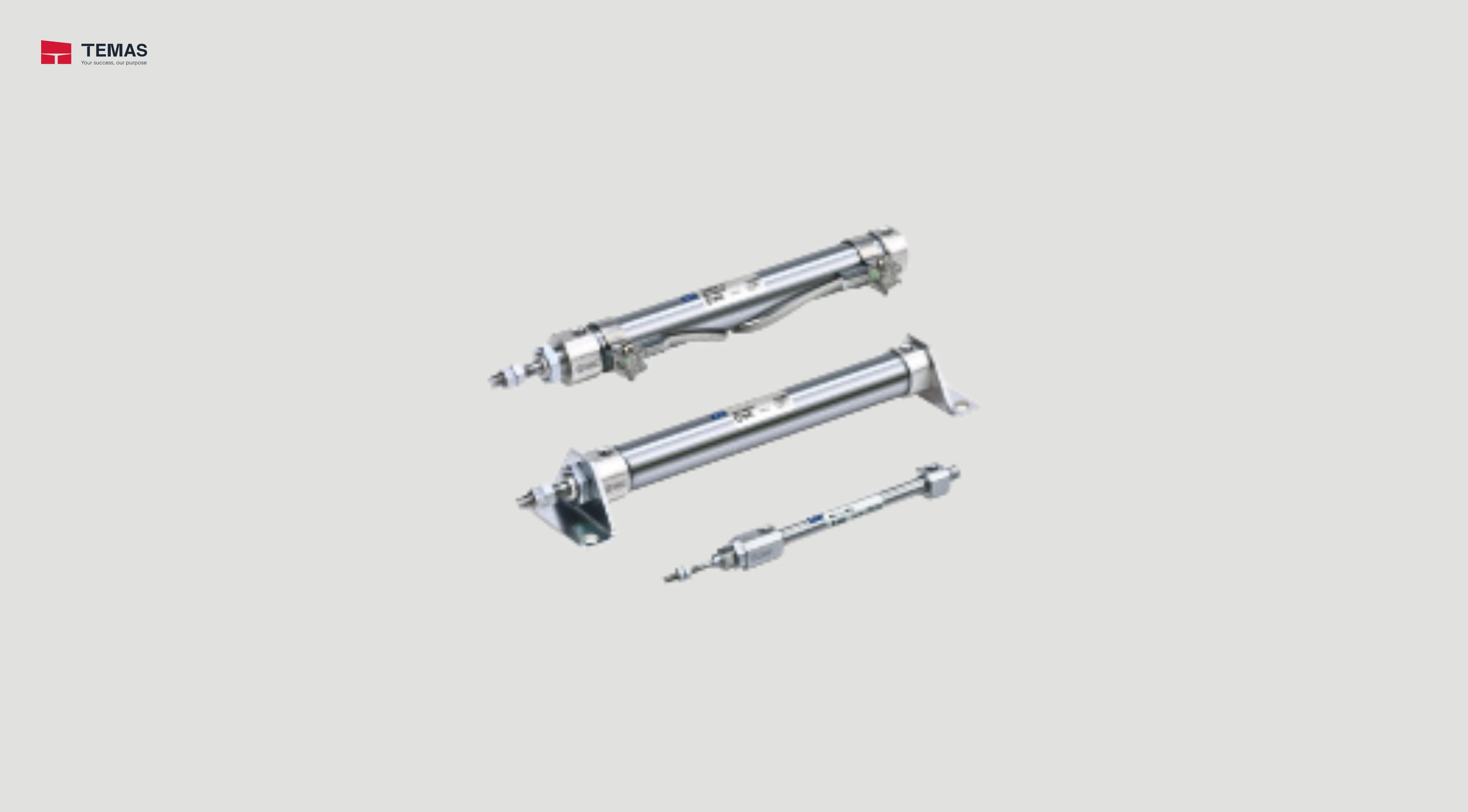

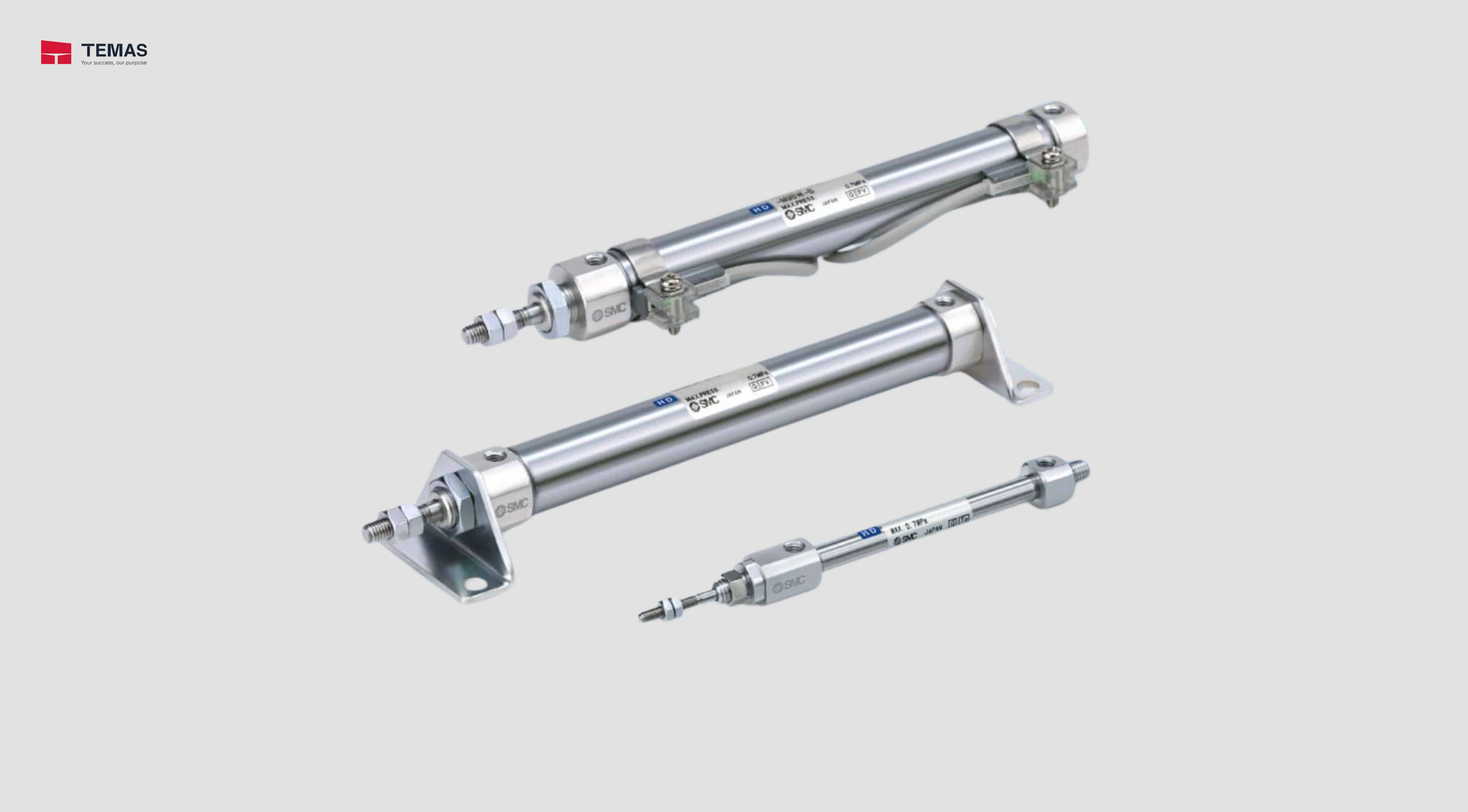

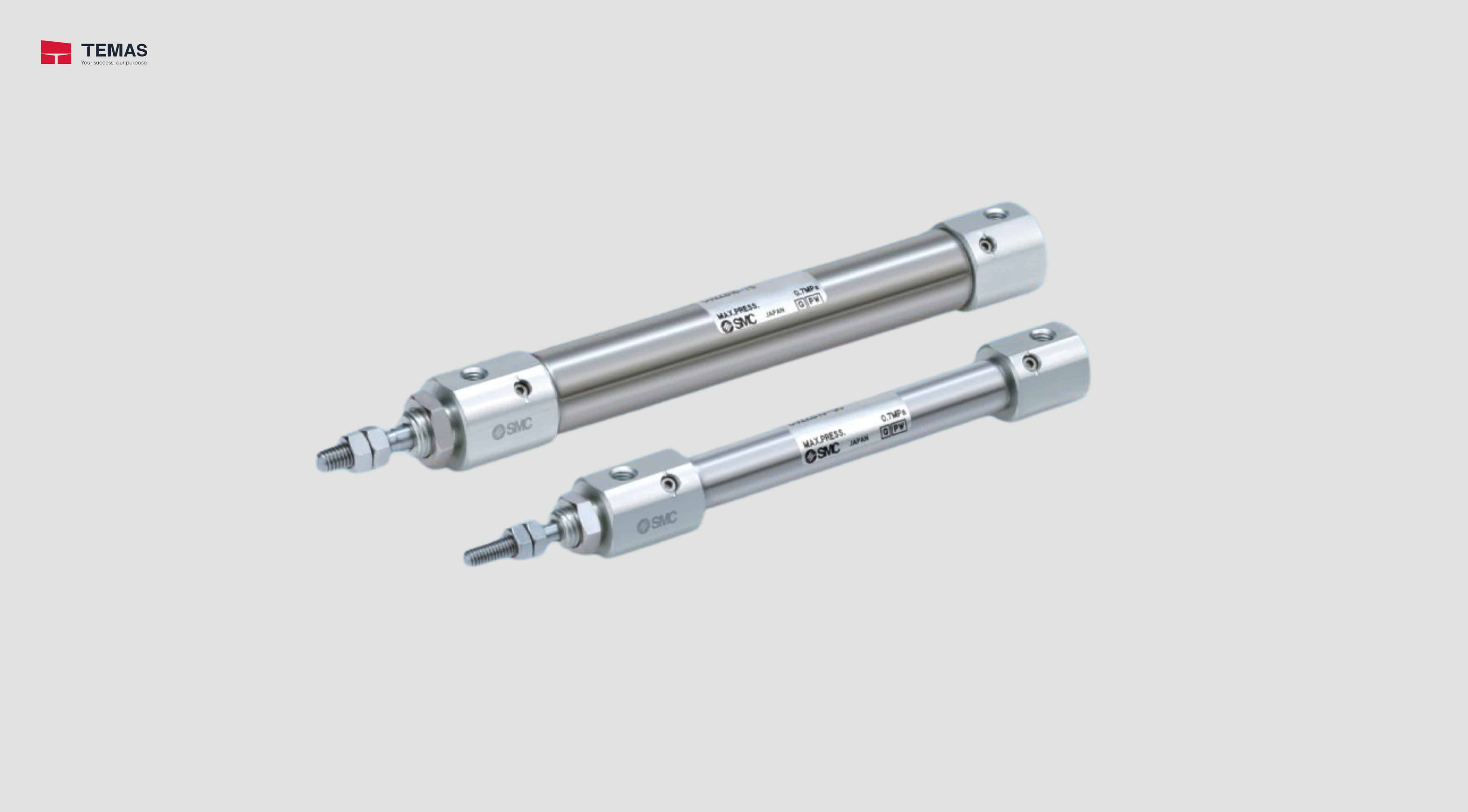

LONGER LIFE CYLINDER CJ2-XB24

Longer Life Cylinder Double Acting, Single Rod CJ2-XB24 ø6, ø10, ø16

Technical Information

Type Series Action Bore size (mm)
Longer life CJ2-XB24 Double acting, Single rod 6, 10, 16
Specifications
 CJ2-XB24
Bore size (mm) 6 10 16
Action Double acting, Single rod
Fluid Air
Proof pressure 1 MPa
Max. operating pressure 10.7 MPa
Min. operating pressure 0.12 MPa 0.06 MPa
Ambient and fluid temperatures

Without auto switch: −10°C to 70°C (No freezing)

With auto switch: −10°C to 60°C
Cushion Rubber bumper
Lubrication Not required (Non-lube)
Piston speed 50 to 750 mm/s
Allowable kinetic energy 0.012 J 0.035 J 0.090 J
Stroke length tolerance

+1.0

0
