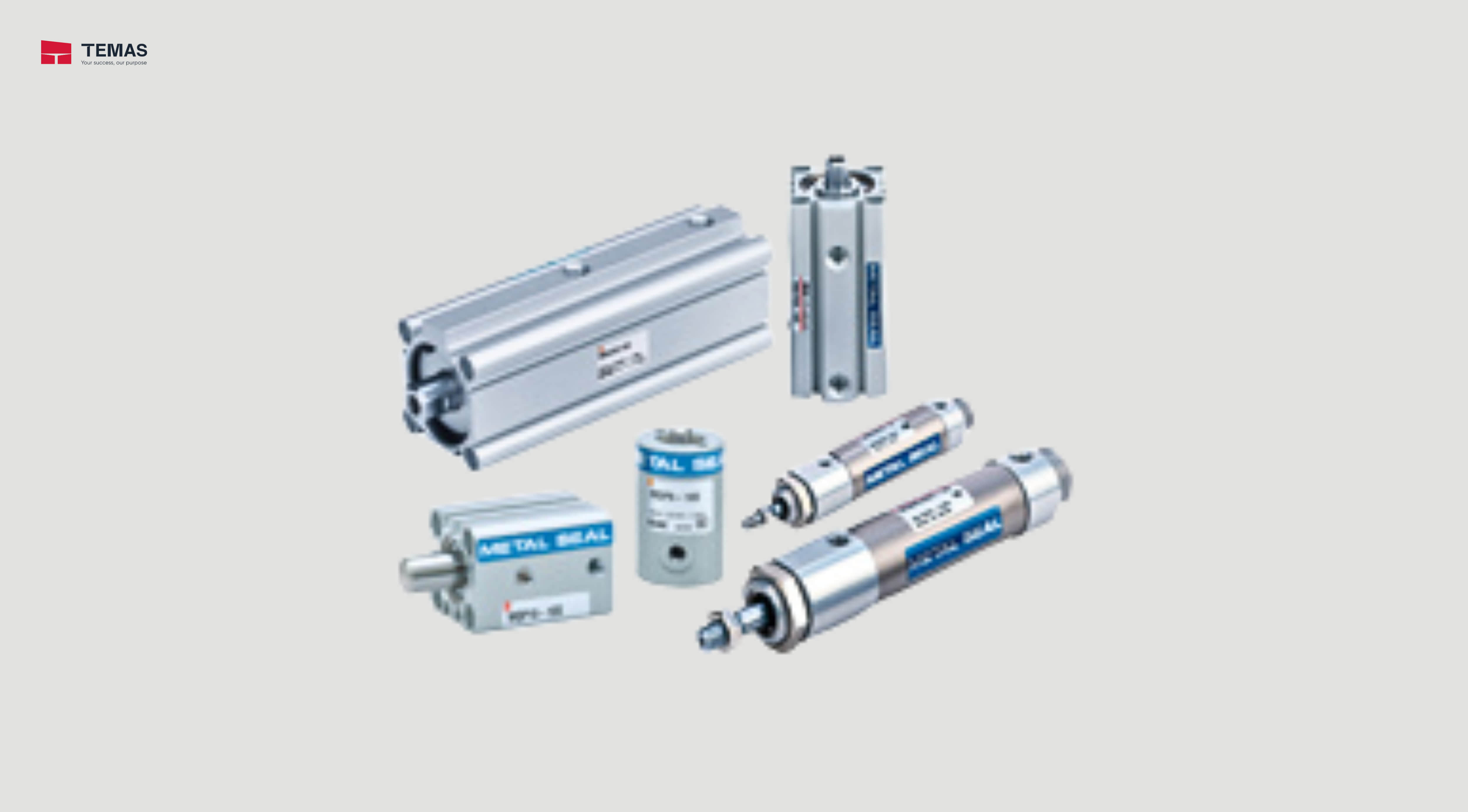

| Type | Series | Bore size （mm） |
Operating Pressure range （MPa） |
Driving speed （mm/s） |
|---|---|---|---|---|
| Standard | MQQT | 10，16，20，25，30，40 | 0.005 to 0.5 | 0.3 to 300 |
| Anti-lateral load | MQQL | 10，16，20，25，30，40 | 0.005 to 0.7 | 0.5 to 500 |
| Anti-lateral load | MQML | 6 | 0.02 to 0.7 | 0.5 to 1000 |
| Anti-lateral load | MQML | 10，16，20，25 | 0.005 to 0.7 | 0.5 to 1000 |
| High speed/High frequency | MQML--H | 10，16，20，25 | 0.01 to 0.7 | 5 to 3000 |
| Single acting | MQP | 4，6，10，16，20 | 0.001 to 0.7 | - |
| Specifications | MQQ | ||||||
|---|---|---|---|---|---|---|---|
| Bore size (mm) | 10 | 16 | 20 | 25 | 30 | 40 | |
| Seal construction | Metal seal | ||||||
| Action | Double acting, Single rod | ||||||
| Fluid | Air | ||||||
| Proof pressure | 1.05 MPa | ||||||
| Maximum operating pressure | 0.5 MPa | ||||||
| Minimum operating pressure | 0.005 MPa | ||||||
| Ambient and fluid temperature | –10 to 80°C | ||||||
| Cushion | Rubber bumper (Standard) | ||||||
| Lubrication | Not required (Non-lube) | ||||||
| Rod end thread | Female thread | ||||||
| Stroke length tolerance | +1.0 mm | ||||||
| Piston speed | 0.3 to 300 mm/s (Refer to page 354.) | ||||||
| Total leakage |
Supply pressure 0.1 MPa | 150 cm3/min | 200 cm3/min | 300 cm3/min | 400 cm3/min | ||
| Supply pressure 0.3 MPa | 800 cm3/min | 1000 cm3/min | 1200 cm3/min | 1600 cm3/min | |||
| Supply pressure 0.5 MPa | 1500 cm3/min | 2000 cm3/min | 3000 cm3/min | 4000 cm3/min | |||
