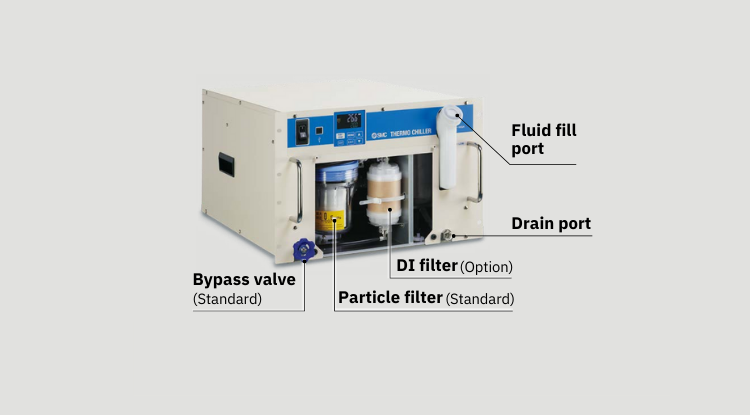

 HRRF Series/Temas-SMC-Refrigerant Chiller HRRF-1.png)

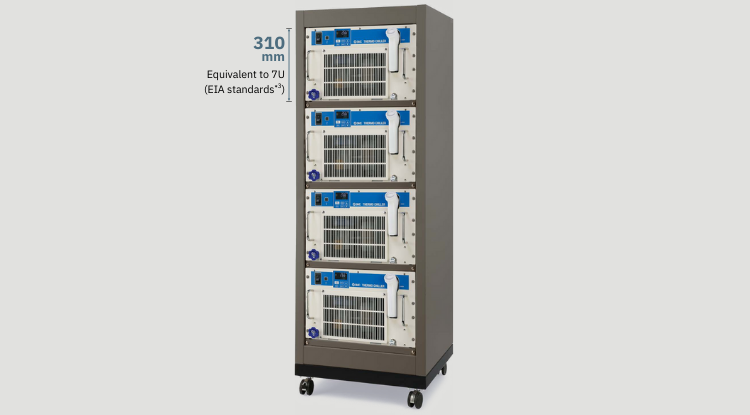

 HRRF Series/Temas-SMC-Refrigerant Chiller HRRF-2.png)

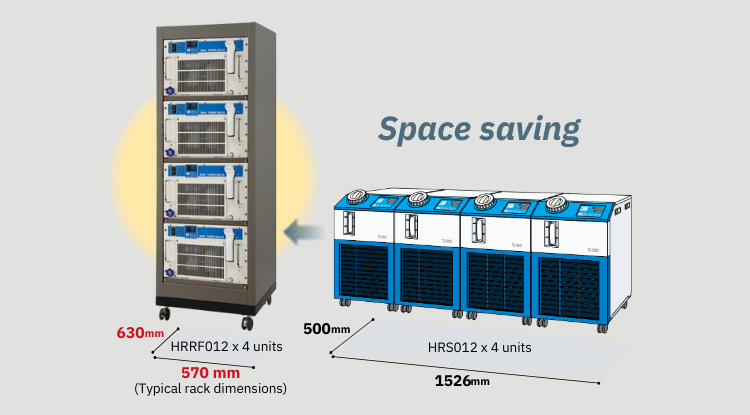

 HRRF Series/Temas-SMC-Refrigerant Chiller HRRF-3.png)
| Model | Air-cooled Refrigeration | Water-cooled Refrigeration | |||
| HRRF012-A-20 | HRRF018-A-20 | HRRF012-A-20 | HRRF018-A-20 | ||
| Cooling method | Air-cooled refrigeration | Water-cooled refrigeration | |||
| Refrigerant | R454C (HFO/HFC, GWP: 146) | ||||
| Refrigerant charge [kg] | 0.30 | 0.22 | |||
| Weight [kg] | 45 | ||||
| Control method | PID control | ||||
| Ambient temperature/Humidity/Altitude | Temperature: 5 to 40°C, Humidity: 30 to 70%, Altitude: less than 3000 m | ||||
| Circulating fluid system | Circulating fluid | Tap water, 15% ethylene glycol aqueous solution | |||
| Set temperature range [°C] | 5 to 35 | ||||
| Cooling capacity (50/60 Hz) [W] | 1000/1200 | 1600/1800 | 1000/1200 | 1600/1800 | |
| Heating capacity (50/60 Hz) [W] | 450/500 | ||||
| Temperature stability [°C] | ±0.1 | ||||
| Pump capacity (50/60 Hz) [MPa] | 0.13 (at 7 L/min)/0.18 (at 7 L/min) For Option T: 0.42 (at 10 L/min)/0.4 (at 14 L/min) For Option MT: 0.32 (at 10 L/min)/0.32 (at 14 L/min) For Option T1: 0.28 (at 10 L/min)/0.28 (at 10 L/min) |
||||
| Rated flow (50/60 Hz) [L/min] | 7/7 For Options T, MT: 10/14, For Option T1: 10/10 | ||||
| Flow display range [L/min] | 2 to 16 | ||||
| Electric conductivity display range [μS/cm] | 0.1 to 48 (Only for Option DM) | ||||
| Electric conductivity setting range [μS/cm] | 0.5 to 45 (Only for Option DM) | ||||
| Particle filter nominal filtration rating [μm] | 5 | ||||
| Bypass valve | Installed | ||||
| Tank capacity [L] | Approx. 4 | ||||
| Outlet, Return port size | Rc1/2 | ||||
| Drain port size | Rc1/4, With cap | ||||
| Leakage protection | Drain pan (With water leakage sensor) | ||||
| Fluid contact material | Stainless steel, Copper (Heat exchanger brazing), Brass∗16, SiC, Alumina ceramic, Carbon, PP, PE, POM, PA, FKM, EPDM, PVC, PPS, AS, Fluoropolymer, Ion exchange resin |
||||
| Facility water system | Temperature range [°C] | - | 5 to 40 | ||
| Pressure range [MPa] | 0.3 to 0.5 | ||||
| Required flow rate (50/60 Hz) [L/min] | 8 | 12 | |||
| Inlet-outlet pressure differential of facility water [MPa] | 0.3 or more | ||||
| Port size | Rc3/8 | ||||
| Fluid contact material | Stainless steel, Copper (Heat exchanger brazing), Bronze, Brass, NBR, EPDM | ||||
| Electrical system | Power supply | Single-phase 200 to 230 VAC, 50/60 Hz, Allowable voltage range ±10% | |||
| Circuit protector [A] | 10 For Options T, MT, T1: 15 | ||||
| Applicable earth leakage breaker capacity | Rated current: 10 A For Options T, MT, T1: 15 A Sensitivity current: 30 mA |
||||
| Cable quantity x Size (Including grounding cable) | 3 cores x 14 AWG (3 cores x 2.0 mm2) | ||||
 HRRF Series/Mainphoto-Temas-SMC-Refrigerant Chiller HRRF.png)
